How to Use Rasberry Pi5: Examples, Pinouts, and Specs

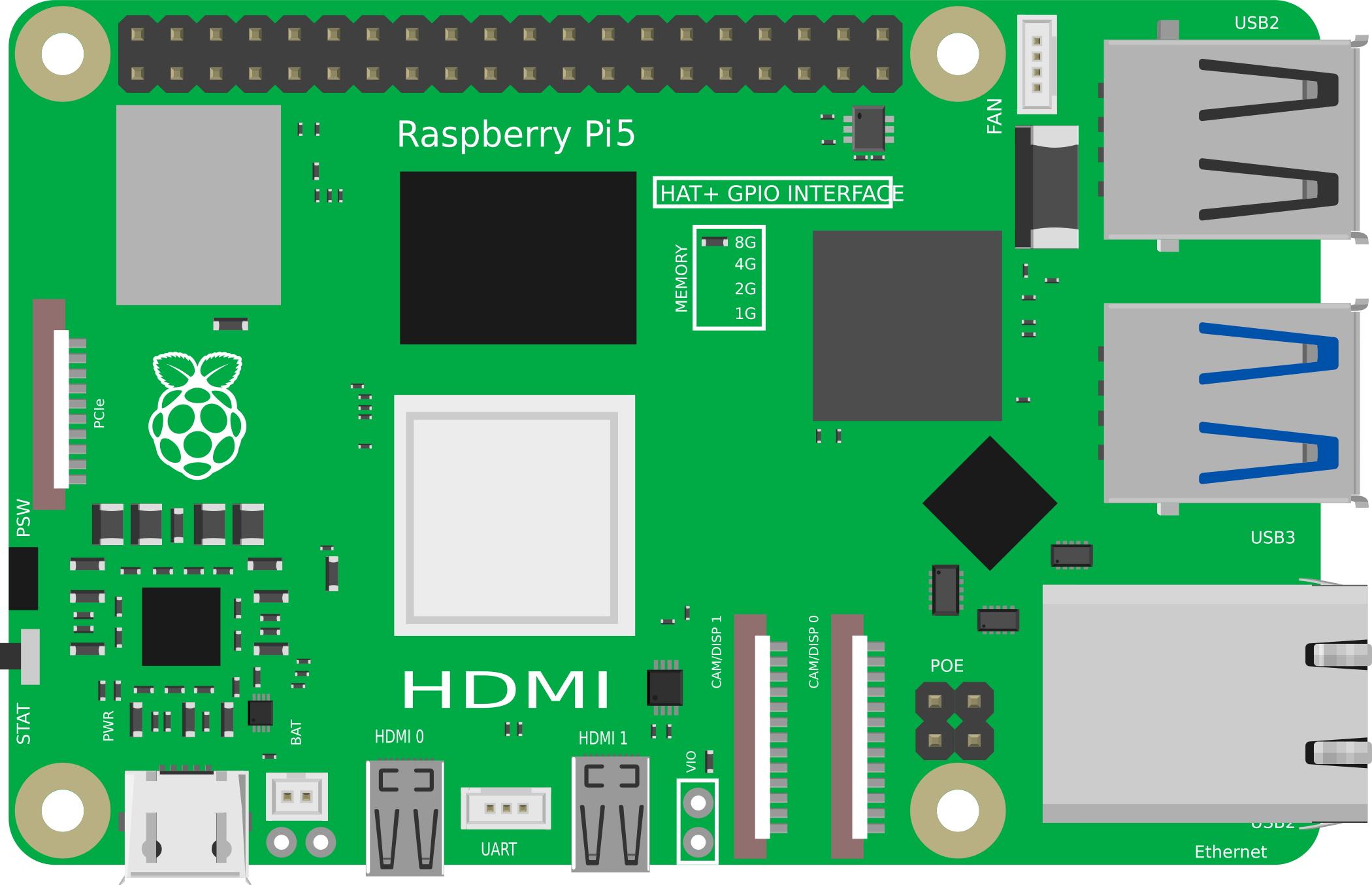

Image of Rasberry Pi5
Cirkit Designer LogoDesign with Rasberry Pi5 in Cirkit Designer

Introduction

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, multiple USB ports, HDMI output, and GPIO pins, making it a versatile tool for programming, robotics, IoT, and other electronic projects. Its small form factor and robust capabilities make it an excellent choice for both beginners and experienced developers.

Explore Projects Built with Rasberry Pi5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 5-Based Project with Custom Comments
Image of Raspberry Pi 5: A project utilizing Rasberry Pi5 in a practical application
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
Image of Senior Design: A project utilizing Rasberry Pi5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Camera System
Image of Camera surveillance raspberry: A project utilizing Rasberry Pi5 in a practical application
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
Image of dash cam: A project utilizing Rasberry Pi5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Rasberry Pi5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5-Based Project with Custom Comments
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Senior Design: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Camera surveillance raspberry: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5 Camera System
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dash cam: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
  • Robotics: Used as the brain of robots for controlling motors, sensors, and other peripherals.
  • IoT Projects: Acts as a hub for connecting and managing IoT devices.
  • Media Centers: Can be configured as a media center for streaming and playing multimedia content.
  • Home Automation: Powers smart home systems for controlling lights, appliances, and security devices.

Technical Specifications

The Raspberry Pi 5 offers a range of features and capabilities that make it suitable for various applications. Below are its key technical specifications:

General Specifications

Feature Specification
Processor Quad-core ARM Cortex-A76, 2.4 GHz
GPU VideoCore VII
RAM Options 4GB, 8GB LPDDR4X
Storage MicroSD card slot, USB 3.0 for external drives
Connectivity Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
USB Ports 2x USB 3.0, 2x USB 2.0
HDMI Output Dual micro-HDMI ports, 4K@60Hz support
GPIO Pins 40-pin header
Power Supply USB-C, 5V/5A
Dimensions 85.6mm x 56.5mm x 17mm

GPIO Pin Configuration

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external components. Below is the pinout configuration:

Pin Number Pin Name Functionality
1 3.3V Power Power supply
2 5V Power Power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power Power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground
10 GPIO15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 5 in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/5A USB-C power adapter to power the board.
  2. Connecting Peripherals: Attach a monitor via the micro-HDMI port, a keyboard and mouse via USB, and a microSD card with the operating system installed.
  3. Using GPIO Pins: Connect external components like LEDs, sensors, or motors to the GPIO pins. Ensure proper voltage levels to avoid damage.
  4. Networking: Connect to the internet via Ethernet or Wi-Fi for remote access and updates.

Important Considerations and Best Practices

  • Heat Management: Use a heatsink or fan to prevent overheating during intensive tasks.
  • Static Protection: Handle the board with care to avoid static discharge, which can damage components.
  • Power Supply: Always use a reliable power adapter to ensure stable operation.
  • Software Updates: Regularly update the operating system and firmware for optimal performance and security.

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import necessary libraries

import RPi.GPIO as GPIO # Library for GPIO control import time # Library for adding delays

Pin configuration

LED_PIN = 17 # GPIO pin where the LED is connected

GPIO setup

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(LED_PIN, GPIO.OUT) # Set the pin as an output

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Notes:

  • Ensure the LED is connected in series with a resistor (e.g., 330Ω) to limit current.
  • Use the GPIO.cleanup() function to reset GPIO settings when the program exits.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system image.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to dissipate heat.
    • Avoid running resource-intensive tasks for extended periods without proper cooling.
  3. No display on the monitor:

    • Verify the HDMI cable connection and ensure the monitor is powered on.
    • Check the configuration file (config.txt) on the microSD card for display settings.
  4. GPIO pins not working:

    • Ensure the correct pin numbering mode (BCM or BOARD) is used in the code.
    • Check for loose connections or damaged components.

FAQs

  • Can I power the Raspberry Pi 5 via GPIO pins? Yes, you can power the board using the 5V and GND pins, but this is not recommended as it bypasses the onboard power management.

  • What operating systems are supported? The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

  • Can I use the Raspberry Pi 5 for AI/ML projects? Yes, the Raspberry Pi 5's powerful processor and GPU make it suitable for lightweight AI/ML tasks.

  • How do I reset the Raspberry Pi 5? You can reset the board by disconnecting and reconnecting the power supply.

By following this documentation, you can effectively utilize the Raspberry Pi 5 for a variety of projects and applications.
