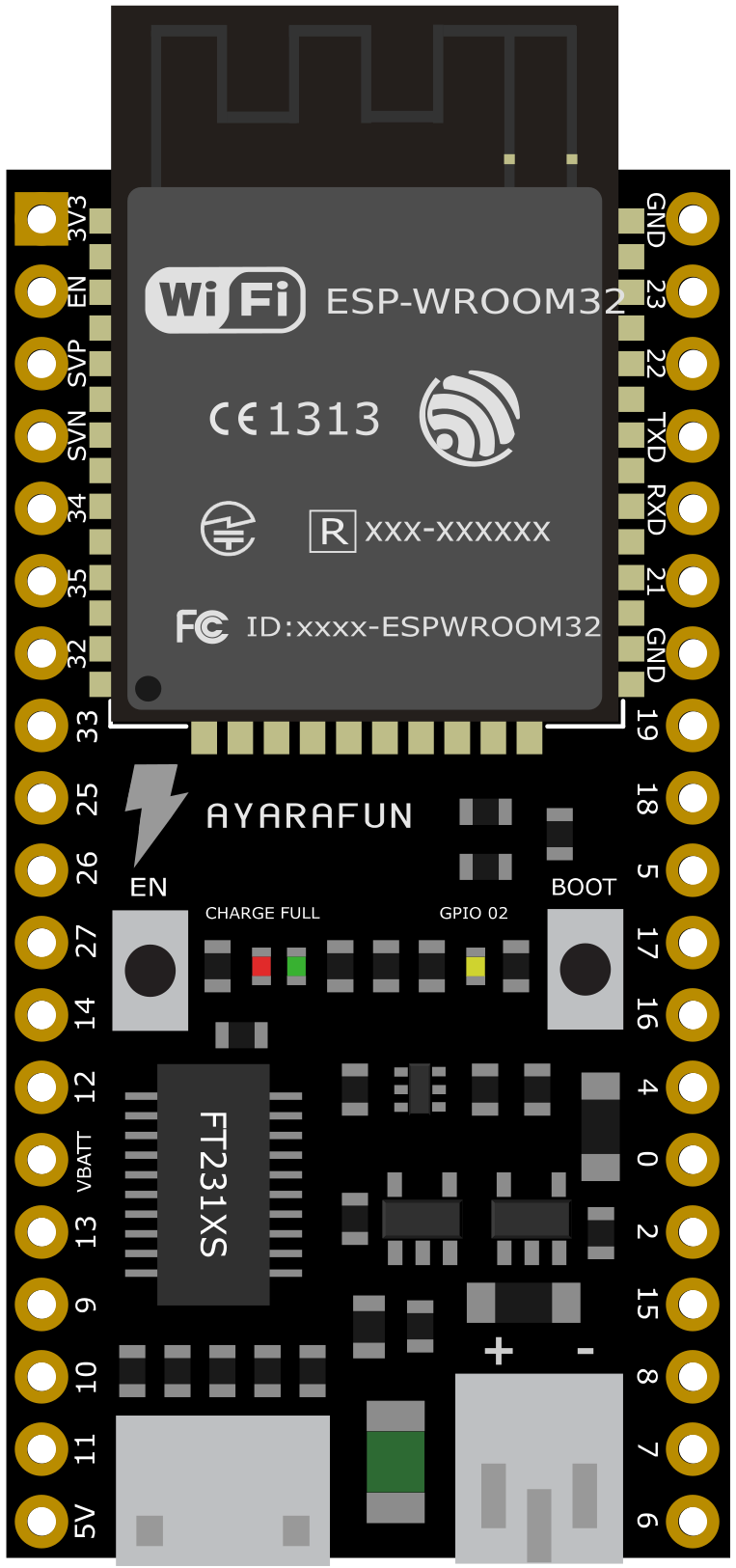

How to Use NODEMCU-32S : Examples, Pinouts, and Specs

The NODEMCU-32S is a low-cost, open-source IoT platform built around the powerful ESP32 microcontroller. It is designed for rapid prototyping and development of IoT applications, offering integrated Wi-Fi and Bluetooth capabilities. The module features multiple GPIO pins for interfacing with sensors, actuators, and other peripherals, as well as a USB interface for programming and power supply. Its compact design and robust functionality make it a popular choice for hobbyists, students, and professionals alike.

• Home automation systems
• Wireless sensor networks
• IoT-enabled devices
• Robotics and automation
• Wearable technology
• Data logging and monitoring systems

The NODEMCU-32S is based on the ESP32 microcontroller, which provides a rich set of features for IoT applications. Below are the key technical specifications:

The NODEMCU-32S has a total of 30 GPIO pins, which can be configured for various functions. Below is a summary of the pin configuration:

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin functionality.

1. Powering the Module:

   • Connect the NODEMCU-32S to your computer via a Micro-USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.

2. Programming the Module:

   • Install the Arduino IDE and add the ESP32 board support package.
   • Select "NodeMCU-32S" as the board in the Arduino IDE.
   • Write your code and upload it to the module via the USB interface.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other devices.
   • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the NODEMCU-32S.

Below is an example of how to blink an LED connected to GPIO2 of the NODEMCU-32S:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

• Avoid connecting 5V logic devices directly to the GPIO pins, as they operate at 3.3V.
• Use pull-up or pull-down resistors where necessary to stabilize input signals.
• Be cautious of GPIO pins that are used during boot (e.g., GPIO0, GPIO2, GPIO15) to avoid boot issues.
• Use a level shifter if interfacing with 5V devices.

1. The module is not detected by the computer.

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for the NODEMCU-32S.

2. Upload fails with a timeout error.

   • Check that the correct COM port is selected in the Arduino IDE.
   • Press and hold the "BOOT" button on the module while uploading the code.

3. Wi-Fi connection fails.

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and operational.

Q: Can I power the NODEMCU-32S with a battery?
A: Yes, you can power the module using a 3.7V LiPo battery connected to the VIN and GND pins. Ensure the battery voltage is regulated to 5V if necessary.

Q: How do I reset the module?
A: Press the "RST" button on the module to perform a hardware reset.

Q: Can I use the NODEMCU-32S with MicroPython?
A: Yes, the NODEMCU-32S supports MicroPython. You can flash the MicroPython firmware to the module and use it for development.

Q: What is the maximum current output of the 3V3 pin?
A: The 3V3 pin can supply up to 500 mA, depending on the power source.

By following this documentation, you can effectively use the NODEMCU-32S for your IoT projects and troubleshoot common issues with ease.
