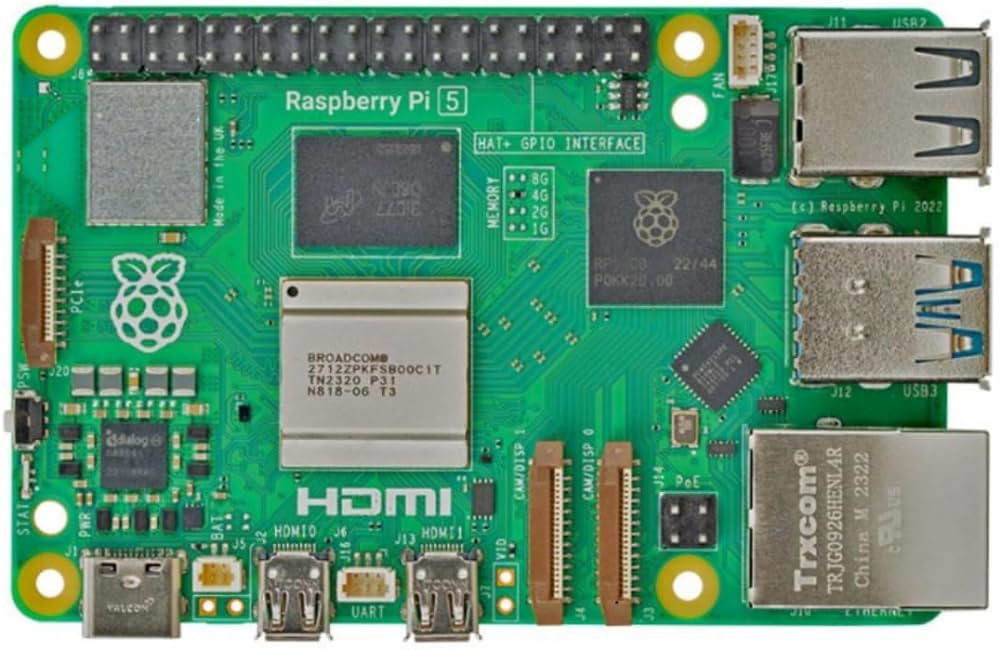

Image of Raspberry Pi 5
Cirkit Designer LogoDesign with Raspberry Pi 5 in Cirkit Designer

Introduction

The Raspberry Pi 5, manufactured by Raspberry, is a compact and affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, multiple USB ports, HDMI output, and GPIO pins, making it a versatile tool for programming, robotics, IoT, and other electronic projects. Its small form factor and robust capabilities make it an excellent choice for both beginners and experienced developers.

Explore Projects Built with Raspberry Pi 5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 5-Based Project with Custom Comments
Image of Raspberry Pi 5: A project utilizing Raspberry Pi 5 in a practical application
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Camera System
Image of Camera surveillance raspberry: A project utilizing Raspberry Pi 5 in a practical application
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
Image of Senior Design: A project utilizing Raspberry Pi 5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
Image of dash cam: A project utilizing Raspberry Pi 5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5-Based Project with Custom Comments
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Camera surveillance raspberry: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Camera System
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Senior Design: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dash cam: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
  • IoT Projects: Acts as a hub for connecting and controlling IoT devices.
  • Robotics: Used for controlling motors, sensors, and other robotic components.
  • Media Centers: Can be configured as a media streaming device using software like Kodi.
  • Home Automation: Powers smart home systems and automation projects.
  • Prototyping: Serves as a platform for testing and developing electronic circuits.

Technical Specifications

The Raspberry Pi 5 is packed with features that make it a powerful and flexible computing platform. Below are its key technical specifications:

General Specifications

Feature Specification
Processor Quad-core ARM Cortex-A76, 2.4 GHz
GPU VideoCore VII
RAM Options 4GB, 8GB LPDDR4
Storage MicroSD card slot, USB 3.0 storage support
Connectivity Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
USB Ports 2x USB 3.0, 2x USB 2.0
HDMI Output 2x micro-HDMI ports, 4K@60Hz support
GPIO Pins 40-pin header
Power Supply USB-C, 5V/5A
Dimensions 85.6mm x 56.5mm x 17mm

GPIO Pin Configuration

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external components. Below is the pinout:

Pin Number Pin Name Function
1 3.3V Power Power Supply (3.3V)
2 5V Power Power Supply (5V)
3 GPIO 2 (SDA1) I2C Data Line
4 5V Power Power Supply (5V)
5 GPIO 3 (SCL1) I2C Clock Line
6 Ground Ground
7 GPIO 4 General Purpose I/O
8 GPIO 14 (TXD) UART Transmit
9 Ground Ground
10 GPIO 15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO 21 General Purpose I/O

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 5 in a Circuit

  1. Powering the Raspberry Pi 5:

    • Use a USB-C power adapter capable of supplying 5V at 5A.
    • Ensure the power supply is stable to avoid damage to the board.
  2. Connecting Peripherals:

    • Attach a monitor via the micro-HDMI ports.
    • Connect a keyboard and mouse to the USB ports.
    • Insert a microSD card with the Raspberry Pi OS or other compatible operating systems.
  3. Using GPIO Pins:

    • Use the GPIO pins to interface with sensors, LEDs, motors, and other components.
    • Be cautious of voltage levels; GPIO pins operate at 3.3V logic.
  4. Networking:

    • Connect to the internet via Gigabit Ethernet or Wi-Fi 6 for remote access and updates.

Important Considerations and Best Practices

  • Static Protection: Handle the board with care to avoid static discharge, which can damage components.
  • Cooling: Use a heatsink or fan for cooling during intensive tasks to prevent overheating.
  • Software Updates: Regularly update the operating system and firmware for optimal performance and security.
  • GPIO Safety: Avoid shorting GPIO pins or exceeding their voltage/current limits.

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import the GPIO and time libraries

import RPi.GPIO as GPIO import time

Set up GPIO mode and pin

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


**Note**: Connect the LED's anode to GPIO 17 and the cathode to a resistor (330Ω) in series with the ground.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi 5 does not boot:

    • Ensure the microSD card is properly inserted and contains a valid OS image.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid running intensive tasks for extended periods without proper ventilation.
  3. No HDMI Output:

    • Verify the HDMI cable and monitor are functioning.
    • Check the configuration file (config.txt) on the microSD card for display settings.
  4. GPIO Pins Not Working:

    • Ensure the correct pin numbering mode (BCM or BOARD) is used in the code.
    • Check for loose or incorrect connections.

FAQs

  • Can I use the Raspberry Pi 5 for AI/ML projects? Yes, the Raspberry Pi 5's powerful processor and GPU make it suitable for lightweight AI/ML tasks.

  • What operating systems are compatible with the Raspberry Pi 5? The Raspberry Pi OS is recommended, but other Linux-based distributions like Ubuntu and specialized OSes like RetroPie are also supported.

  • How do I reset the Raspberry Pi 5? Disconnect and reconnect the power supply to perform a hard reset.

For additional support, refer to the official Raspberry Pi forums and documentation.
