Introduction

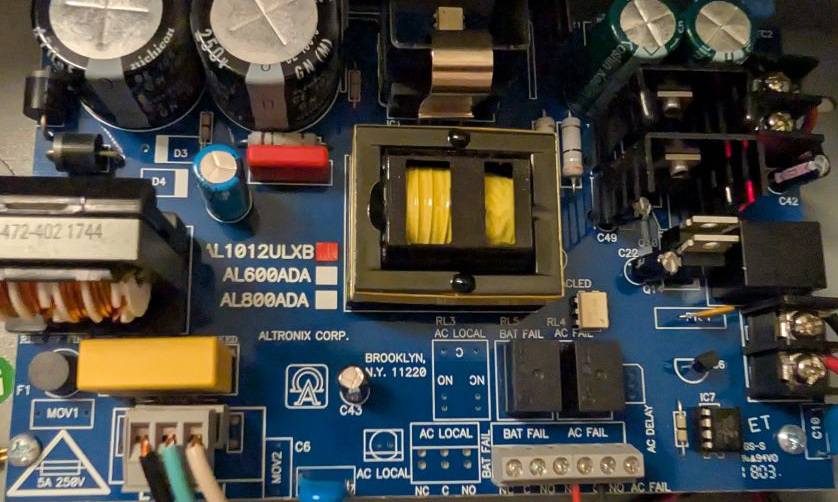

The Altronix AAL1012ULXB is a high-performance power supply charger designed to deliver a regulated 12VDC output at up to 10A. It operates on a 115VAC input and features a single fused output for enhanced safety and reliability. This component is ideal for powering and charging 12VDC devices, including security systems, access control systems, and other low-voltage electronics.

Explore Projects Built with Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Modular Power Distribution System with Multiple SMPS Units and 120V Outlet

This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.

Open Project in Cirkit Designer

12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation

This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.

Open Project in Cirkit Designer

Dual 5V Power Supply Distribution Circuit with Toggle Switch Control

This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.

Open Project in Cirkit Designer

AC to DC Power Supply with Voltage Regulation and Overcurrent Protection

This circuit appears to be a power supply unit with a transformer for stepping down voltage, a bridge rectifier for converting AC to DC, and a voltage regulator for stabilizing the output voltage. It includes a Zener diode for overvoltage protection, capacitors for smoothing out ripples in the DC supply, and a fuse for overcurrent protection. A toggle switch and a rocker switch are used to control the power flow, and there is an LED indicator connected through resistors, likely for power-on indication.

Open Project in Cirkit Designer

Common Applications

• Security and surveillance systems
• Access control systems
• Alarm systems
• General-purpose 12VDC power supply for electronics
• Battery charging for backup power systems

Technical Specifications

Key Technical Details

Pin Configuration and Descriptions

The AAL1012ULXB features terminal blocks for input, output, and battery connections. Below is the pin configuration:

Input Terminal Block

Output Terminal Block

Battery Terminal Block

Usage Instructions

How to Use the Component in a Circuit

1. Input Connection:

   • Connect the 115VAC input to the L (Live), N (Neutral), and G (Ground) terminals of the input terminal block.
   • Ensure proper insulation and secure connections to avoid electrical hazards.

2. Output Connection:

   • Connect the load (e.g., security system, access control device) to the + and - terminals of the output terminal block.
   • Verify that the load does not exceed the 10A current rating.

3. Battery Connection (Optional):

   • Connect a 12V sealed lead-acid battery to the BAT+ and BAT- terminals.
   • This allows the power supply to charge the battery and provide backup power in case of an AC power failure.

4. Power On:

   • After all connections are secure, power on the unit by supplying 115VAC to the input terminals.
   • The power supply will regulate the output voltage to 12VDC and charge the connected battery if applicable.

Important Considerations and Best Practices

• Always ensure the input voltage matches the specified 115VAC rating.
• Use appropriately rated wires for input, output, and battery connections.
• Replace the fuse with a 10A fuse of the same type if it blows.
• Avoid overloading the power supply by connecting devices that exceed the 10A output current rating.
• Ensure proper ventilation around the power supply to prevent overheating.
• If using a battery, periodically check its condition and replace it as needed.

Arduino UNO Integration Example

While the AAL1012ULXB is not directly programmable, it can be used to power an Arduino UNO and its peripherals. Below is an example of how to connect the power supply to an Arduino UNO:

1. Connect the + terminal of the power supply output to the Arduino's VIN pin.
2. Connect the - terminal of the power supply output to the Arduino's GND pin.

Here is a simple Arduino sketch to blink an LED using the power supply:

// This sketch blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered by the AAL1012ULXB power supply.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I use this power supply with a 24VDC device?

   • No, this power supply is designed for 12VDC devices only.

2. What type of battery is compatible with this power supply?

   • It supports 12V sealed lead-acid batteries.

3. How do I know if the fuse is blown?

   • If there is no output voltage and the input connections are correct, check the fuse and replace it if necessary.

4. Can I use this power supply outdoors?

   • No, this power supply is not weatherproof and should only be used in indoor environments.

5. What happens if the load exceeds 10A?

   • The fuse will blow to protect the power supply and connected devices. Replace the fuse after reducing the load.

By following this documentation, users can safely and effectively utilize the Altronix AAL1012ULXB power supply charger in their applications.
