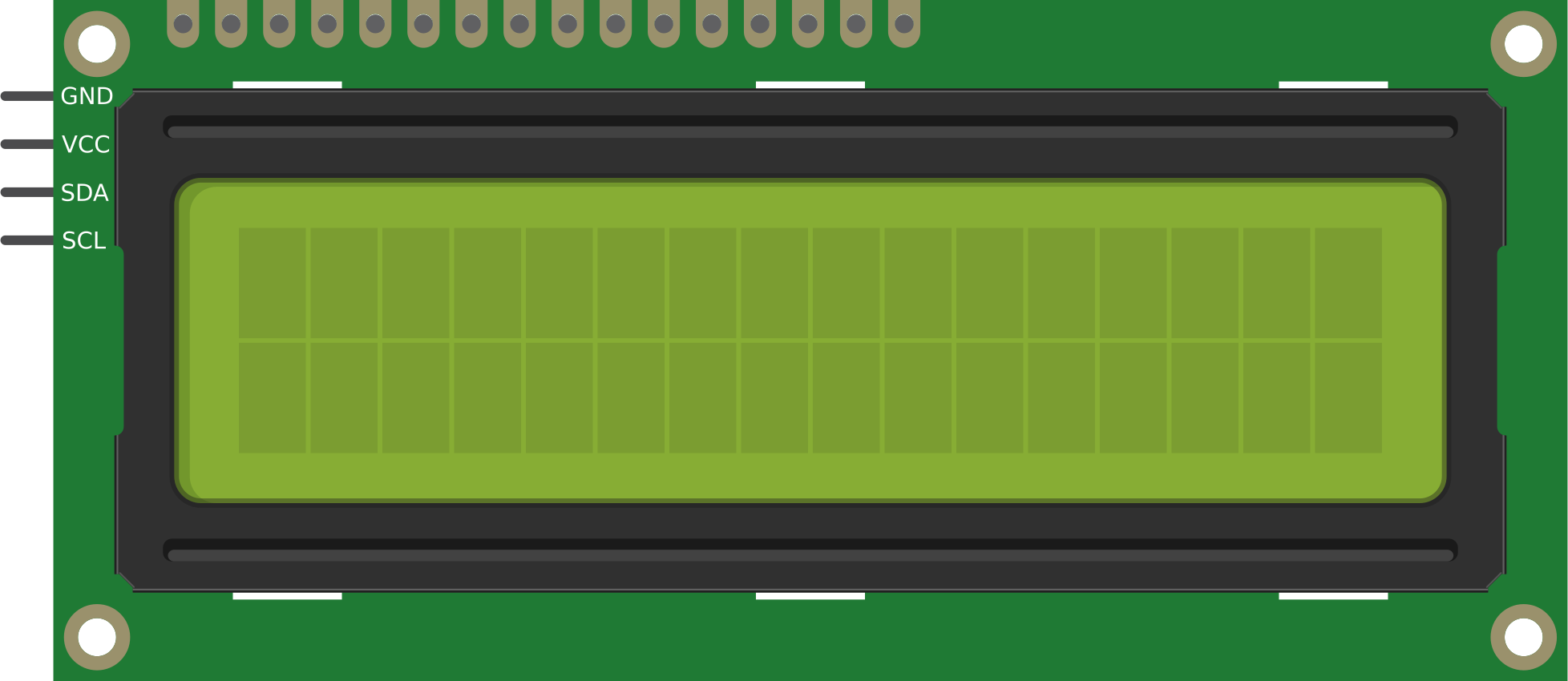

Image of LCD I2C
Cirkit Designer LogoDesign with LCD I2C in Cirkit Designer

Introduction

The LCD I2C is a Liquid Crystal Display module that utilizes the I2C (Inter-Integrated Circuit) protocol for communication. This module simplifies the process of connecting and controlling an LCD with microcontrollers by reducing the number of pins required. Instead of using multiple data and control pins, the I2C interface requires only two pins: SDA (data line) and SCL (clock line). This makes it an excellent choice for projects with limited GPIO availability.

Explore Projects Built with LCD I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD I2C in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and I2C LCD Display for Data Visualization
Image of layar20x4I2C: A project utilizing LCD I2C in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.
Cirkit Designer LogoOpen Project in Cirkit Designer
A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display
Image of lcd disolay: A project utilizing LCD I2C in a practical application
This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of ESP32I2CLCD: A project utilizing LCD I2C in a practical application
This circuit connects an ESP32 microcontroller to an I2C LCD 16x2 display. The ESP32 powers the LCD and communicates with it via the I2C protocol using its SDA and SCL lines connected to the corresponding pins on the LCD. The embedded code on the ESP32 is programmed to display messages on the LCD screen in a loop, which can be used for user interface or status display purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J8 +j22 lcd closeup: A project utilizing LCD I2C in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of layar20x4I2C: A project utilizing LCD I2C in a practical application
ESP32 and I2C LCD Display for Data Visualization
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd disolay: A project utilizing LCD I2C in a practical application
A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display
This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32I2CLCD: A project utilizing LCD I2C in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to an I2C LCD 16x2 display. The ESP32 powers the LCD and communicates with it via the I2C protocol using its SDA and SCL lines connected to the corresponding pins on the LCD. The embedded code on the ESP32 is programmed to display messages on the LCD screen in a loop, which can be used for user interface or status display purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying text, numbers, and symbols in embedded systems
  • User interfaces for DIY electronics projects
  • Real-time data display in IoT devices
  • Educational projects and prototyping with microcontrollers like Arduino, Raspberry Pi, and ESP32

Technical Specifications

Key Technical Details

  • Display Type: 16x2 or 20x4 character LCD (varies by model)
  • Communication Protocol: I2C
  • Operating Voltage: 5V DC (typical)
  • Backlight: LED with adjustable brightness
  • I2C Address: Default is 0x27 (may vary; check your module)
  • Current Consumption: ~20mA (with backlight on)
  • Contrast Adjustment: Via onboard potentiometer

Pin Configuration and Descriptions

The LCD I2C module typically has a 4-pin header for connection:

Pin Name Description Notes
VCC Power supply (5V) Connect to 5V on the microcontroller
GND Ground Connect to GND on the microcontroller
SDA Serial Data Line Connect to the SDA pin of the microcontroller
SCL Serial Clock Line Connect to the SCL pin of the microcontroller

Usage Instructions

How to Use the LCD I2C in a Circuit

  1. Connect the Module:

    • Connect the VCC and GND pins of the LCD I2C module to the 5V and GND pins of your microcontroller, respectively.
    • Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller. For an Arduino UNO, SDA is on A4, and SCL is on A5.
  2. Install Required Libraries:

    • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE.
  3. Write and Upload Code:

    • Use the example code below to initialize and display text on the LCD.

Example Code for Arduino UNO

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and a 16x2 display
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first row, first column
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the second row, first column
  lcd.print("LCD I2C Test");     // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

  • I2C Address: Verify the I2C address of your module. If the default 0x27 does not work, use an I2C scanner sketch to find the correct address.
  • Contrast Adjustment: Use the onboard potentiometer to adjust the contrast of the display.
  • Pull-Up Resistors: Some I2C modules include built-in pull-up resistors. If your module does not, you may need to add external pull-up resistors (4.7kΩ to 10kΩ) on the SDA and SCL lines.
  • Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunctioning of the display.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display or Backlight:

    • Check the power connections (VCC and GND).
    • Ensure the backlight is enabled in the code (lcd.backlight()).
  2. Incorrect or No Text Displayed:

    • Verify the I2C address of the module using an I2C scanner sketch.
    • Ensure the LiquidCrystal_I2C library is correctly installed and included in your code.
  3. Flickering or Unstable Display:

    • Check for loose connections or unstable power supply.
    • Add pull-up resistors to the SDA and SCL lines if necessary.
  4. Contrast Issues:

    • Adjust the contrast using the onboard potentiometer.

FAQs

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and it will print the detected address in the Serial Monitor.

Q: Can I use the LCD I2C with a 3.3V microcontroller?
A: Most LCD I2C modules require 5V for operation. However, some modules are compatible with 3.3V logic. Check your module's datasheet or use a logic level shifter.

Q: Can I connect multiple I2C devices to the same bus?
A: Yes, as long as each device has a unique I2C address. If two devices share the same address, you may need an I2C multiplexer.

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the pull-up resistors and communication speed. For standard setups, keep the cable length under 1 meter to ensure reliable communication.

This documentation provides a comprehensive guide to using the LCD I2C module effectively in your projects.
