How to Use DHT22: Examples, Pinouts, and Specs

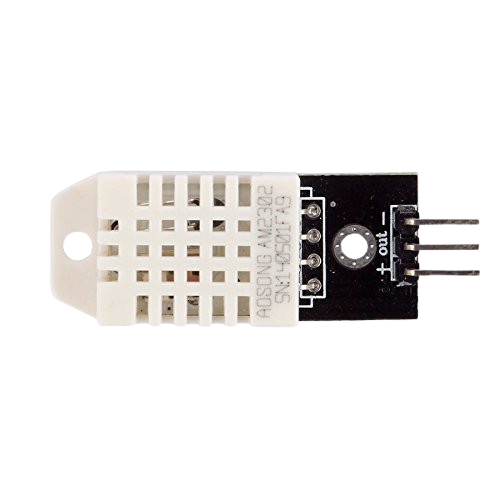

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is widely used in applications requiring environmental monitoring, such as weather stations, HVAC systems, greenhouses, and IoT projects. The DHT22 is known for its reliability, ease of use, and ability to provide precise measurements over a wide range of conditions.

The DHT22 sensor has the following key technical specifications:

The DHT22 has four pins, as described in the table below:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Data Communication: Connect the DATA pin to a GPIO pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure proper signal levels.
3. Timing Requirements: The DHT22 communicates using a proprietary single-wire protocol. Ensure your microcontroller library or code supports this protocol.
4. Sampling Rate: The DHT22 can only provide one reading every 2 seconds. Avoid polling the sensor more frequently to prevent errors.

• Pull-Up Resistor: Always use a pull-up resistor (typically 10kΩ) on the DATA line to ensure reliable communication.
• Cable Length: Keep the cable length between the sensor and the microcontroller as short as possible to avoid signal degradation.
• Environmental Factors: Place the sensor in a location where it can accurately measure the ambient temperature and humidity without interference from heat sources or airflow.
• Power Supply: Use a stable power supply to avoid fluctuations that could affect sensor readings.

Below is an example of how to use the DHT22 with an Arduino UNO. This code uses the popular DHT library.

#include "DHT.h"

// Define the pin where the DHT22 is connected
#define DHTPIN 2  // Connect DATA pin of DHT22 to digital pin 2

// Define the type of DHT sensor
#define DHTTYPE DHT22  // DHT22 (AM2302)

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication at 9600 baud
  Serial.println("DHT22 Sensor Initialization");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature in Celsius
  float temperature = dht.readTemperature();
  // Read humidity in percentage
  float humidity = dht.readHumidity();

  // Check if the readings are valid
  if (isnan(temperature) || isnan(humidity)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.println(" %");
}

1. No Data or Incorrect Readings:

   • Ensure the pull-up resistor is connected between the DATA pin and VCC.
   • Verify that the sensor is powered with the correct voltage (3.3V to 6V).
   • Check the wiring and ensure proper connections to the microcontroller.

2. Frequent Communication Errors:

   • Ensure the cable length is short (preferably less than 20cm).
   • Use shielded cables if the sensor is placed far from the microcontroller.
   • Verify that the microcontroller's GPIO pin supports the required timing for the DHT22 protocol.

3. Slow Response Time:

   • The DHT22 has a sampling rate of 0.5 Hz. Ensure your code waits at least 2 seconds between readings.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 works with both 3.3V and 5V microcontrollers. Ensure the pull-up resistor is connected to the same voltage level as the microcontroller.

Q: What is the maximum cable length for the DHT22?
A: The recommended maximum cable length is 20cm. For longer distances, use shielded cables and reduce the pull-up resistor value to 4.7kΩ.

Q: How do I protect the sensor in outdoor environments?
A: Use a weatherproof enclosure with ventilation to protect the sensor from rain and direct sunlight while allowing air circulation.

Q: Why does the sensor occasionally return NaN values?
A: This can happen due to timing issues or electrical noise. Double-check your wiring, ensure proper pull-up resistance, and avoid polling the sensor too frequently.
