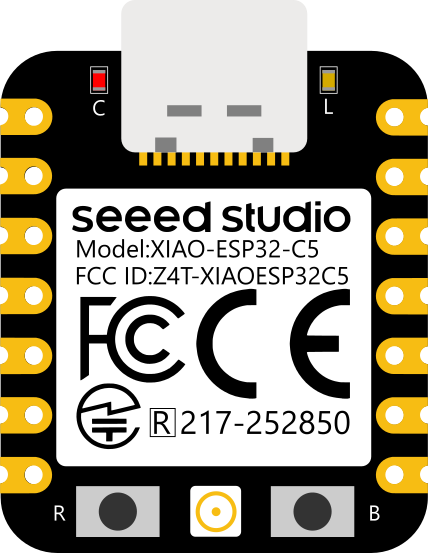

The Seeed Studio XIAO ESP32-C5 is a compact and powerful microcontroller board based on the ESP32-C5 chip. It is specifically designed for IoT (Internet of Things) applications, offering built-in Wi-Fi 6 and Bluetooth 5.0 capabilities. With its small form factor and robust wireless connectivity, the XIAO ESP32-C5 is ideal for projects requiring efficient communication, low power consumption, and high performance.

This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.

This circuit features a Xiao ESP32 C3 microcontroller connected to a DHT11 Humidity and Temperature Sensor. The ESP32 C3 provides power to the DHT11 sensor through its VUSB pin and receives data from the sensor's DATA pin via the ESP32's D2 pin. The circuit is designed to measure environmental temperature and humidity, with the microcontroller processing and potentially communicating the sensor data.

This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.

This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.
The following table outlines the key technical details of the Seeed Studio XIAO ESP32-C5:
| Specification | Details |
|---|---|
| Microcontroller | ESP32-C5 (RISC-V architecture) |
| Wireless Connectivity | Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (via USB-C) |
| Flash Memory | 4MB |
| SRAM | 400KB |
| GPIO Pins | 11 (including ADC, I2C, SPI, UART, PWM) |
| USB Interface | USB-C (supports programming and power supply) |
| Dimensions | 21 x 17.5 mm |
| Power Consumption | Ultra-low power consumption in deep sleep mode |
| Operating Temperature | -40°C to 85°C |
The XIAO ESP32-C5 features a total of 11 GPIO pins, which are multifunctional and can be configured for various purposes. Below is the pinout description:
| Pin | Name | Function | Notes |
|---|---|---|---|
| 1 | 3.3V | Power Supply | Provides 3.3V output |
| 2 | GND | Ground | Common ground |
| 3 | GPIO0 | Digital I/O, ADC, PWM | Configurable as input or output |
| 4 | GPIO1 | Digital I/O, ADC, PWM | Configurable as input or output |
| 5 | GPIO2 | Digital I/O, ADC, PWM, I2C (SDA) | Configurable as input or output |
| 6 | GPIO3 | Digital I/O, ADC, PWM, I2C (SCL) | Configurable as input or output |
| 7 | GPIO4 | Digital I/O, UART TX, SPI (MOSI) | Configurable as input or output |
| 8 | GPIO5 | Digital I/O, UART RX, SPI (MISO) | Configurable as input or output |
| 9 | GPIO6 | Digital I/O, SPI (SCK) | Configurable as input or output |
| 10 | GPIO7 | Digital I/O, SPI (CS) | Configurable as input or output |
| 11 | RST | Reset | Resets the microcontroller |
Below is an example of how to use the XIAO ESP32-C5 to connect to a Wi-Fi network and send data to a server:
#include <WiFi.h> // Include the Wi-Fi library
// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";
void setup() {
Serial.begin(115200); // Initialize serial communication
delay(1000);
// Connect to Wi-Fi
Serial.print("Connecting to Wi-Fi");
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nConnected to Wi-Fi");
}
void loop() {
// Example: Print the IP address
Serial.print("IP Address: ");
Serial.println(WiFi.localIP());
delay(5000); // Wait for 5 seconds before repeating
}
Board Not Detected by IDE:
Wi-Fi Connection Fails:
Peripherals Not Responding:
Q: Can I power the XIAO ESP32-C5 with a battery?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3.3V and GND pins. Ensure proper voltage regulation.
Q: Does the board support OTA (Over-The-Air) updates?
A: Yes, the ESP32-C5 supports OTA updates. You can implement this feature in your code for wireless firmware updates.
Q: How do I reset the board?
A: Press the RST pin or use the reset button (if available) to reset the microcontroller.
Q: Can I use the XIAO ESP32-C5 with MicroPython?
A: Yes, the board is compatible with MicroPython. You can flash the MicroPython firmware and use it for development.
This concludes the documentation for the Seeed Studio XIAO ESP32-C5.
