How to Use LED Matrix 8x16 DOT: Examples, Pinouts, and Specs

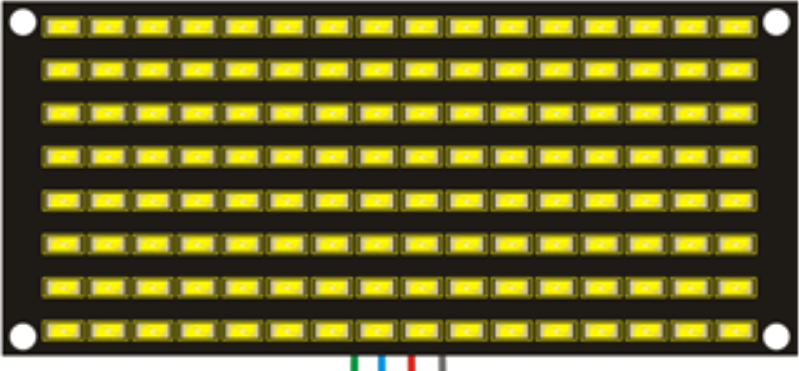

Image of LED Matrix 8x16 DOT
Cirkit Designer LogoDesign with LED Matrix 8x16 DOT in Cirkit Designer

Introduction

The Keyestudio KS0357 8x16 LED Matrix Panel is a versatile display module consisting of 128 individual LEDs arranged in 8 rows and 16 columns. This component is ideal for creating dynamic visual displays, such as scrolling text, simple graphics, and animations. Its compact design and ease of use make it a popular choice for hobbyists, students, and professionals working on electronic projects.

Explore Projects Built with LED Matrix 8x16 DOT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled WS2812 LED Matrix Display with Resistor
Image of esp32 door sign project: A project utilizing LED Matrix 8x16 DOT in a practical application
This circuit features an ESP32 microcontroller connected to a 32x8 WS2812 LED matrix. The ESP32 controls the LED matrix through a 220-ohm resistor connected to its D12 pin, providing data input to the matrix, while power and ground connections are shared between the ESP32 and the LED matrix.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled 8x8 LED Matrix Display
Image of Nodemcu: A project utilizing LED Matrix 8x16 DOT in a practical application
This circuit connects an ESP8266 NodeMCU microcontroller to an 8x8 LED matrix display. The NodeMCU controls the matrix using digital pins D5, D7, and D8 for chip select (CS), data input (DIN), and clock (CLK) signals, respectively. The circuit is designed to display patterns or characters on the LED matrix, which are driven by the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Dual 8x8 LED Matrix Display with NTP Time Synchronization
Image of time: A project utilizing LED Matrix 8x16 DOT in a practical application
This circuit features an ESP32 microcontroller connected to two cascaded 8x8 LED matrix displays, powered by a 3.3V battery. The ESP32 drives the displays to show time and other information, with the code indicating functionality for connecting to WiFi, synchronizing time via NTP, and displaying data on the matrices using custom fonts. Additionally, there is a separate 3.3V battery powering a red LED, which appears to function as a simple indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled LED Matrix Display with Interactive Pushbuttons
Image of Cykel: A project utilizing LED Matrix 8x16 DOT in a practical application
This circuit features an Arduino UNO microcontroller connected to multiple 8x8 LED matrix displays and pushbuttons. The pushbuttons are interfaced with digital pins D2, D3, and D4 on the Arduino for input, while the LED matrices are connected to digital pins D5 through D10 for control signals. Additionally, there is a single red LED with a series resistor connected to pin D12, likely used as an indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED Matrix 8x16 DOT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of esp32 door sign project: A project utilizing LED Matrix 8x16 DOT in a practical application
ESP32-Controlled WS2812 LED Matrix Display with Resistor
This circuit features an ESP32 microcontroller connected to a 32x8 WS2812 LED matrix. The ESP32 controls the LED matrix through a 220-ohm resistor connected to its D12 pin, providing data input to the matrix, while power and ground connections are shared between the ESP32 and the LED matrix.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Nodemcu: A project utilizing LED Matrix 8x16 DOT in a practical application
ESP8266 NodeMCU Controlled 8x8 LED Matrix Display
This circuit connects an ESP8266 NodeMCU microcontroller to an 8x8 LED matrix display. The NodeMCU controls the matrix using digital pins D5, D7, and D8 for chip select (CS), data input (DIN), and clock (CLK) signals, respectively. The circuit is designed to display patterns or characters on the LED matrix, which are driven by the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of time: A project utilizing LED Matrix 8x16 DOT in a practical application
ESP32-Controlled Dual 8x8 LED Matrix Display with NTP Time Synchronization
This circuit features an ESP32 microcontroller connected to two cascaded 8x8 LED matrix displays, powered by a 3.3V battery. The ESP32 drives the displays to show time and other information, with the code indicating functionality for connecting to WiFi, synchronizing time via NTP, and displaying data on the matrices using custom fonts. Additionally, there is a separate 3.3V battery powering a red LED, which appears to function as a simple indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Cykel: A project utilizing LED Matrix 8x16 DOT in a practical application
Arduino UNO Controlled LED Matrix Display with Interactive Pushbuttons
This circuit features an Arduino UNO microcontroller connected to multiple 8x8 LED matrix displays and pushbuttons. The pushbuttons are interfaced with digital pins D2, D3, and D4 on the Arduino for input, while the LED matrices are connected to digital pins D5 through D10 for control signals. Additionally, there is a single red LED with a series resistor connected to pin D12, likely used as an indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Scrolling text displays
  • Digital clocks and counters
  • Simple animations and graphics
  • Status indicators for IoT devices
  • Educational projects and prototyping

Technical Specifications

The following table outlines the key technical details of the KS0357 8x16 LED Matrix Panel:

Parameter Specification
Manufacturer Keyestudio
Part ID KS0357
LED Configuration 8 rows × 16 columns (128 LEDs total)
Operating Voltage 5V DC
Operating Current ≤ 200mA
Communication Protocol Serial (SPI-like interface)
Dimensions 32mm × 64mm
LED Color Red

Pin Configuration and Descriptions

The KS0357 8x16 LED Matrix Panel has a 5-pin interface for connecting to a microcontroller. The pinout is as follows:

Pin Name Description
1 VCC Power supply input (5V DC). Connect to the 5V pin of the microcontroller.
2 GND Ground. Connect to the GND pin of the microcontroller.
3 DIN Data input. Used to send serial data to the LED matrix.
4 CS Chip select. Used to enable or disable communication with the LED matrix.
5 CLK Clock input. Synchronizes data transfer between the microcontroller and matrix.

Usage Instructions

How to Use the Component in a Circuit

  1. Power the Matrix: Connect the VCC pin to a 5V power source and the GND pin to ground.
  2. Connect Data Lines: Use the DIN, CS, and CLK pins to interface with a microcontroller. These pins are typically connected to the SPI-compatible pins of the microcontroller.
  3. Install Required Libraries: If using an Arduino, install the LedControl library, which simplifies communication with the LED matrix.
  4. Write Code: Use the library functions to control the LEDs, display text, or create animations.

Important Considerations and Best Practices

  • Power Supply: Ensure the power supply can provide sufficient current (up to 200mA) to avoid dimming or flickering.
  • Heat Management: Prolonged use at high brightness may generate heat. Ensure proper ventilation.
  • Data Line Length: Keep the data lines as short as possible to minimize signal degradation.
  • Daisy-Chaining: Multiple LED matrices can be connected in series for larger displays. Ensure proper addressing in the code.

Example Code for Arduino UNO

Below is an example of how to display scrolling text on the KS0357 8x16 LED Matrix Panel using the Arduino UNO:

#include <LedControl.h> // Include the LedControl library

// Initialize the LED matrix (DIN=12, CLK=11, CS=10, 1 device)
LedControl lc = LedControl(12, 11, 10, 1);

void setup() {
  // Wake up the LED matrix
  lc.shutdown(0, false); // Turn on the display
  lc.setIntensity(0, 8); // Set brightness level (0-15)
  lc.clearDisplay(0);    // Clear the display
}

void loop() {
  // Display scrolling text
  scrollText("HELLO WORLD");
}

void scrollText(String text) {
  int textLength = text.length();
  for (int i = 0; i < textLength * 8; i++) {
    lc.clearDisplay(0); // Clear the display before each frame
    for (int j = 0; j < textLength; j++) {
      // Display each character in the string
      lc.setChar(0, 7 - (i / 8) + j, text[j], false);
    }
    delay(100); // Adjust delay for scrolling speed
  }
}

Notes on the Code

  • The LedControl library simplifies communication with the LED matrix.
  • Adjust the setIntensity function to control brightness.
  • Modify the scrollText function to display custom messages.

Troubleshooting and FAQs

Common Issues and Solutions

  1. LEDs Not Lighting Up

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check all connections and ensure the power supply provides 5V and sufficient current.
  2. Flickering or Dim LEDs

    • Cause: Voltage drop or excessive current draw.
    • Solution: Use a stable power source and ensure proper grounding.
  3. No Response from the Matrix

    • Cause: Incorrect pin connections or faulty code.
    • Solution: Verify the DIN, CS, and CLK connections. Check the code for errors.
  4. Scrolling Text Appears Garbled

    • Cause: Timing issues or incorrect character mapping.
    • Solution: Adjust the delay in the code and ensure the correct library is used.

FAQs

Q: Can I connect multiple KS0357 panels together?
A: Yes, the panels support daisy-chaining. Connect the DOUT pin of one panel to the DIN pin of the next, and configure the code to address multiple devices.

Q: What is the maximum brightness level?
A: The brightness can be set from 0 (minimum) to 15 (maximum) using the setIntensity function in the LedControl library.

Q: Can I use this matrix with a Raspberry Pi?
A: Yes, the matrix can be controlled using the SPI interface of a Raspberry Pi. However, you may need to use a different library, such as luma.led_matrix.

Q: Is the matrix compatible with 3.3V microcontrollers?
A: The matrix requires 5V for operation. Use a level shifter to safely interface with 3.3V microcontrollers.

By following this documentation, you can effectively integrate the Keyestudio KS0357 8x16 LED Matrix Panel into your projects and create stunning visual displays.
