How to Use Gsm sim800l module: Examples, Pinouts, and Specs

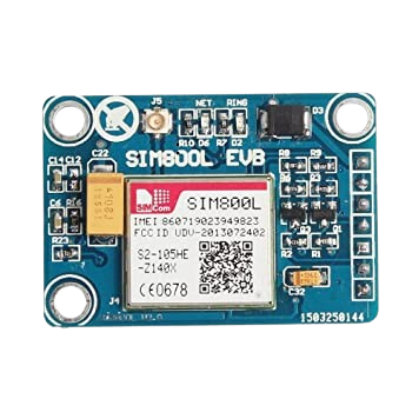

The SIM800L module is a compact GSM/GPRS module designed for communication over cellular networks. It supports essential functionalities such as SMS, voice calls, and data transmission, making it a versatile choice for IoT applications, remote monitoring, and embedded systems. Its small size and low power consumption make it ideal for projects requiring wireless connectivity in constrained spaces.

• IoT devices for remote data collection and control
• Home automation systems
• GPS tracking and vehicle monitoring
• SMS-based alert systems
• Wireless data transmission for industrial applications

1. Power Supply: Ensure the module is powered with a stable 4.0V supply. Use a low-dropout regulator (LDO) or a DC-DC converter to step down from a higher voltage source. The module can draw up to 2A during transmission, so ensure your power supply can handle this peak current.
2. Connections:
   • Connect the VCC pin to the 4.0V power supply.
   • Connect the GND pin to the ground of your circuit.
   • Connect the RXD pin to the TX pin of your microcontroller (e.g., Arduino).
   • Connect the TXD pin to the RX pin of your microcontroller.
   • Optionally, connect the RST pin to a GPIO pin of your microcontroller for manual resets.
3. Antenna: Attach an external antenna to the module for better signal reception. Use a spring antenna or a PCB antenna with the appropriate connector.
4. SIM Card: Insert a micro SIM card into the SIM card slot. Ensure the SIM card is activated and has sufficient balance for SMS, calls, or data usage.

• Voltage Levels: The SIM800L operates at 3.3V logic levels. If your microcontroller uses 5V logic, use a level shifter to avoid damaging the module.
• Decoupling Capacitors: Place a 1000µF capacitor near the module's power pins to handle voltage drops during high current draw.
• Antenna Placement: Keep the antenna away from other components to minimize interference.
• Network Signal: Ensure the module is in an area with good GSM signal strength for reliable operation.

Below is an example of how to send an SMS using the SIM800L module with an Arduino UNO:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial sim800l(10, 11); // RX = 10, TX = 11

void setup() {
  // Initialize serial communication
  Serial.begin(9600); // For debugging
  sim800l.begin(9600); // For SIM800L communication

  // Wait for the module to initialize
  Serial.println("Initializing SIM800L...");
  delay(1000);

  // Send AT command to check communication
  sim800l.println("AT");
  delay(1000);
  while (sim800l.available()) {
    Serial.write(sim800l.read()); // Print response to Serial Monitor
  }

  // Set SMS text mode
  sim800l.println("AT+CMGF=1"); // Set SMS mode to text
  delay(1000);

  // Send SMS
  sim800l.println("AT+CMGS=\"+1234567890\""); // Replace with recipient's number
  delay(1000);
  sim800l.println("Hello from SIM800L!"); // SMS content
  delay(1000);
  sim800l.write(26); // Send Ctrl+Z to indicate end of message
  delay(5000);

  Serial.println("SMS sent!");
}

void loop() {
  // Nothing to do here
}

• Replace +1234567890 with the recipient's phone number.
• Ensure the Arduino is powered by an external power source if the SIM800L draws too much current.

1. Module Not Responding to AT Commands:

   • Ensure the module is powered with a stable 4.0V supply.
   • Check the RX and TX connections between the module and the microcontroller.
   • Verify the baud rate (default is 9600).

2. Frequent Restarts or Unstable Operation:

   • Use a capacitor (1000µF or higher) near the power pins to handle voltage drops.
   • Ensure the power supply can provide at least 2A of current.

3. No Network Signal:

   • Check the antenna connection and placement.
   • Verify that the SIM card is inserted correctly and is activated.
   • Ensure the module is in an area with good GSM signal coverage.

4. SMS Not Sending:

   • Verify the phone number format (e.g., include the country code).
   • Check the SIM card balance and SMS service activation.

• Q: Can the SIM800L module work with a 5V power supply?
  A: No, the module requires a 3.4V to 4.4V power supply. Use a step-down regulator to convert 5V to 4.0V.

• Q: How do I check the signal strength?
  A: Send the AT+CSQ command. The module will return a value indicating the signal strength.

• Q: Can I use the SIM800L for internet access?
  A: Yes, the module supports GPRS for data transmission. You can use AT commands to configure and establish a GPRS connection.

• Q: What is the purpose of the NET pin?
  A: The NET pin drives an LED that indicates the network status. For example, fast blinking means the module is searching for a network, while slow blinking indicates a successful connection.

By following this documentation, you can effectively integrate the SIM800L module into your projects and troubleshoot common issues.
