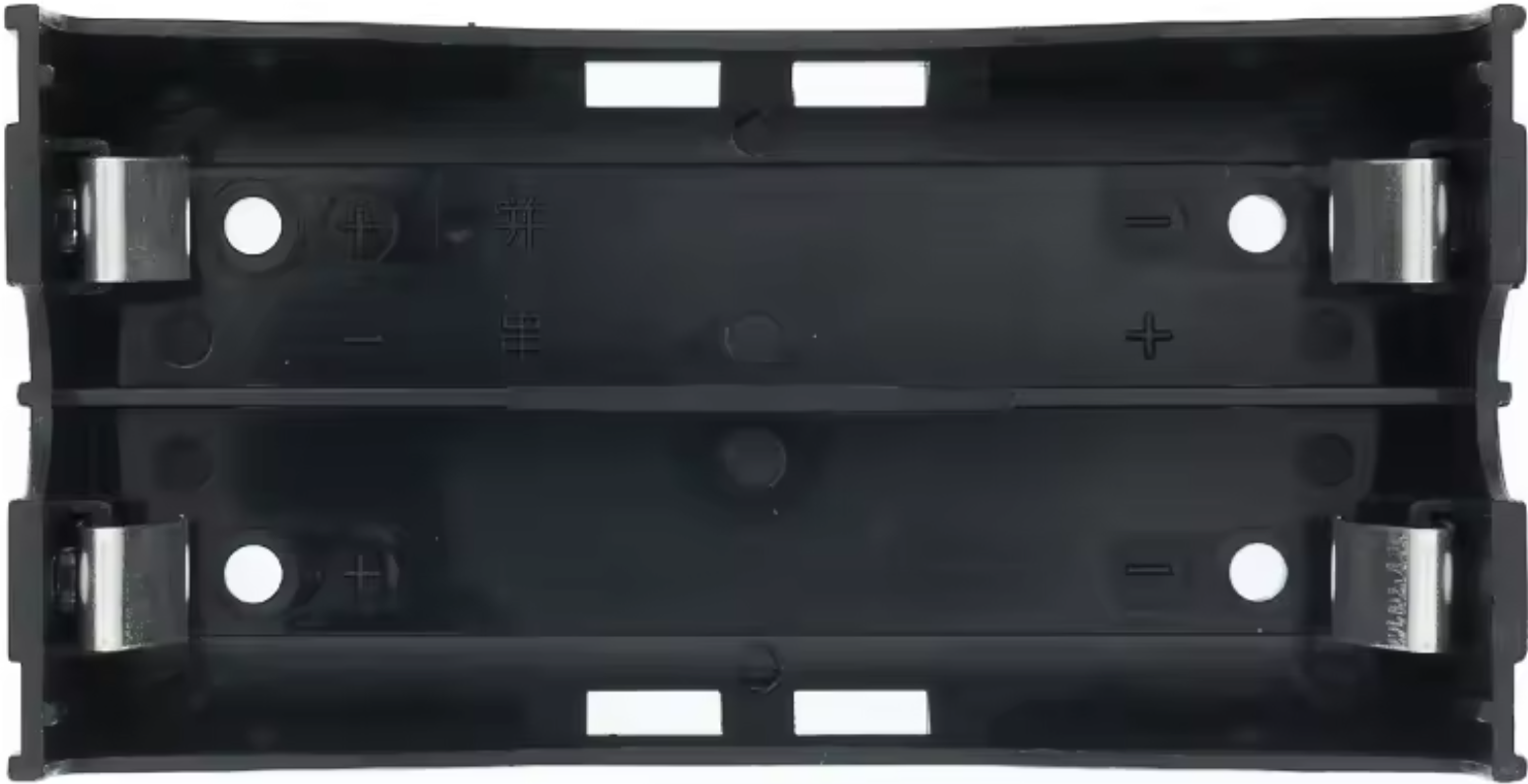

The 18650 Holder 2P is a battery holder designed to securely house two 18650 lithium-ion batteries in a parallel configuration. Manufactured by Generic (Part ID: 2P 18650), this holder provides a stable and reliable connection for powering a wide range of electronic projects. Its durable plastic construction and metal contacts ensure long-lasting performance and efficient power delivery.
Explore Projects Built with 18650 Holder 2P
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
This circuit is a portable power supply system that uses multiple 18650 Li-ion batteries to provide a stable 5V output through a boost converter. It includes a fast charging module with a USB-C input for recharging the batteries and a battery indicator for monitoring the battery status. The system powers a Lora G2 Node Station, making it suitable for wireless communication applications.
Below are the key technical details for the 18650 Holder 2P:
Parameter
Specification
Manufacturer
Generic
Part ID
2P 18650
Battery Configuration
Parallel (2 x 18650 cells)
Material
Plastic (holder body), metal (contacts)
Voltage Output
3.7V (nominal, depends on batteries)
Current Output
Depends on battery capacity and load
Dimensions
~75mm x 40mm x 20mm
Weight
~15g (without batteries)
Mounting Options
Screw holes or adhesive backing
Pin Configuration and Descriptions
The 18650 Holder 2P has two main terminals for connecting to your circuit:
Pin
Label
Description
1
Positive (+)
Positive terminal for power output
2
Negative (-)
Negative terminal for power output
Usage Instructions
How to Use the 18650 Holder 2P in a Circuit
Insert Batteries: Place two 18650 lithium-ion batteries into the holder, ensuring correct polarity. The positive and negative terminals of the batteries should align with the markings on the holder.
Connect to Circuit: Use wires or connectors to attach the holder's positive (+) and negative (-) terminals to your circuit's power input.
Secure the Holder: Mount the holder using screws or adhesive backing to prevent movement during operation.
Test the Connection: Verify the voltage output using a multimeter before powering your circuit.
Important Considerations and Best Practices
Battery Compatibility: Only use 18650 lithium-ion batteries. Ensure the batteries are of the same type, capacity, and charge level to avoid imbalances.
Parallel Configuration: Since the holder connects batteries in parallel, the voltage remains the same as a single battery (nominally 3.7V), but the current capacity is doubled.
Avoid Overloading: Ensure the connected circuit does not draw more current than the batteries can safely provide.
Safety Precautions: Do not short-circuit the terminals. Avoid exposing the holder to high temperatures or moisture.
Arduino Integration: The 18650 Holder 2P can be used to power an Arduino UNO. Connect the positive terminal to the VIN pin and the negative terminal to the GND pin. Ensure the voltage does not exceed the Arduino's input voltage range.
Example Arduino Code
Below is an example of using the 18650 Holder 2P to power an Arduino UNO and control an LED:
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the 18650 Holder 2P is securely connected to the Arduino's VIN and GND pins.
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output for the LED
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Power Output:
Cause: Batteries are inserted incorrectly or are depleted.
Solution: Check the battery polarity and ensure the batteries are charged.
Loose Connections:
Cause: Wires or connectors are not securely attached to the terminals.
Solution: Reattach the wires or use soldered connections for better stability.
Overheating:
Cause: Excessive current draw or short circuit.
Solution: Reduce the load on the circuit and ensure there are no short circuits.
Uneven Battery Discharge:
Cause: Batteries with different capacities or charge levels are used.
Solution: Use identical batteries with the same capacity and charge level.
FAQs
Q: Can I use this holder for batteries other than 18650?
A: No, this holder is specifically designed for 18650 lithium-ion batteries. Using other battery types may result in poor connections or damage.
Q: What is the maximum current this holder can handle?
A: The maximum current depends on the batteries used. Ensure the batteries' discharge rating matches your circuit's requirements.
Q: Can I connect multiple holders in series or parallel?
A: Yes, you can connect multiple holders in series to increase voltage or in parallel to increase current capacity. Ensure proper wiring and safety precautions.
Q: Is the holder waterproof?
A: No, the holder is not waterproof. Avoid exposing it to moisture or liquids.
By following this documentation, you can effectively use the 18650 Holder 2P in your electronic projects while ensuring safety and optimal performance.
