How to Use Fan - Ventilator: Examples, Pinouts, and Specs

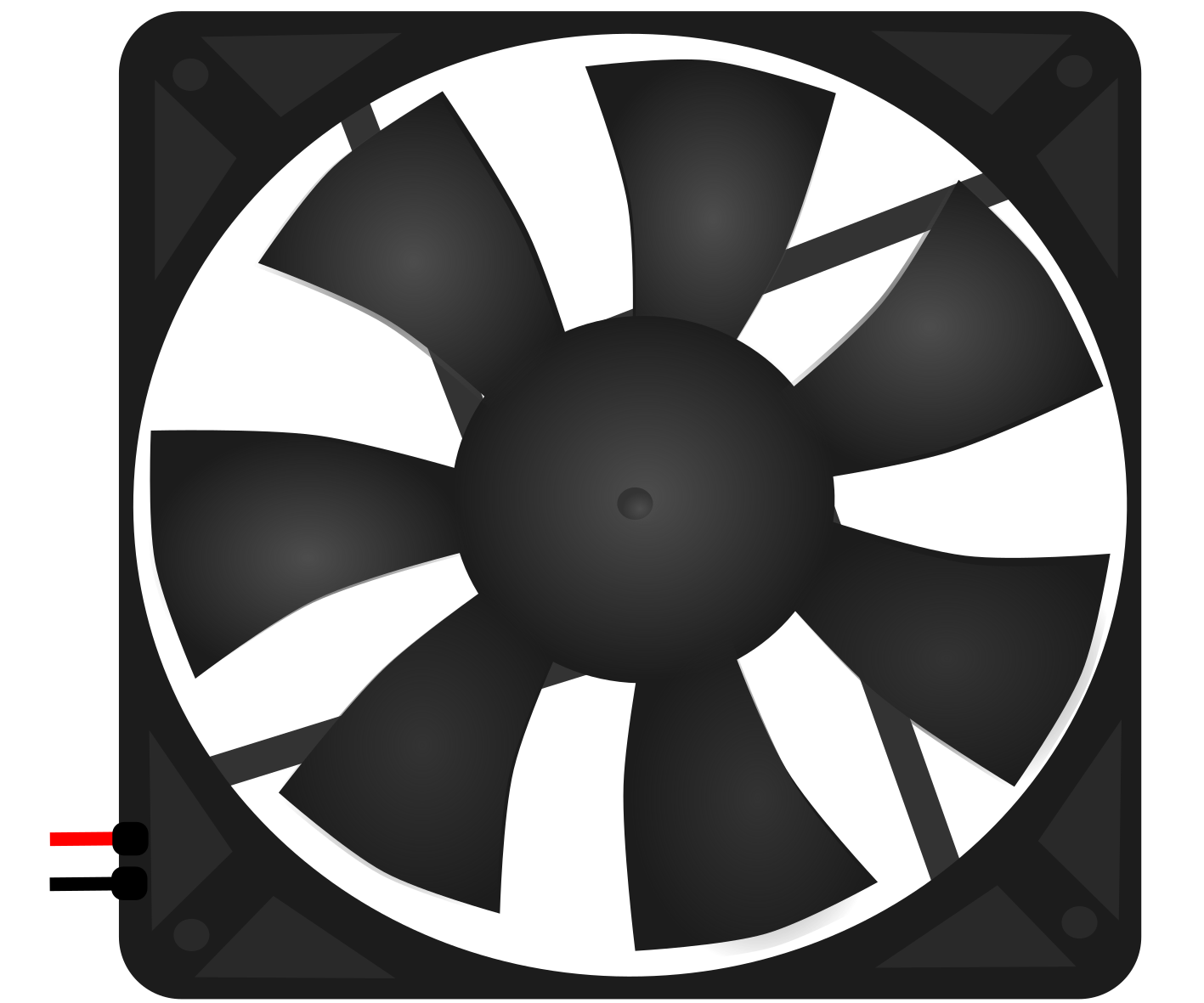

The Fan - Ventilator is an essential electronic component used for cooling and ventilation purposes in various applications. It is designed to move air efficiently, helping to dissipate heat from electronic devices, enclosures, or systems. Fans are commonly used in computers, power supplies, industrial equipment, and HVAC systems to maintain optimal operating temperatures and ensure reliable performance.

• Cooling electronic components such as CPUs, GPUs, and power supplies.
• Ventilation in enclosures, cabinets, and industrial systems.
• Air circulation in HVAC systems.
• Temperature regulation in 3D printers and other machinery.
• General-purpose airflow management in DIY projects.

Below are the typical technical specifications for a standard DC-powered Fan - Ventilator. Specifications may vary depending on the specific model.

The Fan - Ventilator typically comes with a 2-pin or 3-pin connector. Below is the pin configuration:

1. Power Supply: Ensure the fan is powered with the correct voltage (e.g., 12V DC). Exceeding the rated voltage can damage the fan.
2. Connection:
   • For a 2-pin fan, connect the VCC pin to the positive terminal of the power supply and the GND pin to the ground.
   • For a 3-pin fan, connect the VCC and GND pins as above. The tachometer pin can be connected to a microcontroller or monitoring circuit if speed feedback is required.
3. Mounting: Secure the fan in place using screws or adhesive mounts to ensure proper airflow direction.

• Airflow Direction: Most fans have an arrow indicating the airflow direction. Ensure the fan is oriented correctly for your application.
• Noise Reduction: Use rubber mounts or grommets to minimize vibration and noise.
• Speed Control: For fans with PWM (Pulse Width Modulation) control, use a compatible circuit or microcontroller to adjust the speed.
• Dust and Maintenance: Periodically clean the fan blades to prevent dust buildup, which can reduce efficiency and increase noise.

Below is an example of how to control a 3-pin fan using an Arduino UNO and a transistor for speed control.

// Example: Controlling a 3-pin fan with Arduino UNO
// This code uses PWM to control the fan speed via a transistor.
// Connect the fan's VCC to 12V, GND to ground, and the transistor's collector.

const int fanPin = 9; // PWM pin connected to the transistor's base

void setup() {
  pinMode(fanPin, OUTPUT); // Set the fan pin as an output
}

void loop() {
  analogWrite(fanPin, 128); // Set fan speed to 50% (128 out of 255)
  delay(5000); // Run at 50% speed for 5 seconds

  analogWrite(fanPin, 255); // Set fan speed to 100% (255 out of 255)
  delay(5000); // Run at full speed for 5 seconds
}

Note: Use a suitable NPN transistor (e.g., 2N2222) and a base resistor (e.g., 1kΩ) to control the fan. Ensure the fan's power supply matches its rated voltage.

1. Fan Does Not Spin

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Verify the connections and ensure the power supply matches the fan's voltage rating.

2. Fan is Noisy

   • Cause: Dust buildup or improper mounting.
   • Solution: Clean the fan blades and ensure it is securely mounted with vibration-dampening materials.

3. Fan Spins Slowly

   • Cause: Insufficient voltage or high resistance in the circuit.
   • Solution: Check the power supply voltage and ensure proper connections.

4. Tachometer Signal Not Working

   • Cause: Incorrect connection or incompatible monitoring circuit.
   • Solution: Verify the tachometer pin connection and ensure the monitoring circuit is designed to read the signal.

Q: Can I use a 12V fan with a 5V power supply?
A: No, using a lower voltage than the fan's rated voltage will result in insufficient airflow or the fan not spinning at all.

Q: How do I reverse the airflow direction?
A: You cannot reverse the airflow direction electrically. Instead, physically flip the fan to change the airflow direction.

Q: Can I control the speed of a 2-pin fan?
A: Speed control for a 2-pin fan is limited. You can use a variable voltage regulator, but PWM control is not possible without additional circuitry.

Q: How do I clean the fan?
A: Use compressed air or a soft brush to remove dust from the blades. Avoid using water or harsh chemicals.
