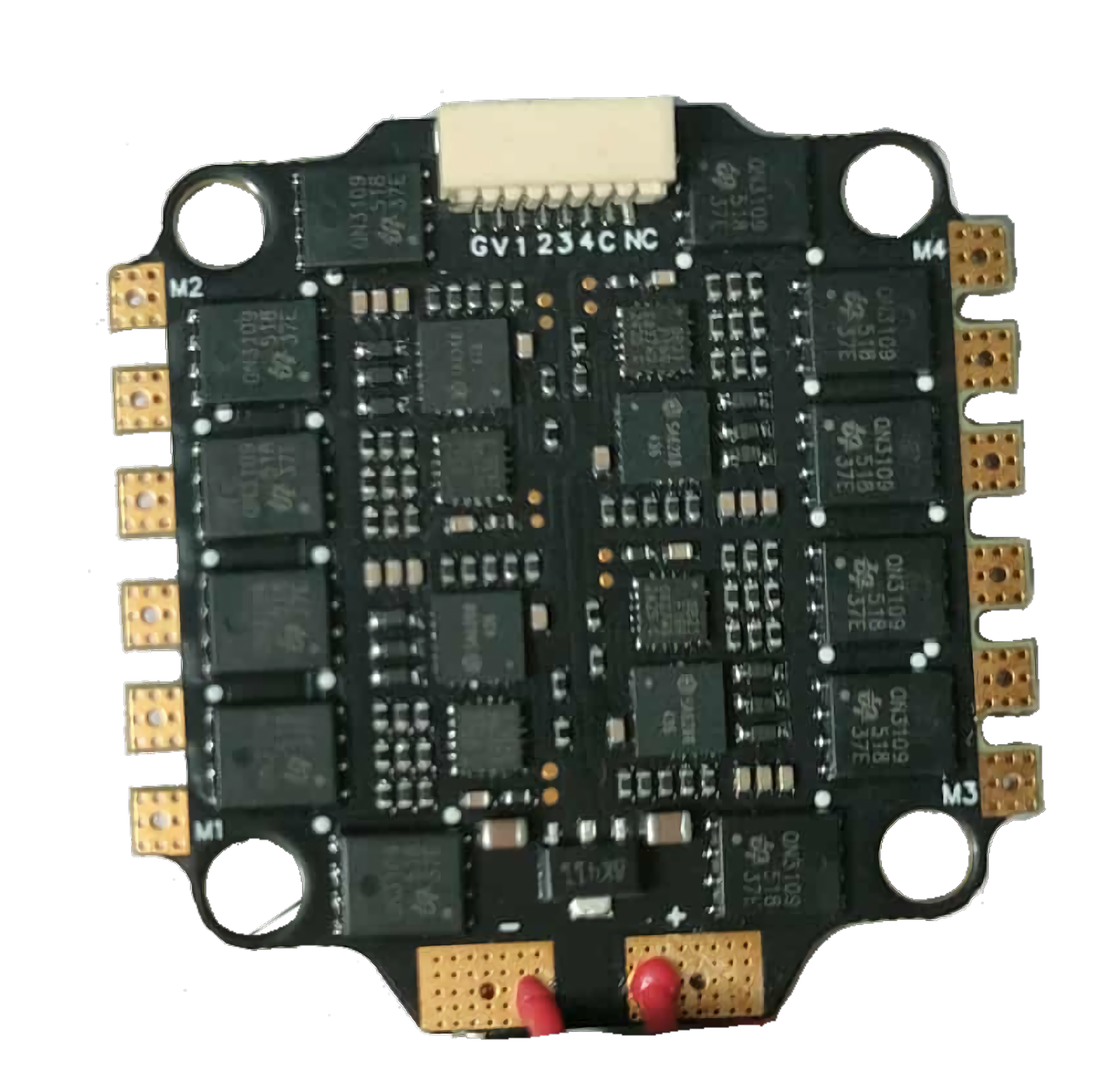

Image of ESC (B-CUBE)
Cirkit Designer LogoDesign with ESC (B-CUBE) in Cirkit Designer

Introduction

The ESC (B-CUBE) is an advanced Electronic Speed Controller designed specifically for brushless motors. It is widely used in applications such as drones, remote-controlled (RC) vehicles, and robotics. The ESC (B-CUBE) enables precise control of motor speed, direction, and braking, making it an essential component for high-performance systems requiring smooth and efficient motor operation.

Common applications include:

  • Multirotor drones (quadcopters, hexacopters, etc.)
  • RC cars, boats, and planes
  • Robotics and automation systems
  • Electric skateboards and scooters

Explore Projects Built with ESC (B-CUBE)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Quadcopter BLDC Motor Control System with Radio Receiver
Image of rc car: A project utilizing ESC (B-CUBE) in a practical application
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
Image of Krul': A project utilizing ESC (B-CUBE) in a practical application
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Drone with Brushless Motors and Camera Module
Image of ROV: A project utilizing ESC (B-CUBE) in a practical application
This circuit is designed for a multi-motor application, likely a drone or a similar vehicle, featuring eight brushless motors controlled by two 4-in-1 electronic speed controllers (ESCs). The ESCs are powered by a 3s2p 18650 battery pack and interfaced with a Pixhawk flight controller for motor management. Additionally, the system includes a Raspberry Pi 4B for advanced processing and control, which is connected to a NoIR camera module and a cooling fan, and a power module to supply and monitor the power to the Pixhawk.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-ESC BLDC Motor Control System with Adafruit 9-DoF Sensor Feedback
Image of MRBM_WiringDiagram: A project utilizing ESC (B-CUBE) in a practical application
This circuit consists of multiple Electronic Speed Controllers (ESCs) connected to Brushless DC (BLDC) motors and powered by Lithium-ion batteries. The ESCs receive control signals from Adafruit Precision 9-DoF ISM330DHCX + LIS3MDL FeatherWings, which are likely used for motion sensing and control. Additionally, the circuit includes an STM32F4 BlackPill microcontroller, current sensors, MOSFETs, resistors, and other sensors, indicating a complex control system possibly for a drone or a robotic application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESC (B-CUBE)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rc car: A project utilizing ESC (B-CUBE) in a practical application
Quadcopter BLDC Motor Control System with Radio Receiver
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Krul': A project utilizing ESC (B-CUBE) in a practical application
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ROV: A project utilizing ESC (B-CUBE) in a practical application
Raspberry Pi-Controlled Drone with Brushless Motors and Camera Module
This circuit is designed for a multi-motor application, likely a drone or a similar vehicle, featuring eight brushless motors controlled by two 4-in-1 electronic speed controllers (ESCs). The ESCs are powered by a 3s2p 18650 battery pack and interfaced with a Pixhawk flight controller for motor management. Additionally, the system includes a Raspberry Pi 4B for advanced processing and control, which is connected to a NoIR camera module and a cooling fan, and a power module to supply and monitor the power to the Pixhawk.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MRBM_WiringDiagram: A project utilizing ESC (B-CUBE) in a practical application
Multi-ESC BLDC Motor Control System with Adafruit 9-DoF Sensor Feedback
This circuit consists of multiple Electronic Speed Controllers (ESCs) connected to Brushless DC (BLDC) motors and powered by Lithium-ion batteries. The ESCs receive control signals from Adafruit Precision 9-DoF ISM330DHCX + LIS3MDL FeatherWings, which are likely used for motion sensing and control. Additionally, the circuit includes an STM32F4 BlackPill microcontroller, current sensors, MOSFETs, resistors, and other sensors, indicating a complex control system possibly for a drone or a robotic application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The ESC (B-CUBE) is engineered to deliver reliable performance under demanding conditions. Below are its key technical specifications:

Parameter Specification
Input Voltage Range 7.4V - 22.2V (2S to 6S LiPo)
Continuous Current Rating 30A
Peak Current Rating 40A (for up to 10 seconds)
Supported Motor Types Brushless DC (BLDC) motors
Signal Input PWM (Pulse Width Modulation)
PWM Frequency Range 50Hz - 500Hz
BEC Output 5V, 2A (for powering external devices)
Dimensions 45mm x 25mm x 8mm
Weight 20g
Operating Temperature -10°C to 60°C

Pin Configuration and Descriptions

The ESC (B-CUBE) has three main connection interfaces: motor wires, power input, and signal input. Below is the pin configuration:

Motor Wires

Wire Color Description
Yellow Motor Phase A
Blue Motor Phase B
Green Motor Phase C

Power Input

Wire Color Description
Red Positive terminal (+)
Black Negative terminal (-)

Signal Input

Pin Description
White Wire PWM Signal Input
Red Wire 5V Output (BEC)
Black Wire Ground (GND)

Usage Instructions

How to Use the ESC (B-CUBE) in a Circuit

  1. Connect the Motor Wires: Attach the yellow, blue, and green wires to the three terminals of the brushless motor. The order of connection determines the motor's rotation direction. If the motor spins in the wrong direction, swap any two wires.

  2. Connect Power Input: Connect the red and black wires to the positive and negative terminals of your battery, respectively. Ensure the battery voltage is within the supported range (7.4V - 22.2V).

  3. Connect Signal Input:

    • Attach the white wire to the PWM signal pin of your microcontroller or receiver.
    • Connect the black wire to the ground (GND) of your system.
    • Optionally, use the red wire to power external devices (e.g., a microcontroller) with the built-in 5V BEC.
  4. Calibrate the ESC: Before first use, calibrate the ESC to match the throttle range of your transmitter or microcontroller. This typically involves powering the ESC while the throttle is set to maximum, then lowering the throttle to minimum when prompted by the ESC's beeps.

  5. Test the Setup: Gradually increase the throttle to ensure the motor responds correctly. Monitor the ESC and motor for any unusual behavior, such as overheating or erratic movement.

Important Considerations and Best Practices

  • Cooling: Ensure adequate airflow around the ESC to prevent overheating during operation.
  • Battery Compatibility: Use only LiPo batteries within the specified voltage range (2S to 6S).
  • Signal Quality: Use a stable PWM signal to avoid erratic motor behavior.
  • Safety: Always disconnect the battery when making adjustments to the wiring or motor connections.

Example: Using ESC (B-CUBE) with Arduino UNO

Below is an example of how to control the ESC (B-CUBE) using an Arduino UNO:

#include <Servo.h> // Include the Servo library for PWM signal generation

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Attach the ESC signal wire to pin 9 on the Arduino
  esc.writeMicroseconds(1000); // Send minimum throttle signal (1000 µs)
  delay(2000); // Wait for 2 seconds to initialize the ESC
}

void loop() {
  esc.writeMicroseconds(1500); // Send a mid-throttle signal (1500 µs)
  delay(5000); // Run the motor at mid-speed for 5 seconds

  esc.writeMicroseconds(1000); // Send minimum throttle signal to stop the motor
  delay(5000); // Wait for 5 seconds before repeating
}

Notes:

  • The writeMicroseconds() function sends a PWM signal to the ESC. The value typically ranges from 1000 µs (minimum throttle) to 2000 µs (maximum throttle).
  • Ensure the ESC is properly calibrated before running the code.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin

    • Cause: Incorrect wiring or no PWM signal.
    • Solution: Verify motor wire connections and ensure the PWM signal is being sent correctly.
  2. Motor Spins in the Wrong Direction

    • Cause: Incorrect motor wire connections.
    • Solution: Swap any two motor wires to reverse the direction.
  3. ESC Overheats

    • Cause: Insufficient cooling or excessive current draw.
    • Solution: Improve airflow around the ESC and ensure the motor is not overloaded.
  4. No Response from ESC

    • Cause: Incorrect throttle calibration or signal input.
    • Solution: Recalibrate the ESC and verify the PWM signal source.

FAQs

Q: Can I use the ESC (B-CUBE) with brushed motors?
A: No, the ESC (B-CUBE) is designed specifically for brushless motors.

Q: What happens if I exceed the voltage range?
A: Exceeding the voltage range can damage the ESC and void the warranty. Always use a compatible battery.

Q: How do I know if the ESC is calibrated?
A: The ESC will emit a series of beeps during calibration. Refer to the user manual for specific beep codes.

Q: Can I power my Arduino directly from the ESC's BEC?
A: Yes, the ESC's 5V BEC can safely power an Arduino UNO or similar microcontroller.

By following this documentation, you can effectively integrate the ESC (B-CUBE) into your projects for precise and reliable motor control.
