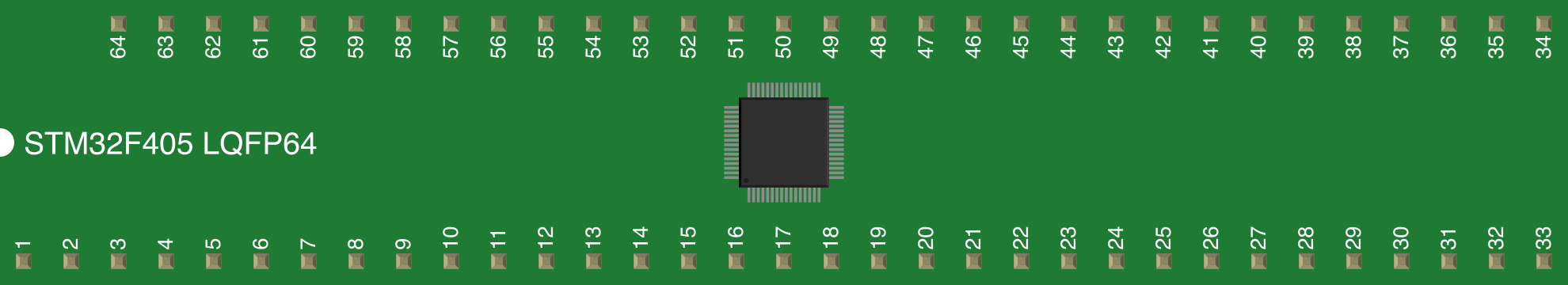

How to Use STM32F405 LQFP64 (Diagram Adapter): Examples, Pinouts, and Specs

The STM32F405 LQFP64 is a high-performance microcontroller developed by STMicroelectronics. It is based on a 32-bit ARM Cortex-M4 core with a floating-point unit (FPU), making it ideal for demanding embedded applications. This microcontroller is housed in a 64-pin Low-Profile Quad Flat Package (LQFP64), offering a compact and versatile solution for a wide range of projects.

• Industrial automation and control systems
• Consumer electronics and IoT devices
• Robotics and motor control
• Data acquisition and signal processing
• Communication systems and networking
• Medical devices and instrumentation

The STM32F405 LQFP64 microcontroller is packed with features to support high-performance applications. Below are its key technical specifications:

The STM32F405 LQFP64 has 64 pins, each serving specific functions. Below is a summary of the pin configuration:

Note: For the complete pinout, refer to the official datasheet provided by STMicroelectronics.

1. Power Supply: Connect the VDD pins to a 3.3V power source and the VSS pins to ground. Ensure proper decoupling capacitors (e.g., 0.1 µF) are placed close to the power pins.
2. Clock Configuration: Use an external crystal oscillator (e.g., 8 MHz) or the internal RC oscillator for the system clock. Configure the PLL for higher frequencies if needed.
3. Programming: Use an ST-Link programmer/debugger to upload firmware via the SWD (Serial Wire Debug) interface.
4. Peripherals: Connect peripherals (e.g., sensors, communication modules) to the appropriate GPIO, ADC, or communication pins.
5. Reset: Connect the NRST pin to a push-button or external reset circuit for manual resets.

• Voltage Levels: Ensure all connected peripherals operate within the microcontroller's voltage range (1.8V to 3.6V).
• Decoupling Capacitors: Place decoupling capacitors near the power pins to reduce noise and improve stability.
• Unused Pins: Configure unused GPIO pins as analog inputs or outputs to minimize power consumption.
• Debugging: Use the SWD interface for debugging and firmware updates.
• Heat Dissipation: Ensure proper heat dissipation if the microcontroller operates at high frequencies for extended periods.

Although the STM32F405 is not directly compatible with Arduino UNO, it can be programmed using the Arduino IDE with the STM32 core installed. Below is an example of blinking an LED connected to pin PA5:

// Include the STM32 HAL library
#include <Arduino.h>

// Define the LED pin
#define LED_PIN PA5

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set PA5 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(500);                  // Wait for 500 milliseconds
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(500);                  // Wait for 500 milliseconds
}

Note: Install the STM32 core in the Arduino IDE and select the appropriate board (e.g., "Generic STM32F4 Series") before uploading the code.

1. Microcontroller Not Responding

   • Cause: Incorrect power supply or missing decoupling capacitors.
   • Solution: Verify the power connections and ensure proper decoupling capacitors are in place.

2. Programming Failure

   • Cause: Incorrect SWD connections or incompatible firmware.
   • Solution: Double-check the SWD connections and ensure the firmware matches the microcontroller's specifications.

3. Peripheral Not Working

   • Cause: Incorrect pin configuration or initialization.
   • Solution: Verify the pin assignments and ensure the peripheral is properly initialized in the code.

4. Overheating

   • Cause: Excessive current draw or high operating frequency.
   • Solution: Reduce the clock frequency or improve heat dissipation with a heatsink.

• Q: Can I use the STM32F405 with 5V peripherals?

  • A: No, the STM32F405 operates at 3.3V. Use level shifters to interface with 5V peripherals.

• Q: How do I enable the USB OTG interface?

  • A: Connect the USB D+ and D- lines to the appropriate pins (e.g., PA11 and PA12) and configure the USB peripheral in the firmware.

• Q: What is the maximum ADC resolution?

  • A: The STM32F405 features 12-bit ADCs, providing a resolution of 4096 levels.

• Q: Can I use the internal oscillator for high-frequency applications?

  • A: While the internal oscillator is convenient, an external crystal oscillator is recommended for better accuracy and stability.

This concludes the documentation for the STM32F405 LQFP64 microcontroller. For more details, refer to the official datasheet and reference manual provided by STMicroelectronics.
