How to Use Gas Sensor MQ-9: Examples, Pinouts, and Specs

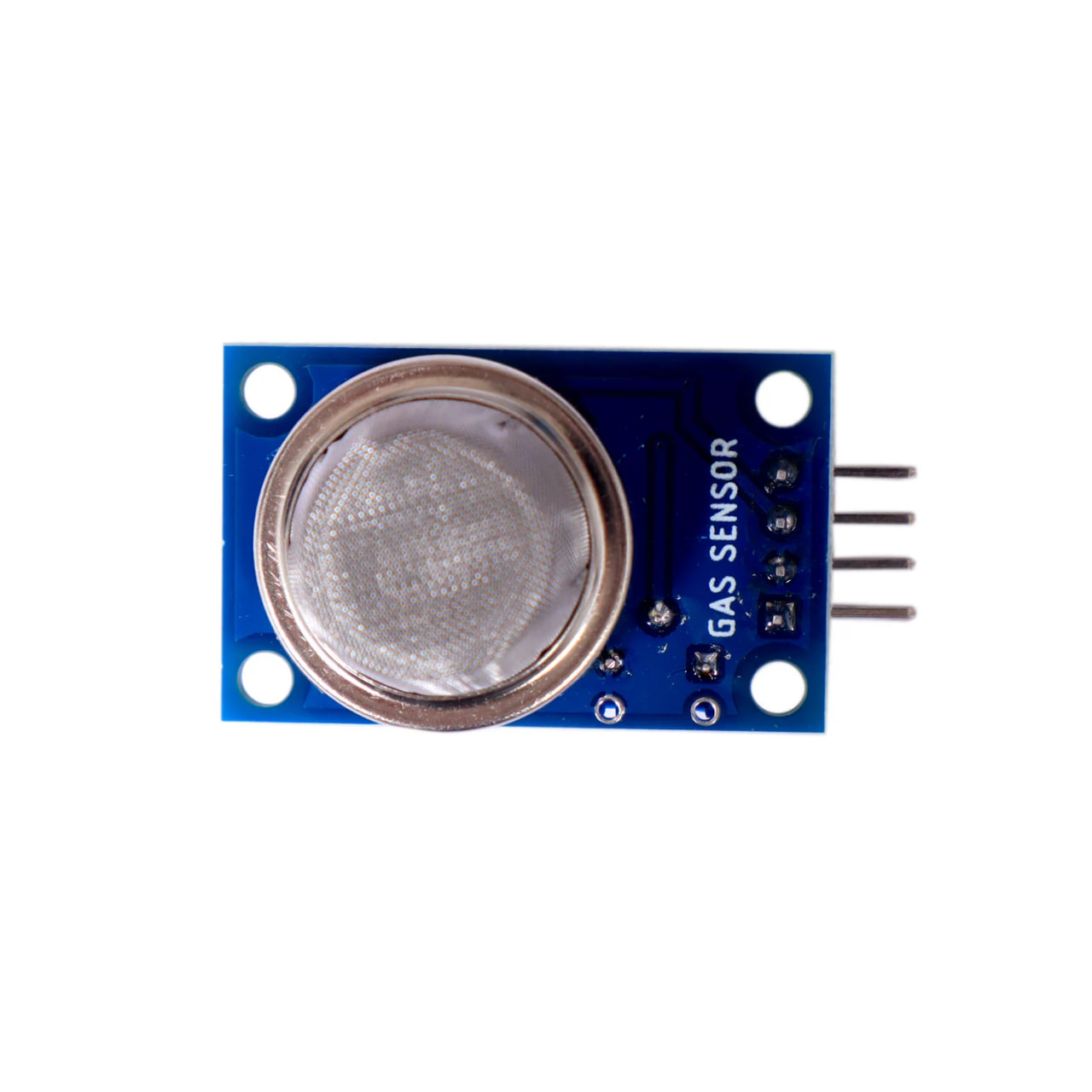

The Gas Sensor MQ-9, manufactured by Zhengzhou Winsen Electronics Technology Co., Ltd, is a versatile gas sensor designed to detect a variety of gases, including carbon monoxide (CO), methane (CH₄), and liquefied petroleum gas (LPG). It operates on the principle of resistive change in the presence of target gases, providing reliable and accurate measurements for air quality monitoring and safety applications.

• Air Quality Monitoring: Detecting harmful gases in residential, industrial, and commercial environments.
• Gas Leak Detection: Identifying leaks of methane or LPG in kitchens, factories, and storage facilities.
• Safety Systems: Integration into fire alarms and gas detection systems to prevent hazardous situations.
• IoT Devices: Used in smart home systems for real-time gas monitoring.

The MQ-9 sensor is designed for ease of use and integration into various systems. Below are its key technical details:

The MQ-9 sensor typically comes with four pins or terminals. Below is the pinout description:

The MQ-9 gas sensor is straightforward to use in a circuit. Follow the steps below to integrate it into your project:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Analog Output: Connect the AOUT pin to an analog input pin of your microcontroller (e.g., Arduino UNO) to read gas concentration levels.
3. Digital Output: Optionally, connect the DOUT pin to a digital input pin of your microcontroller for threshold-based detection.
4. Load Resistor: Ensure a load resistor (RL) is connected between the AOUT pin and ground. The value of RL can be adjusted to calibrate the sensor's sensitivity.

• Preheating: The sensor requires a preheating time of at least 24 hours before first use to stabilize its readings.
• Ventilation: Ensure proper ventilation around the sensor to avoid saturation and ensure accurate readings.
• Calibration: Calibrate the sensor in a known gas concentration environment for precise measurements.
• Power Supply: Use a stable 5V DC power source to avoid fluctuations in sensor output.

Below is an example of how to interface the MQ-9 sensor with an Arduino UNO to read analog values:

// MQ-9 Gas Sensor Example Code for Arduino UNO
// This code reads the analog output of the MQ-9 sensor and prints the value
// to the Serial Monitor. Ensure the sensor is connected to the correct pins.

const int analogPin = A0; // Connect AOUT pin of MQ-9 to Arduino A0
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(analogPin, INPUT); // Set the analog pin as input
}

void loop() {
  sensorValue = analogRead(analogPin); // Read the analog value from MQ-9
  Serial.print("Gas Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

• Avoid exposing the sensor to high concentrations of corrosive gases, as this may damage the sensing element.
• Place the sensor in a location where it can detect the target gases effectively, avoiding areas with excessive humidity or dust.
• Regularly clean the sensor to remove any debris or contaminants that may affect its performance.

1. How long does the MQ-9 sensor last?
   The sensor has a typical lifespan of 2-3 years under normal operating conditions.

2. Can the MQ-9 detect multiple gases simultaneously?
   Yes, the sensor can detect CO, CH₄, and LPG, but it does not differentiate between them.

3. What is the purpose of the digital output (DOUT)?
   The DOUT pin provides a high or low signal based on whether the gas concentration exceeds a preset threshold.

4. How do I calibrate the MQ-9 sensor?
   Calibration involves exposing the sensor to a known concentration of the target gas and adjusting the load resistor (RL) to achieve accurate readings.

By following this documentation, users can effectively integrate and utilize the MQ-9 gas sensor in their projects for reliable gas detection and monitoring.
