How to Use Seeed Studio XIAO ESP32C3: Examples, Pinouts, and Specs

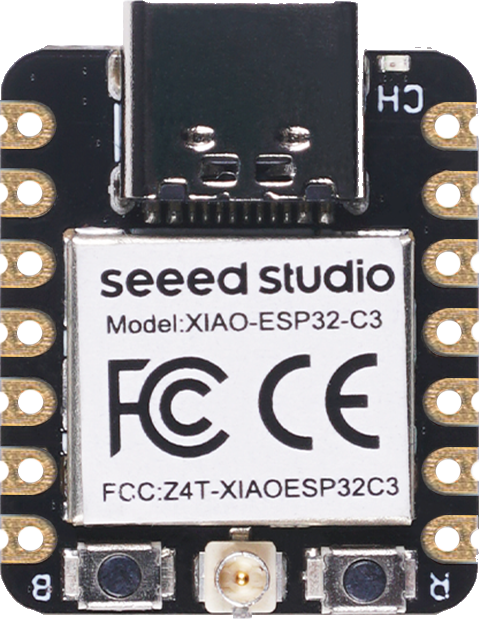

The Seeed Studio XIAO ESP32C3 is a compact and powerful microcontroller board based on the ESP32-C3 chip. It features built-in Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for IoT applications and projects requiring wireless connectivity. Its small form factor and low power consumption make it ideal for wearable devices, smart home systems, and other embedded applications.

• IoT devices and smart home automation
• Wearable electronics
• Wireless sensor networks
• Prototyping and development of Bluetooth and Wi-Fi-enabled projects
• Low-power applications requiring efficient connectivity

The following table outlines the key technical details of the Seeed Studio XIAO ESP32C3:

The XIAO ESP32C3 has 11 GPIO pins, each with multiple functions. The table below provides details about the pin configuration:

1. Powering the Board:

   • Connect the board to a 5V power source using the USB-C port.
   • Alternatively, use the 3V3 pin to supply 3.3V directly.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board package.
   • Select "Seeed Studio XIAO ESP32C3" as the board in the Arduino IDE.
   • Connect the board to your computer via USB-C and upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the board.

4. Wireless Connectivity:

   • Use the built-in Wi-Fi and Bluetooth capabilities for wireless communication.
   • Configure the network settings in your code to connect to a Wi-Fi network or pair with a Bluetooth device.

• Avoid supplying voltages higher than 3.3V to the GPIO pins to prevent damage.
• Use appropriate pull-up or pull-down resistors for I2C and other communication protocols.
• Ensure proper grounding when connecting external components to avoid noise or instability.

Below is an example of using the XIAO ESP32C3 to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nConnected to Wi-Fi");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  // Add your main code here
}

1. The board is not detected by the computer:

   • Ensure the USB-C cable supports data transfer (not just charging).
   • Check if the correct drivers are installed for the ESP32-C3.

2. Wi-Fi connection fails:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and supports 2.4 GHz.

3. Code upload fails:

   • Check if the correct board and port are selected in the Arduino IDE.
   • Press the reset button on the board before uploading.

• Use a multimeter to check power supply voltages if the board does not power on.
• Update the ESP32 board package in the Arduino IDE to the latest version for compatibility.
• Refer to the Seeed Studio documentation for advanced configurations and examples.

By following this documentation, you can effectively utilize the Seeed Studio XIAO ESP32C3 for your projects and troubleshoot common issues with ease.
