How to Use XL4016: Examples, Pinouts, and Specs

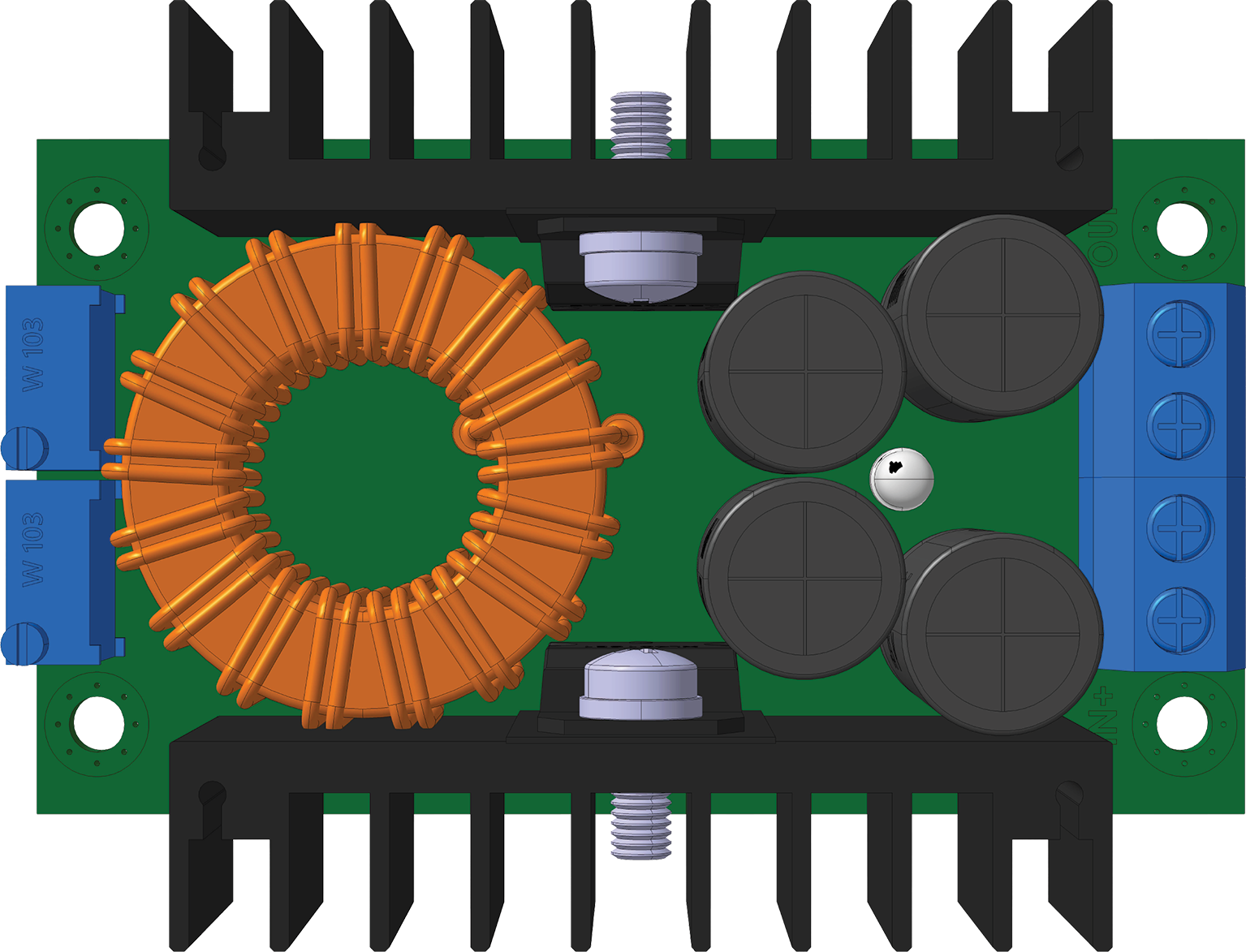

Image of XL4016Design with XL4016 in Cirkit Designer

Introduction

The XL4016 is a high-performance step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. With its high efficiency and robust design, the XL4016 is widely used in power supply applications to provide a stable and adjustable output voltage for various electronic devices. It is particularly suitable for applications requiring high current and low heat dissipation.

Explore Projects Built with XL4016

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications

Technical Specifications

The XL4016 is a versatile component with the following key technical specifications:

Parameter Value
Input Voltage Range 8V to 40V
Output Voltage Range 1.25V to 36V (adjustable)
Maximum Output Current 8A (with proper heat dissipation)
Efficiency Up to 95%
Switching Frequency 180 kHz
Output Ripple ≤ 50 mV
Operating Temperature -40°C to +85°C
Dimensions 60mm x 53mm x 22mm

Pin Configuration and Descriptions

The XL4016 module typically comes with the following pin configuration:

Pin Name Description
VIN Input voltage pin. Connect to the positive terminal of the input power source.
GND Ground pin. Connect to the negative terminal of the input power source.
VOUT Output voltage pin. Provides the regulated output voltage.
ADJ Adjustment pin. Used to set the output voltage via a potentiometer.

Usage Instructions

How to Use the XL4016 in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of the input power source to the VIN pin.
    • Connect the negative terminal of the input power source to the GND pin.
      Ensure the input voltage is within the range of 8V to 40V.

  2. Adjust the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Measure the output voltage across the VOUT and GND pins using a multimeter.
    • Turn the potentiometer clockwise to increase the voltage and counterclockwise to decrease it.

  3. Connect the Load:

    • Connect the load (e.g., a motor, LED, or microcontroller) to the VOUT and GND pins.
    • Ensure the load does not exceed the maximum output current of 8A.

  4. Heat Dissipation:

    • For high-current applications, attach a heatsink to the XL4016 module to prevent overheating.
    • Ensure proper ventilation around the module.

Important Considerations

Example: Using XL4016 with Arduino UNO

The XL4016 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and code:

Circuit Connections

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by XL4016
const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect input connections or insufficient input voltage.
    • Solution: Verify the input voltage is within the 8V to 40V range and check the polarity.

  2. Overheating:

    • Cause: High current draw or inadequate heat dissipation.
    • Solution: Attach a heatsink and ensure proper ventilation.

  3. Output Voltage Not Adjustable:

    • Cause: Faulty potentiometer or incorrect adjustment.
    • Solution: Check the potentiometer for damage and adjust it carefully.

  4. High Output Ripple:

    • Cause: Insufficient filtering.
    • Solution: Add additional capacitors (e.g., 100µF electrolytic capacitor) at the output.

FAQs

Q1: Can the XL4016 be used to charge batteries?
A1: Yes, the XL4016 can be used to charge batteries. However, ensure the output voltage and current are set according to the battery's specifications.

Q2: What is the maximum power output of the XL4016?
A2: The maximum power output is approximately 288W (36V × 8A), provided proper heat dissipation is ensured.

Q3: Can the XL4016 regulate voltage below 1.25V?
A3: No, the minimum output voltage of the XL4016 is 1.25V.

Q4: Is the XL4016 suitable for audio applications?
A4: Yes, but additional filtering may be required to minimize noise and ripple.

By following this documentation, users can effectively integrate the XL4016 into their projects and troubleshoot common issues.
