Introduction

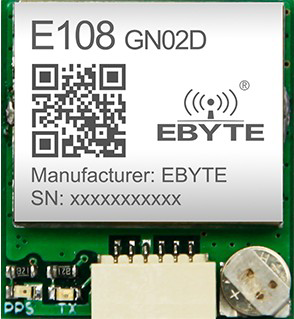

The EBYTE GNSS Module is a compact and efficient Global Navigation Satellite System (GNSS) module designed to provide accurate positioning and timing information. By receiving signals from multiple satellite constellations, such as GPS, GLONASS, Galileo, and BeiDou, this module ensures reliable and precise location data. Its small form factor and low power consumption make it ideal for integration into a wide range of applications.

Explore Projects Built with EBYTE GNSS Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 and GPS-RTK2 Based Real-Time GPS Tracker with Bluetooth and APC220 Communication
Image of PANDURTKU0001_1: A project utilizing EBYTE GNSS Module in a practical application
This circuit integrates a GPS module, an ESP8266 microcontroller, a Bluetooth module, and an APC220 RF module to collect and transmit GPS data. The ESP8266 reads GPS data from the SparkFun Qwiic GPS-RTK2 module and can communicate this data via Bluetooth and RF transmission. The system is powered by a 5V battery and includes an embedded GPS antenna for signal reception.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing EBYTE GNSS Module in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered GPS Tracker with ESP32 and NEO 6M
Image of SeekPeek: A project utilizing EBYTE GNSS Module in a practical application
This circuit is a GPS tracking system powered by a 3.7V battery, which is charged via a TP4056 module. The ESP32 Devkit V1 microcontroller interfaces with the GPS NEO 6M module to receive location data, which can be processed and transmitted as needed.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with Bluetooth Connectivity and Camera Interface
Image of ESp32_gps: A project utilizing EBYTE GNSS Module in a practical application
This circuit features an ESP32 microcontroller interfaced with a Neo 6M GPS Module, an OV7725 camera module, an HC-05 Bluetooth Module, and a BT139 600 triac. The ESP32 is programmed to read GPS data from the Neo 6M module and likely transmit it via Bluetooth using the HC-05 module. The OV7725 camera module is connected to the ESP32 for image capture, and the BT139 600 triac is interfaced for controlling power to an unspecified load.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with EBYTE GNSS Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of PANDURTKU0001_1: A project utilizing EBYTE GNSS Module in a practical application
ESP8266 and GPS-RTK2 Based Real-Time GPS Tracker with Bluetooth and APC220 Communication
This circuit integrates a GPS module, an ESP8266 microcontroller, a Bluetooth module, and an APC220 RF module to collect and transmit GPS data. The ESP8266 reads GPS data from the SparkFun Qwiic GPS-RTK2 module and can communicate this data via Bluetooth and RF transmission. The system is powered by a 5V battery and includes an embedded GPS antenna for signal reception.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Yoon: A project utilizing EBYTE GNSS Module in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SeekPeek: A project utilizing EBYTE GNSS Module in a practical application
Battery-Powered GPS Tracker with ESP32 and NEO 6M
This circuit is a GPS tracking system powered by a 3.7V battery, which is charged via a TP4056 module. The ESP32 Devkit V1 microcontroller interfaces with the GPS NEO 6M module to receive location data, which can be processed and transmitted as needed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESp32_gps: A project utilizing EBYTE GNSS Module in a practical application
ESP32-Based GPS Tracker with Bluetooth Connectivity and Camera Interface
This circuit features an ESP32 microcontroller interfaced with a Neo 6M GPS Module, an OV7725 camera module, an HC-05 Bluetooth Module, and a BT139 600 triac. The ESP32 is programmed to read GPS data from the Neo 6M module and likely transmit it via Bluetooth using the HC-05 module. The OV7725 camera module is connected to the ESP32 for image capture, and the BT139 600 triac is interfaced for controlling power to an unspecified load.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • GPS tracking devices for vehicles, assets, and personal use
  • Navigation systems for drones, robots, and autonomous vehicles
  • Location-based services in IoT devices
  • Timing synchronization for communication networks and industrial systems

Technical Specifications

The EBYTE GNSS Module is designed to deliver high performance while maintaining low power consumption. Below are the key technical details:

Key Technical Details

Parameter Specification
Satellite Systems GPS, GLONASS, Galileo, BeiDou
Positioning Accuracy < 2.5 meters CEP
Time to First Fix (TTFF) Cold Start: < 30s, Hot Start: < 1s
Operating Voltage 3.3V - 5.0V
Operating Current 25mA (typical)
Communication Interface UART (default), I2C, SPI
Baud Rate (UART) 9600 bps (default, configurable)
Operating Temperature -40°C to +85°C
Dimensions 16mm x 12mm x 2.5mm

Pin Configuration and Descriptions

The EBYTE GNSS Module typically features a 10-pin interface. Below is the pinout and description:

Pin Number Pin Name Description
1 VCC Power supply input (3.3V - 5.0V)
2 GND Ground
3 TXD UART Transmit Data (output)
4 RXD UART Receive Data (input)
5 PPS Pulse Per Second output for timing synchronization
6 EN Enable pin (active high)
7 SDA I2C Data line
8 SCL I2C Clock line
9 ANT External antenna connection
10 RST Reset pin (active low)

Usage Instructions

How to Use the EBYTE GNSS Module in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V or 5.0V power source and the GND pin to ground.
  2. Communication Interface: Use the TXD and RXD pins for UART communication. Alternatively, you can use the SDA and SCL pins for I2C communication.
  3. Antenna Connection: Attach an external active antenna to the ANT pin for optimal satellite signal reception.
  4. Enable and Reset: Use the EN pin to enable the module and the RST pin to reset it if needed.
  5. Pulse Per Second (PPS): The PPS pin outputs a precise timing pulse that can be used for synchronization purposes.

Important Considerations and Best Practices

  • Antenna Placement: Ensure the external antenna has a clear view of the sky for optimal satellite signal reception.
  • Power Supply: Use a stable power source to avoid fluctuations that may affect performance.
  • UART Configuration: Configure the UART baud rate to match the module's default (9600 bps) or adjust it as needed.
  • Startup Time: Allow sufficient time for the module to acquire satellite signals, especially during a cold start.

Example: Connecting to an Arduino UNO

Below is an example of how to interface the EBYTE GNSS Module with an Arduino UNO using UART communication:

Wiring Diagram

EBYTE GNSS Module Pin Arduino UNO Pin
VCC 5V
GND GND
TXD RX (Pin 0)
RXD TX (Pin 1)

Arduino Code

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial GNSS(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
  GNSS.begin(9600);   // Initialize GNSS module at 9600 bps

  Serial.println("EBYTE GNSS Module Test");
}

void loop() {
  // Check if data is available from the GNSS module
  if (GNSS.available()) {
    // Read data from GNSS module and send it to Serial Monitor
    while (GNSS.available()) {
      char c = GNSS.read();
      Serial.print(c);
    }
  }
}

Notes:

  • Use SoftwareSerial if the Arduino's hardware UART (pins 0 and 1) is already in use.
  • Ensure the GNSS module's baud rate matches the value set in the code (9600 in this example).

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Data Output from the Module

    • Cause: Incorrect wiring or baud rate mismatch.
    • Solution: Double-check the connections and ensure the UART baud rate matches the module's configuration.
  2. Poor Satellite Signal Reception

    • Cause: Obstructed antenna placement or interference.
    • Solution: Place the antenna in an open area with a clear view of the sky. Avoid placing it near electronic devices that may cause interference.
  3. Module Not Powering On

    • Cause: Insufficient or unstable power supply.
    • Solution: Verify the power source and ensure it provides a stable voltage within the module's operating range.
  4. Frequent Loss of Signal

    • Cause: Environmental factors or faulty antenna.
    • Solution: Check the antenna connection and consider using a higher-quality antenna.

FAQs

Q: Can the EBYTE GNSS Module work indoors?
A: While the module can function indoors, satellite signal reception may be weak or unavailable. For best results, use the module outdoors or near a window.

Q: How do I change the UART baud rate?
A: The baud rate can be configured using specific AT commands. Refer to the module's datasheet for detailed instructions.

Q: Does the module support multiple satellite systems simultaneously?
A: Yes, the module can receive signals from multiple satellite constellations for improved accuracy and reliability.

Q: What type of antenna should I use?
A: Use an active GNSS antenna with a compatible connector for optimal performance. Ensure the antenna supports the satellite systems you intend to use.

This concludes the documentation for the EBYTE GNSS Module. For further details, refer to the official datasheet or contact the manufacturer.
