How to Use AC Power Supply: Examples, Pinouts, and Specs

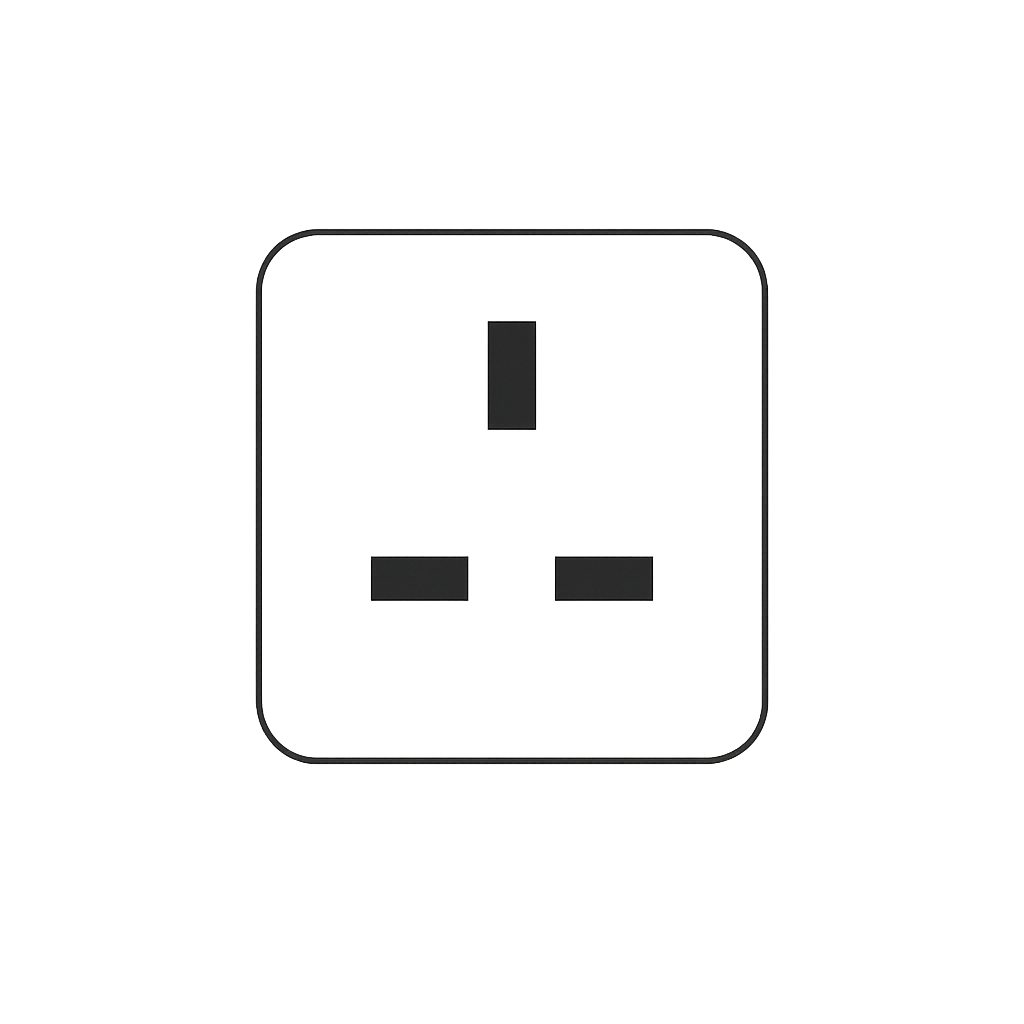

An AC Power Supply is a device that converts alternating current (AC) from the mains supply into a usable voltage for electronic circuits. It provides stable and reliable power, ensuring the proper operation of electronic devices and systems. AC power supplies are commonly used in a wide range of applications, including powering household appliances, industrial equipment, and electronic circuits in laboratories and prototyping environments.

• Powering electronic circuits and devices
• Laboratory testing and prototyping
• Industrial automation systems
• Consumer electronics (e.g., televisions, computers, and chargers)
• Medical equipment and instrumentation

Below are the general technical specifications for a typical AC Power Supply. Note that specific models may vary in their ratings and features.

• Input Voltage: 100-240V AC, 50/60 Hz (varies by region)
• Output Voltage: 5V, 12V, 24V, or other fixed/adjustable values
• Output Current: Typically ranges from 0.5A to 10A or higher
• Power Rating: 10W to 500W or more, depending on the application
• Efficiency: 80% to 95% (depending on design)
• Regulation: ±1% or better for stable output voltage
• Protection Features: Overvoltage, overcurrent, short-circuit, and thermal protection

The pin configuration of an AC Power Supply depends on its design. Below is a general example for a power supply with input and output terminals:

1. Connect the AC Input:

   • Ensure the power supply is rated for your mains voltage (e.g., 110V or 220V AC).
   • Connect the live (L) and neutral (N) wires from the mains to the corresponding input terminals.
   • Connect the ground (GND) terminal to a proper earth ground for safety.

2. Connect the DC Output:

   • Identify the required output voltage and current for your circuit.
   • Connect the positive (+) and negative (-) output terminals to your circuit's power input.

3. Power On:

   • Turn on the power supply using its switch (if available).
   • Verify the output voltage using a multimeter before connecting sensitive components.

4. Load Connection:

   • Gradually connect the load to the power supply, ensuring it does not exceed the rated current.

• Voltage Selection: If the power supply has an adjustable output, set the voltage to the required level before connecting the load.
• Current Limiting: Use a power supply with current-limiting features to protect your circuit from overcurrent.
• Heat Dissipation: Ensure proper ventilation around the power supply to prevent overheating.
• Safety: Always disconnect the power supply from the mains before making any wiring changes.
• Polarity: Double-check the polarity of the output connections to avoid damaging your circuit.

To power an Arduino UNO using a 12V AC Power Supply:

1. Connect the positive (+) output terminal of the power supply to the Arduino's VIN pin.
2. Connect the negative (-) output terminal to the Arduino's GND pin.
3. Ensure the power supply is set to 12V and does not exceed 1A of current.

Here is an example Arduino sketch to blink an LED while powered by the AC Power Supply:

// Blink an LED connected to pin 13 on the Arduino UNO
// Ensure the AC Power Supply is providing 12V to the Arduino's VIN pin

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect wiring or blown fuse.
   • Solution: Verify the input connections and check for a blown fuse. Replace the fuse if necessary.

2. Overheating:

   • Cause: Insufficient ventilation or excessive load.
   • Solution: Ensure proper airflow around the power supply and reduce the load if it exceeds the rated capacity.

3. Voltage Fluctuations:

   • Cause: Unstable mains input or faulty power supply.
   • Solution: Use a voltage stabilizer or replace the power supply if it is defective.

4. Circuit Not Powering On:

   • Cause: Incorrect polarity or insufficient output voltage.
   • Solution: Double-check the polarity and ensure the output voltage matches the circuit's requirements.

• Use a multimeter to measure the output voltage and verify it matches the expected value.
• Inspect all connections for loose wires or poor contact.
• If the power supply has adjustable output, ensure it is set to the correct voltage.
• Refer to the manufacturer's datasheet for specific troubleshooting steps and safety guidelines.

By following this documentation, users can safely and effectively utilize an AC Power Supply in their electronic projects and applications.
