How to Use Soil Moisture Sensor: Examples, Pinouts, and Specs

The Soil Moisture Sensor is a device used to measure the moisture content in soil. It provides real-time data that helps users manage irrigation systems and optimize plant growth. This sensor is widely used in agricultural automation, gardening, and environmental monitoring systems. By integrating it into a circuit, users can monitor soil conditions and make informed decisions to ensure healthy plant growth.

• Automated irrigation systems
• Smart gardening projects
• Agricultural monitoring
• Environmental research and data collection

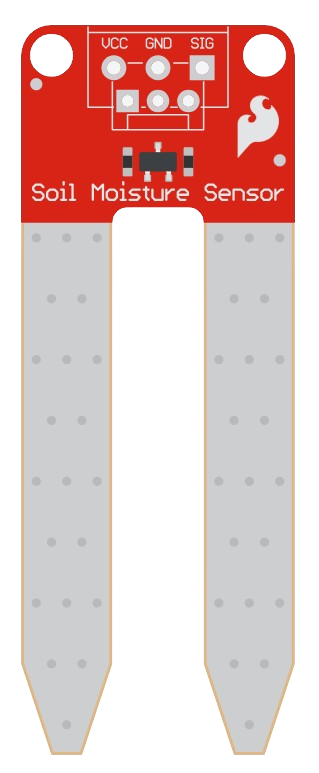

The Soil Moisture Sensor typically consists of two main parts: the probe (which detects soil moisture) and the control board (which processes the signal). Below are the key technical details:

• Operating Voltage: 3.3V - 5V
• Output Types: Analog and Digital
• Current Consumption: < 20mA
• Moisture Detection Range: 0% (dry) to 100% (wet)
• Dimensions: Varies by model, typically ~60mm x 20mm (probe)

1. Connect the Sensor:

   • Connect the VCC pin of the control board to a 3.3V or 5V power source.
   • Connect the GND pin to the ground of the power source.
   • Connect the A0 pin to an analog input pin on your microcontroller (e.g., Arduino).
   • Optionally, connect the D0 pin to a digital input pin if you want to use the digital output.

2. Insert the Probe:

   • Place the probe into the soil at the desired depth. Ensure the probe is clean and free of debris for accurate readings.

3. Adjust the Threshold (Optional):

   • Use the potentiometer on the control board to set the moisture threshold for the digital output (D0). Turn clockwise to increase sensitivity and counterclockwise to decrease it.

4. Read the Output:

   • For analog readings, monitor the voltage on the A0 pin. Higher voltage indicates wetter soil.
   • For digital readings, check the state of the D0 pin (HIGH for wet, LOW for dry).

• Avoid leaving the probe in the soil for extended periods, as it may corrode over time.
• Clean the probe after use to prevent residue buildup, which can affect accuracy.
• Use a pull-down resistor on the digital output pin if needed to stabilize the signal.
• For long-term use, consider waterproofing the connections to prevent damage.

// Example code to read soil moisture levels using an Arduino UNO
const int analogPin = A0;  // Analog pin connected to A0 on the sensor
const int digitalPin = 7; // Digital pin connected to D0 on the sensor
int moistureValue = 0;    // Variable to store analog moisture reading

void setup() {
  Serial.begin(9600);      // Initialize serial communication
  pinMode(digitalPin, INPUT); // Set digital pin as input
}

void loop() {
  // Read analog value from the sensor
  moistureValue = analogRead(analogPin);

  // Print the analog value to the Serial Monitor
  Serial.print("Soil Moisture (Analog): ");
  Serial.println(moistureValue);

  // Read digital value from the sensor
  int digitalState = digitalRead(digitalPin);

  // Print the digital state to the Serial Monitor
  Serial.print("Soil Moisture (Digital): ");
  if (digitalState == HIGH) {
    Serial.println("Wet");
  } else {
    Serial.println("Dry");
  }

  delay(1000); // Wait for 1 second before the next reading
}

1. Inconsistent Readings:

   • Cause: Dirty or corroded probe.
   • Solution: Clean the probe with a soft cloth and ensure it is free of debris.

2. No Output from the Sensor:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check all connections and ensure the power supply matches the sensor's requirements.

3. Digital Output Always HIGH or LOW:

   • Cause: Threshold not properly adjusted.
   • Solution: Use the potentiometer on the control board to adjust the threshold.

4. Sensor Damaged by Water:

   • Cause: Prolonged exposure to moisture or improper waterproofing.
   • Solution: Use a waterproof enclosure for the control board and connections.

• Q: Can the sensor be used outdoors?
  A: Yes, but ensure the control board and connections are protected from water and weather.

• Q: How do I interpret the analog readings?
  A: The analog output ranges from 0 to 1023 (on a 10-bit ADC). Higher values indicate wetter soil.

• Q: Can I use this sensor with a Raspberry Pi?
  A: Yes, but you will need an ADC (Analog-to-Digital Converter) to read the analog output, as the Raspberry Pi lacks built-in ADC functionality.

• Q: How long does the sensor last?
  A: The lifespan depends on usage and maintenance. Regular cleaning and proper storage can extend its life.

By following this documentation, you can effectively use the Soil Moisture Sensor in your projects to monitor and manage soil conditions.
