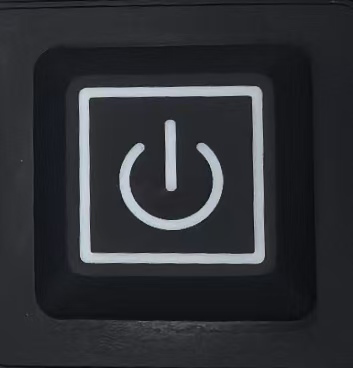

Image of switch
Cirkit Designer LogoDesign with switch in Cirkit Designer

Introduction

A switch is an electrical component that can open or close a circuit, allowing or interrupting the flow of current. It is one of the most fundamental components in electronics, used to control the operation of devices by manually or automatically toggling the flow of electricity. Switches come in various types, such as toggle switches, push-button switches, slide switches, and rotary switches, each suited for specific applications.

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Toggle Switch Controlled Lamp Circuit with Banana Sockets
Image of STAIRCASE: A project utilizing switch in a practical application
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
SPST Rocker Switch Array Circuit
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Toggle Switch Circuit
Image of EXP. 7 E: A project utilizing switch in a practical application
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Digital Logic State Indicator with Flip-Flops and Logic Gates
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STAIRCASE: A project utilizing switch in a practical application
Toggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
SPST Rocker Switch Array Circuit
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP. 7 E: A project utilizing switch in a practical application
Battery-Powered LED Toggle Switch Circuit
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
Digital Logic State Indicator with Flip-Flops and Logic Gates
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Turning devices on or off (e.g., lights, fans, appliances)
  • Mode selection in electronic devices
  • Reset functionality in circuits
  • User input in embedded systems (e.g., Arduino projects)
  • Safety mechanisms in industrial equipment

Technical Specifications

Switches vary widely in their specifications depending on the type and intended application. Below are general specifications for a basic single-pole single-throw (SPST) switch:

Parameter Value
Voltage Rating Typically 3V to 250V (AC or DC)
Current Rating 0.1A to 15A (varies by model)
Contact Resistance < 50 mΩ
Insulation Resistance > 100 MΩ
Mechanical Life 10,000 to 1,000,000 operations

Pin Configuration and Descriptions

For a basic SPST switch, the pin configuration is straightforward:

Pin Name Description
Pin 1 Input terminal for the electrical signal
Pin 2 Output terminal for the electrical signal

For more complex switches (e.g., SPDT, DPDT), additional pins are used for multiple circuits or poles.

Usage Instructions

How to Use the Component in a Circuit

  1. Identify the Terminals: For a basic SPST switch, locate the two terminals (Pin 1 and Pin 2). These are typically interchangeable.
  2. Connect the Switch:
    • Connect one terminal to the power source or signal input.
    • Connect the other terminal to the load or circuit output.
  3. Toggle the Switch: Flip, press, or slide the switch to open or close the circuit, controlling the flow of current.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the switch can handle the voltage and current of your circuit to avoid damage or failure.
  • Debouncing: Mechanical switches may produce noise or "bouncing" when toggled. Use a capacitor or software debouncing techniques in digital circuits.
  • Mounting: Secure the switch properly to prevent accidental toggling or damage.
  • Safety: For high-voltage or high-current applications, use switches with appropriate insulation and safety certifications.

Example: Connecting a Switch to an Arduino UNO

Below is an example of using a push-button switch with an Arduino UNO to control an LED:

// Define pin numbers
const int switchPin = 2;  // Pin connected to the switch
const int ledPin = 13;    // Pin connected to the LED

void setup() {
  pinMode(switchPin, INPUT_PULLUP); // Set switch pin as input with pull-up resistor
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int switchState = digitalRead(switchPin); // Read the state of the switch

  if (switchState == LOW) { // If the switch is pressed (LOW due to pull-up)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Notes:

  • The INPUT_PULLUP mode enables the internal pull-up resistor, simplifying the circuit.
  • The switch should be connected between the pin and ground.

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Switch Not Working:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check the wiring and ensure the switch terminals are properly connected.
  2. Switch Generates Noise in Digital Circuits:

    • Cause: Mechanical bouncing of the switch contacts.
    • Solution: Use a capacitor for hardware debouncing or implement software debouncing in your code.
  3. Switch Overheats or Fails:

    • Cause: Exceeding the voltage or current rating of the switch.
    • Solution: Use a switch with appropriate ratings for your circuit.
  4. LED Does Not Turn On in Arduino Example:

    • Cause: Incorrect pin configuration or faulty components.
    • Solution: Verify the pin numbers in the code and check the switch, LED, and connections.

Tips for Troubleshooting

  • Use a multimeter to test the continuity of the switch when toggled.
  • For digital circuits, monitor the switch state using the Arduino Serial Monitor to debug issues.
  • Ensure the power supply is stable and within the switch's rated range.

By following this documentation, you can effectively use a switch in your electronic projects and troubleshoot common issues with ease.
