How to Use Arduino UNO: Examples, Pinouts, and Specs

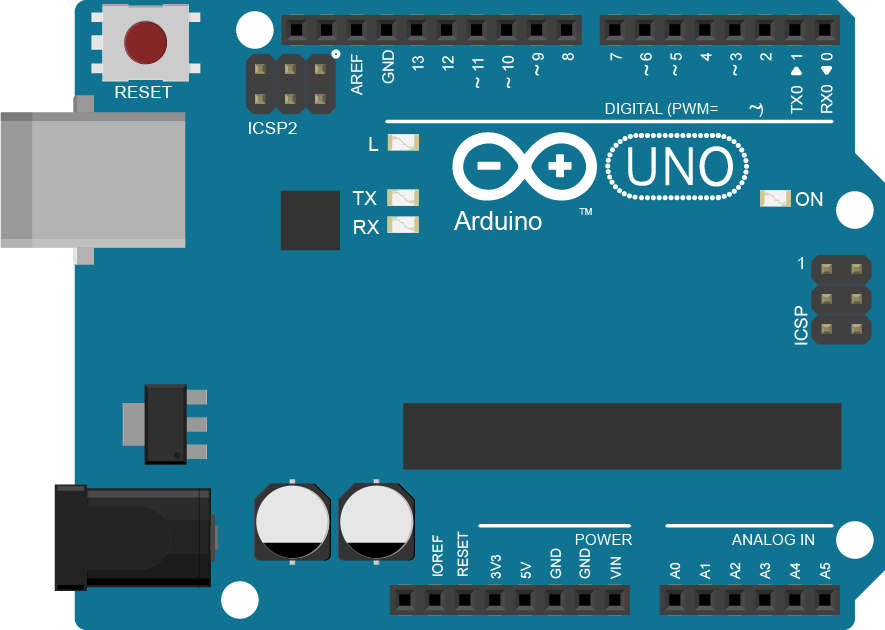

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its simplicity, open-source nature, and extensive community support make it an excellent choice for beginners and professionals alike.

• Prototyping and development of IoT devices
• Robotics and automation projects
• Sensor data acquisition and processing
• Home automation systems
• Educational purposes for learning programming and electronics

1. Powering the Board:

   • Connect the Arduino UNO to your computer via a USB cable for programming and power.
   • Alternatively, use an external power supply (7-12V) connected to the VIN pin or the DC barrel jack.

2. Programming the Board:

   • Install the Arduino IDE from the official Arduino website.
   • Connect the board to your computer and select the correct board ("Arduino UNO") and port in the IDE.
   • Write your code in the IDE and upload it to the board using the "Upload" button.

3. Connecting Components:

   • Use the digital and analog pins to connect sensors, actuators, and other components.
   • Ensure that the total current drawn by the connected components does not exceed the board's limits.

• Avoid short circuits between pins or components to prevent damage to the board.
• Use resistors with LEDs to limit current and prevent damage to the pins.
• When using external power, ensure the voltage is within the recommended range (7-12V).
• Use the onboard voltage regulators (5V and 3.3V) to power external components safely.
• Always double-check your connections before powering the board.

The following example demonstrates how to blink an LED connected to digital pin 13:

// Blink an LED connected to pin 13
// The LED will turn ON for 1 second and OFF for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

1. The board is not detected by the computer:

   • Ensure the USB cable is properly connected and functional.
   • Check if the correct port is selected in the Arduino IDE.
   • Install or update the necessary USB drivers.

2. Code does not upload to the board:

   • Verify that the correct board ("Arduino UNO") is selected in the Arduino IDE.
   • Ensure no other program is using the same COM port.
   • Press the RESET button on the board and try uploading again.

3. Components are not working as expected:

   • Double-check the wiring and connections.
   • Ensure the components are compatible with the Arduino UNO's voltage and current ratings.
   • Use a multimeter to test the components and connections.

• Can I power the Arduino UNO with batteries?
  Yes, you can use a battery pack (7-12V) connected to the VIN pin or the DC barrel jack.

• What is the maximum current the Arduino UNO can supply?
  The 5V pin can supply up to 500 mA when powered via USB, and the 3.3V pin can supply up to 50 mA.

• Can I use the Arduino UNO for wireless communication?
  Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers with the Arduino UNO.

• How do I reset the Arduino UNO?
  Press the RESET button on the board or connect the RESET pin to GND momentarily.

By following this documentation, you can effectively use the Arduino UNO for a wide range of projects and applications.
