How to Use 12V 4.5AH BATTERY: Examples, Pinouts, and Specs

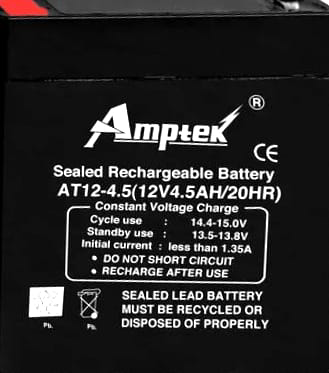

The 12V 4.5AH battery is a sealed lead-acid (SLA) rechargeable battery that provides a nominal voltage of 12 volts and a capacity of 4.5 ampere-hours (Ah). It is widely used in applications requiring reliable and consistent power delivery, such as uninterruptible power supplies (UPS), emergency lighting systems, alarm systems, and small-scale renewable energy setups. Its compact size and maintenance-free design make it a popular choice for both hobbyists and professionals.

• Backup power for UPS systems
• Emergency lighting and alarm systems
• Powering small DC motors and electronic devices
• Renewable energy storage (e.g., solar panels)
• Robotics and DIY electronics projects

The following table outlines the key technical details of the 12V 4.5AH battery:

The 12V 4.5AH battery typically features two spade terminals for electrical connections. The terminal configuration is as follows:

1. Determine the Load Requirements: Ensure the connected load does not exceed the battery's capacity or discharge current rating.
2. Connect the Terminals:
   • Use appropriate connectors (e.g., spade connectors) to attach wires to the battery terminals.
   • Connect the positive terminal (+) to the positive side of the circuit and the negative terminal (-) to the negative side.
3. Charging the Battery:
   • Use a compatible SLA battery charger with the correct voltage and current ratings.
   • Set the charger to the recommended charging voltage (14.4V - 15.0V for cyclic use or 13.5V - 13.8V for float use).
   • Avoid overcharging or deep discharging the battery to prolong its lifespan.
4. Monitor the Battery:
   • Use a voltmeter to periodically check the battery voltage.
   • Recharge the battery when the voltage drops below 11.8V to prevent deep discharge.

• Avoid Overdischarge: Discharging the battery below 10.5V can cause permanent damage.
• Temperature Management: Operate the battery within the specified temperature range to ensure optimal performance.
• Storage: Store the battery in a cool, dry place when not in use. Recharge it every 3-6 months to prevent self-discharge.
• Safety: Do not short-circuit the terminals or expose the battery to fire or water.

The 12V 4.5AH battery can be used to power an Arduino UNO via a voltage regulator or DC-DC converter to step down the voltage to 5V. Below is an example circuit and code:

1. Connect the battery's positive terminal to the input of a 5V DC-DC converter.
2. Connect the output of the DC-DC converter to the Arduino UNO's 5V and GND pins.
3. Ensure proper polarity to avoid damaging the Arduino.

// Example code to blink an LED using an Arduino UNO powered by a 12V 4.5AH battery
// The battery is connected via a 5V DC-DC converter to the Arduino's 5V pin.

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Can I use this battery in parallel or series configurations?

   • Yes, you can connect multiple batteries in parallel to increase capacity or in series to increase voltage. Ensure all batteries are of the same type and charge level.

2. How long will the battery last on a full charge?

   • The runtime depends on the load. For example, a 1A load will last approximately 4.5 hours (4.5Ah ÷ 1A).

3. Is the battery safe to use indoors?

   • Yes, the sealed lead-acid design prevents leaks and is safe for indoor use. However, ensure proper ventilation during charging.

4. What happens if I overcharge the battery?

   • Overcharging can cause overheating, reduced lifespan, or damage. Always use a charger with overcharge protection.

By following these guidelines, you can ensure safe and efficient use of the 12V 4.5AH battery in your projects and applications.
