How to Use MP3 BT 4.1 Decoder: Examples, Pinouts, and Specs

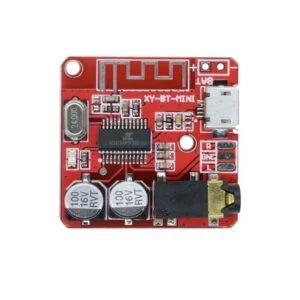

The MP3 BT 4.1 Decoder is an electronic module designed for decoding MP3 audio files and streaming audio via Bluetooth 4.1 technology. This component is widely used in wireless audio systems, DIY audio projects, and portable speakers. It provides a convenient way to add audio playback functionality to various electronic devices without the need for complex wiring or additional audio decoding hardware.

• DIY Bluetooth speakers
• Wireless audio systems for home or automotive use
• Portable audio players
• Interactive art installations with audio output
• Educational projects involving audio processing

• Supported Bluetooth Version: 4.1
• Audio Decoding: MP3, WMA, WAV, FLAC
• Supply Voltage: 3.7V to 5V DC
• Output Power: 3W (typical) per channel at 4Ω
• Signal-to-Noise Ratio (SNR): ≥90dB
• Frequency Response: 20Hz to 20kHz

1. Power Supply: Connect the VCC pin to a 3.7V to 5V DC power source and the GND pin to the ground of the power supply.
2. Speaker Connection: Attach a speaker to the SPK+ and SPK- pins, ensuring correct polarity.
3. UART Communication: To control the module via UART, connect the TXD pin to the RXD pin of your microcontroller unit (MCU) and the RXD pin to the TXD pin of the MCU.
4. Status LED: Connect an LED to the LED pin to indicate the status of the Bluetooth connection.
5. External Button: If needed, connect an external button to the BTN pin for additional control functionality.

• Ensure that the power supply voltage does not exceed the specified range to prevent damage to the module.
• Use a current-limiting resistor with the status LED to prevent excessive current flow.
• When connecting to an MCU like an Arduino UNO, remember to set the correct baud rate for UART communication.
• Keep the module away from sources of electromagnetic interference to ensure stable Bluetooth connectivity.

#include <SoftwareSerial.h>

SoftwareSerial mySerial(10, 11); // RX, TX

void setup() {
  // Start the hardware serial communication
  Serial.begin(9600);

  // Start the software serial communication
  mySerial.begin(9600);

  // Send command to the MP3 BT 4.1 Decoder to start pairing
  mySerial.println("AT+PAIR");
}

void loop() {
  // Check if data has been received from the MP3 BT 4.1 Decoder
  if (mySerial.available()) {
    Serial.write(mySerial.read());
  }

  // Check if data has been received from the Serial Monitor
  if (Serial.available()) {
    mySerial.write(Serial.read());
  }
}

• No Audio Output: Ensure that the speaker is properly connected and that the power supply is within the specified voltage range.
• Unable to Pair: Check that the Bluetooth device is in range and that the MP3 BT 4.1 Decoder is in pairing mode.
• Intermittent Bluetooth Connection: Move the module away from sources of interference or obstacles that may block the signal.

• Power Issues: Verify the power supply with a multimeter and check for any loose connections.
• Speaker Connectivity: Use a continuity tester to ensure that the speaker wires are not broken and are securely connected to the module.
• UART Communication: Double-check the UART connections and ensure that the baud rate matches between the module and the MCU.

Q: Can the MP3 BT 4.1 Decoder be used with a stereo speaker setup? A: Yes, the module can drive two speakers for a stereo setup. Connect each speaker to a separate SPK+ and SPK- pair.

Q: What is the maximum range of the Bluetooth connection? A: The typical range for Bluetooth 4.1 is up to 60 meters in open space, but this can be reduced by obstacles and interference.

Q: How do I change the Bluetooth name of the module? A: You can send a UART command such as AT+NAME=YourDeviceName to set a custom name for the Bluetooth connection.

Q: Can I control the volume through UART? A: Yes, you can send specific commands to adjust the volume. Refer to the module's command set documentation for the exact commands.

This documentation provides a comprehensive guide to using the MP3 BT 4.1 Decoder. For further assistance, consult the manufacturer's datasheet or contact technical support.
