How to Use LCD I2C: Examples, Pinouts, and Specs

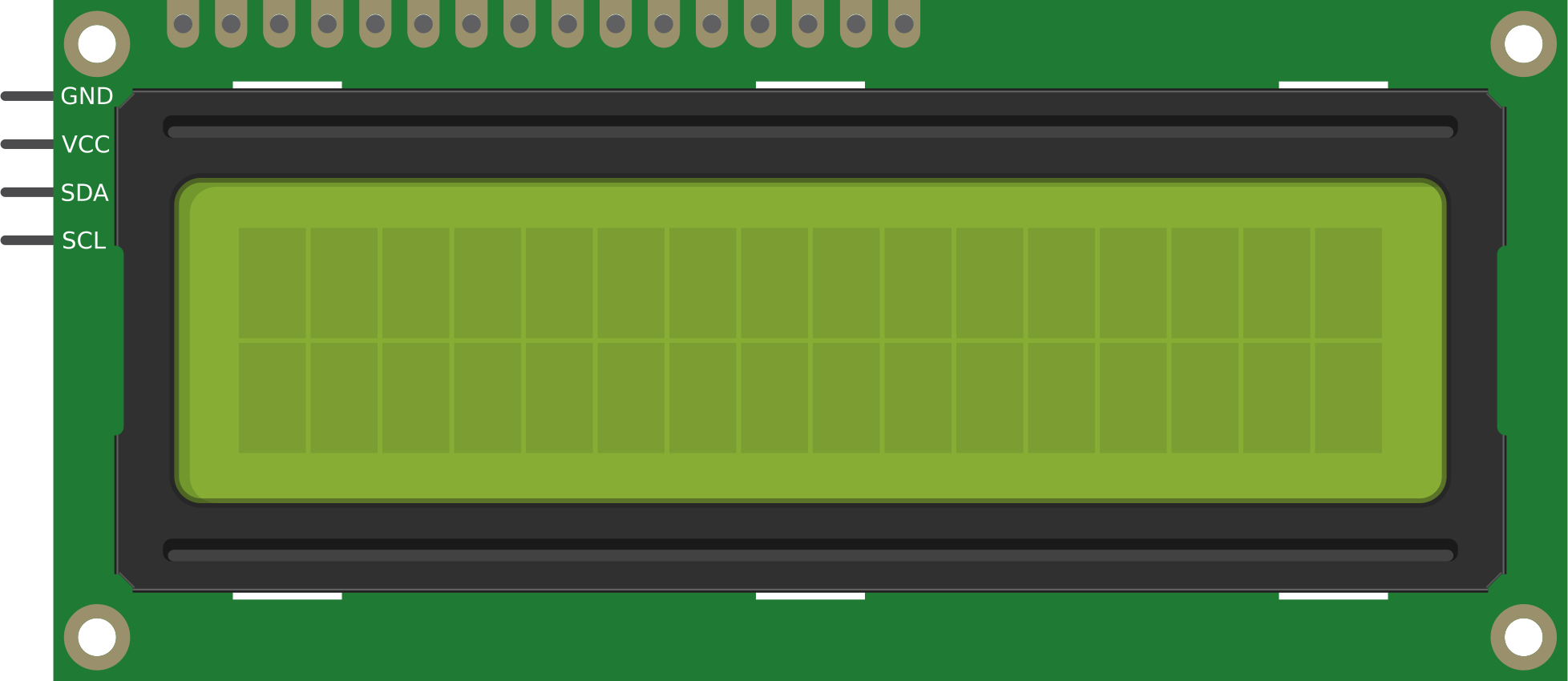

Image of LCD I2CDesign with LCD I2C in Cirkit Designer

Introduction

The LCD I2C is a Liquid Crystal Display module that utilizes the I2C (Inter-Integrated Circuit) protocol for communication. This module simplifies the process of connecting and controlling an LCD with microcontrollers by reducing the number of pins required. Instead of using multiple data and control pins, the I2C interface requires only two pins: SDA (data line) and SCL (clock line). This makes it an excellent choice for projects with limited GPIO availability.

Explore Projects Built with LCD I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32-Controlled I2C LCD Display: A project utilizing LCD I2C in a practical application
ESP32-Controlled I2C LCD Display

This circuit connects an ESP32 microcontroller to an I2C LCD 16x2 display. The ESP32 powers the LCD and communicates with it via the I2C protocol using its SDA and SCL lines connected to the corresponding pins on the LCD. The embedded code on the ESP32 is programmed to display messages on the LCD screen in a loop, which can be used for user interface or status display purposes.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

Key Technical Details

Pin Configuration and Descriptions

The LCD I2C module has a 4-pin header for connection. Below is the pinout:

Pin Name Description
GND Ground (0V)
VCC Power supply (5V DC)
SDA Serial Data Line (I2C data)
SCL Serial Clock Line (I2C clock)

Usage Instructions

How to Use the LCD I2C in a Circuit

  1. Connect the Module:

    • Connect the GND pin to the ground of your microcontroller.
    • Connect the VCC pin to the 5V power supply of your microcontroller.
    • Connect the SDA pin to the I2C data pin of your microcontroller (e.g., A4 on Arduino UNO).
    • Connect the SCL pin to the I2C clock pin of your microcontroller (e.g., A5 on Arduino UNO).
  2. Install Required Libraries:

    • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE.
  3. Write and Upload Code:

    • Use the example code below to initialize and display text on the LCD.

Example Code for Arduino UNO

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and a 16x2 display
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first row, first column
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the second row, first column
  lcd.print("LCD I2C Module");   // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Text Displayed on the LCD:

    • Verify the wiring connections, especially SDA and SCL.
    • Check the I2C address and ensure it matches the one in your code.
    • Adjust the contrast using the potentiometer.
  2. Flickering or Unstable Display:

    • Ensure the power supply is stable and sufficient (5V DC).
    • Check for loose connections or faulty jumper wires.
  3. Backlight Not Turning On:

    • Confirm that the lcd.backlight() function is called in your code.
    • Check the module for physical damage or soldering issues.
  4. I2C Address Not Detected:

    • Run an I2C scanner sketch to detect the module's address.
    • Ensure the SDA and SCL pins are correctly connected to the microcontroller.

FAQs

Q: Can I use the LCD I2C with a 3.3V microcontroller?
A: Yes, but you may need a logic level shifter to safely interface the 3.3V microcontroller with the 5V LCD module.

Q: How do I display custom characters?
A: Use the createChar() function in the LiquidCrystal_I2C library to define and display custom characters.

Q: Can I connect multiple I2C devices to the same microcontroller?
A: Yes, as long as each device has a unique I2C address. Use an I2C multiplexer if address conflicts occur.

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the pull-up resistor values and communication speed, but it is typically limited to 1 meter for reliable operation.
