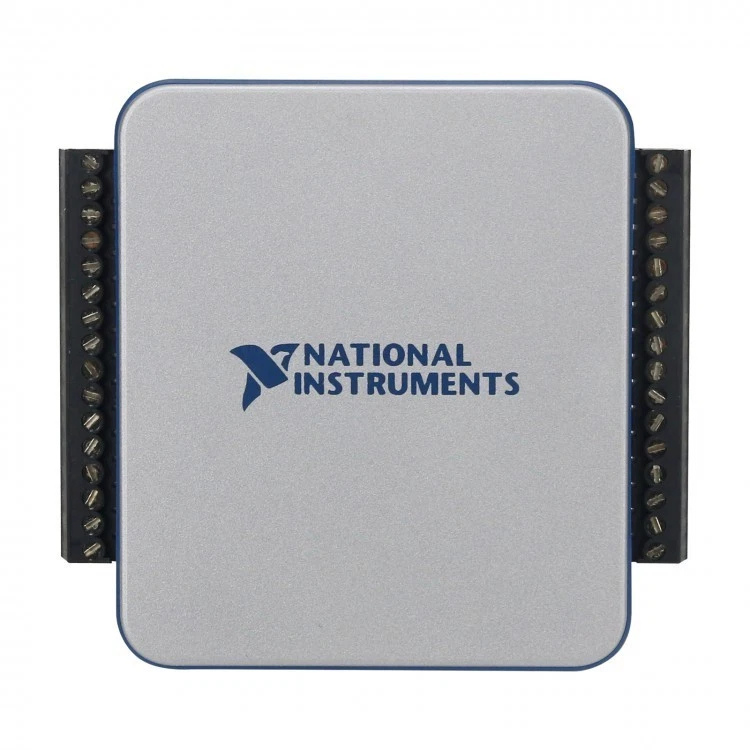

Image of USB-6002
Cirkit Designer LogoDesign with USB-6002 in Cirkit Designer

Introduction

The USB-6002, manufactured by NI (National Instruments), is a multifunction data acquisition (DAQ) device designed for seamless integration with computers via USB. It provides a versatile platform for analog input, digital I/O, and counter/timer functionalities, making it ideal for a wide range of measurement and control applications. Its compact design and plug-and-play USB connectivity make it suitable for both laboratory and field use.

Explore Projects Built with USB-6002

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Laptop-Connected Adalm Pluto SDR with Dual Antennas
Image of Zidan Project: A project utilizing USB-6002 in a practical application
This circuit connects an Adalm Pluto Software Defined Radio (SDR) to a laptop via a Type-B to USB cable, allowing the laptop to control the SDR and process signals. Additionally, two antennas are connected to the Adalm Pluto SDR, which are likely used for transmitting and receiving radio signals as part of the SDR's functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Based Security System with Fingerprint Authentication and SMS Alerts
Image of Door security system: A project utilizing USB-6002 in a practical application
This circuit features an Arduino Mega 2560 microcontroller interfaced with a SIM800L GSM module, two fingerprint scanners, an I2C LCD display, an IR sensor, and a piezo buzzer. Power management is handled by a PowerBoost 1000 Basic Pad USB, a TP4056 charging module, and a Li-ion 18650 battery, with an option to use a Mini AC-DC 110V-230V to 5V 700mA module for direct power supply. The primary functionality appears to be a security system with GSM communication capabilities, biometric access control, and visual/audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
FTDI to UART Adapter with J26 Connector
Image of J26 CLOSEUP: A project utilizing USB-6002 in a practical application
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Bluetooth-Controlled Robotic System with MPU6050 and Motor Driver
Image of road turning detect automatically vehicles slow: A project utilizing USB-6002 in a practical application
This circuit features two Arduino UNO microcontrollers, an MPU6050 sensor, an L298N motor driver, two DC motors, a servo motor, and an HC-05 Bluetooth module. The Arduinos control the motors via the L298N driver and receive sensor data from the MPU6050, while the Bluetooth module allows for wireless communication. Power is supplied through a USB power source.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with USB-6002

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Zidan Project: A project utilizing USB-6002 in a practical application
Laptop-Connected Adalm Pluto SDR with Dual Antennas
This circuit connects an Adalm Pluto Software Defined Radio (SDR) to a laptop via a Type-B to USB cable, allowing the laptop to control the SDR and process signals. Additionally, two antennas are connected to the Adalm Pluto SDR, which are likely used for transmitting and receiving radio signals as part of the SDR's functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Door security system: A project utilizing USB-6002 in a practical application
Arduino Mega 2560 Based Security System with Fingerprint Authentication and SMS Alerts
This circuit features an Arduino Mega 2560 microcontroller interfaced with a SIM800L GSM module, two fingerprint scanners, an I2C LCD display, an IR sensor, and a piezo buzzer. Power management is handled by a PowerBoost 1000 Basic Pad USB, a TP4056 charging module, and a Li-ion 18650 battery, with an option to use a Mini AC-DC 110V-230V to 5V 700mA module for direct power supply. The primary functionality appears to be a security system with GSM communication capabilities, biometric access control, and visual/audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J26 CLOSEUP: A project utilizing USB-6002 in a practical application
FTDI to UART Adapter with J26 Connector
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of road turning detect automatically vehicles slow: A project utilizing USB-6002 in a practical application
Arduino UNO-Based Bluetooth-Controlled Robotic System with MPU6050 and Motor Driver
This circuit features two Arduino UNO microcontrollers, an MPU6050 sensor, an L298N motor driver, two DC motors, a servo motor, and an HC-05 Bluetooth module. The Arduinos control the motors via the L298N driver and receive sensor data from the MPU6050, while the Bluetooth module allows for wireless communication. Power is supplied through a USB power source.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Data logging and monitoring
  • Sensor interfacing and signal acquisition
  • Control systems and automation
  • Prototyping and educational projects
  • Laboratory experiments and research

Technical Specifications

Key Technical Details

Parameter Specification
Analog Input Channels 8 single-ended or 4 differential
Analog Input Resolution 16 bits
Analog Input Range ±10 V, ±5 V, ±2 V, ±1 V
Sampling Rate (Max) 50 kS/s (aggregate)
Digital I/O Channels 13 bidirectional
Digital I/O Voltage Levels 0–5 V (TTL compatible)
Counter/Timer Channels 1
Counter Resolution 32 bits
USB Interface USB 2.0
Power Supply USB-powered
Operating Temperature 0 °C to 45 °C

Pin Configuration and Descriptions

The USB-6002 features a 16-pin screw terminal block for easy connectivity. Below is the pin configuration:

Pin Number Signal Name Description
1 AI 0+ Analog Input Channel 0 Positive
2 AI 0- Analog Input Channel 0 Negative
3 AI 1+ Analog Input Channel 1 Positive
4 AI 1- Analog Input Channel 1 Negative
5 GND Ground
6 AO 0 Analog Output Channel 0
7 AO 1 Analog Output Channel 1
8 PFI 0 Programmable Function Interface 0
9 PFI 1 Programmable Function Interface 1
10 DIO 0 Digital I/O Channel 0
11 DIO 1 Digital I/O Channel 1
12 DIO 2 Digital I/O Channel 2
13 DIO 3 Digital I/O Channel 3
14 +5 V 5 V Power Output
15 GND Ground
16 NC Not Connected

Usage Instructions

How to Use the USB-6002 in a Circuit

  1. Connect the Device to a Computer: Use a USB cable to connect the USB-6002 to a computer. Ensure the NI-DAQmx driver is installed for proper operation.
  2. Power the Device: The USB-6002 is USB-powered, so no external power supply is required.
  3. Connect Signals: Use the screw terminal block to connect analog inputs, digital I/O, or other signals as needed.
  4. Configure in Software: Use NI software such as LabVIEW or NI MAX to configure the device, set up channels, and acquire data.

Important Considerations and Best Practices

  • Signal Conditioning: Ensure proper signal conditioning (e.g., filtering, amplification) for accurate measurements.
  • Grounding: Connect all grounds (GND) properly to avoid noise and ensure signal integrity.
  • Input Voltage Limits: Do not exceed the specified input voltage range to prevent damage to the device.
  • Sampling Rate: Distribute the sampling rate appropriately across channels when using multiple analog inputs.
  • Software Compatibility: The USB-6002 is compatible with NI-DAQmx, LabVIEW, and other NI software tools.

Example Code for Arduino UNO Integration

Although the USB-6002 is primarily used with NI software, it can interface with an Arduino UNO for digital I/O control. Below is an example of controlling a digital output pin on the USB-6002 using an Arduino:

// Example: Controlling a digital output pin on the USB-6002
// This code toggles a digital output pin connected to the USB-6002
// Ensure proper wiring between the Arduino and USB-6002

const int usb6002Pin = 7; // Pin on Arduino connected to USB-6002 DIO 0

void setup() {
  pinMode(usb6002Pin, OUTPUT); // Set the pin as an output
}

void loop() {
  digitalWrite(usb6002Pin, HIGH); // Set the pin HIGH
  delay(1000); // Wait for 1 second
  digitalWrite(usb6002Pin, LOW);  // Set the pin LOW
  delay(1000); // Wait for 1 second
}

Note: Ensure proper voltage level translation if the Arduino operates at 3.3 V logic levels, as the USB-6002 uses 5 V TTL logic.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Device Not Recognized by Computer:

    • Ensure the USB cable is securely connected.
    • Verify that the NI-DAQmx driver is installed and up to date.
    • Try connecting to a different USB port or computer.
  2. Incorrect or No Signal Measurement:

    • Check the wiring and ensure proper connections to the terminal block.
    • Verify that the input signal is within the specified voltage range.
    • Confirm that the correct channel is selected in the software.
  3. Noise in Measurements:

    • Use shielded cables and proper grounding to minimize noise.
    • Add filtering to the input signal if necessary.
  4. Digital I/O Not Responding:

    • Ensure the digital I/O pin is configured correctly in the software.
    • Check for any short circuits or incorrect wiring.

FAQs

Q: Can the USB-6002 be used with third-party software?
A: Yes, the USB-6002 can be used with third-party software that supports NI-DAQmx or provides APIs for data acquisition.

Q: What is the maximum cable length for USB connectivity?
A: The maximum recommended USB cable length is 5 meters. Use a USB repeater or hub for longer distances.

Q: Can the USB-6002 output analog signals?
A: Yes, the USB-6002 has two analog output channels (AO 0 and AO 1) for generating signals.

Q: Is the USB-6002 suitable for portable applications?
A: Yes, its compact size and USB-powered design make it ideal for portable and field applications.
