How to Use led: Examples, Pinouts, and Specs

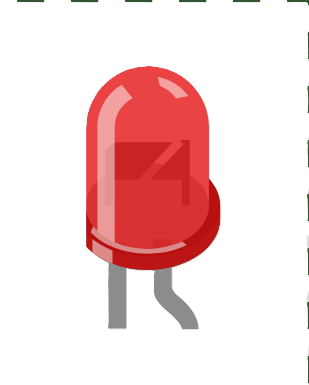

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient, have a long lifespan, and are commonly used for indicators, displays, and lighting. They are available in various colors, sizes, and brightness levels, making them versatile for a wide range of applications.

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Status indicators on electronic devices
  • Backlighting for displays
  • Decorative and architectural lighting
  • Automotive lighting (e.g., brake lights, turn signals)
  • Flashlights and portable lighting
  • Infrared LEDs for remote controls and sensors

Technical Specifications

Key Technical Details

  • Forward Voltage (Vf): Typically 1.8V to 3.3V (varies by color)
    • Red: ~1.8V to 2.2V
    • Green: ~2.0V to 3.0V
    • Blue/White: ~3.0V to 3.3V
  • Forward Current (If): Typically 10mA to 20mA (standard LEDs)
  • Power Dissipation: ~20mW to 75mW
  • Viewing Angle: 20° to 120° (varies by LED type)
  • Lifespan: 25,000 to 100,000 hours (depending on usage and quality)

Pin Configuration and Descriptions

Pin Name Description
Anode (+) The longer leg of the LED; connects to the positive terminal of the circuit.
Cathode (-) The shorter leg of the LED; connects to the negative terminal or ground.

Note: If the LED legs are trimmed or indistinguishable, the flat edge on the LED casing indicates the cathode (-).

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Forward Voltage and Current:
    • Check the LED's datasheet for its forward voltage (Vf) and recommended forward current (If).
  2. Calculate the Resistor Value:
    • Use Ohm's Law to calculate the resistor needed to limit the current: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:
      • ( V_{supply} ) is the supply voltage.
      • ( V_f ) is the forward voltage of the LED.
      • ( I_f ) is the forward current in amperes.
    • Example: For a 5V supply, a red LED (( V_f = 2V )), and ( I_f = 20mA ): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]
  3. Connect the LED:
    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.

Important Considerations and Best Practices

  • Always use a current-limiting resistor to prevent damage to the LED.
  • Avoid exceeding the maximum forward current and voltage ratings.
  • Ensure proper polarity; reversing the connections may damage the LED.
  • For high-power LEDs, consider using a heat sink to dissipate heat.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO:

Circuit Setup

  • Connect the anode (+) of the LED to a digital pin (e.g., pin 13) through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

const int ledPin = 13; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: Adjust the delay values to change the blink rate.

Troubleshooting and FAQs

Common Issues and Solutions

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
      • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.
    • Cause: No current-limiting resistor.
      • Solution: Add an appropriate resistor to the circuit.
    • Cause: Insufficient supply voltage.
      • Solution: Verify that the supply voltage meets the LED's forward voltage requirement.
  2. LED is Dim:

    • Cause: Resistor value too high.
      • Solution: Recalculate the resistor value to allow more current (within safe limits).
    • Cause: Low supply voltage.
      • Solution: Use a higher supply voltage, ensuring it does not exceed the LED's maximum rating.
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
      • Solution: Use a resistor to limit the current to the recommended forward current.
    • Cause: Overheating.
      • Solution: For high-power LEDs, use a heat sink or proper thermal management.

FAQs

  • Q: Can I connect an LED directly to a battery?
    A: No, always use a current-limiting resistor to prevent excessive current from damaging the LED.

  • Q: How do I choose the right resistor for my LED?
    A: Use the formula ( R = \frac{V_{supply} - V_f}{I_f} ) to calculate the resistor value.

  • Q: Can I use an LED without knowing its specifications?
    A: It's not recommended. If the specifications are unknown, start with a higher resistor value (e.g., 1kΩ) to limit the current and prevent damage.

  • Q: Why does my LED flicker when connected to an Arduino?
    A: This could be due to incorrect code or insufficient power supply. Check your code and ensure the Arduino is powered properly.

By following these guidelines, you can effectively use LEDs in your projects while ensuring their longevity and performance.
