Introduction

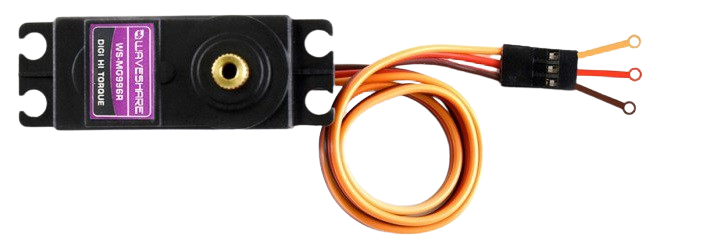

The MG996R is a high-torque servo motor widely used in robotics, remote-controlled (RC) vehicles, and other applications requiring precise angular position control. It features a durable metal gear train, making it suitable for high-stress environments. With its wide operating voltage range and robust design, the MG996R is a reliable choice for both hobbyists and professionals.

Explore Projects Built with Servo MG996R

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Arduino-Controlled Robotic Arm with Joystick and Push Button Interface

This is a servo control system featuring an Arduino UNO that processes input from a dual-axis joystick and push switches to operate multiple MG996R servo motors. It is designed for precise multi-axis control, potentially for applications like robotics or remote-controlled mechanisms.

Open Project in Cirkit Designer

Arduino-Controlled Bluetooth Servo System with Adafruit PWM Driver

This circuit is designed to wirelessly control multiple MG996R servos using an Arduino UNO and an Adafruit 16-Channel PWM Servo Driver. The HC-05 Bluetooth module enables remote command input, and a 3.7V battery provides power to the system.

Open Project in Cirkit Designer

Arduino UNO and 16-Channel PWM Servo Driver Controlled Robotic Arm with Battery Power

This circuit uses an Arduino UNO to control four MG996R servos via two 16-Channel PWM Servo Drivers. The Arduino communicates with the servo drivers over I2C and provides PWM signals to the servos to control their positions, powered by a 5V battery.

Open Project in Cirkit Designer

Arduino Uno Controlled 6-Servo Robot Arm with 3 Analog Joysticks

This circuit controls a robot arm with six MG996R servos using an Arduino Uno R3 and three analog joysticks. The joysticks provide analog input to the Arduino, which then maps these inputs to control the angles of the servos, allowing for precise movement of the robot arm.

Open Project in Cirkit Designer

Common Applications

• Robotic arms and grippers
• RC cars, boats, and planes
• Pan-tilt camera mounts
• Automated mechanisms requiring angular motion control

Technical Specifications

Key Specifications

Pin Configuration

The MG996R servo motor has a 3-pin connector. The pinout is as follows:

Usage Instructions

Connecting the MG996R to a Circuit

1. Power Supply: Connect the red wire to a power source (4.8V to 7.2V). Ensure the power supply can provide sufficient current (at least 2A) to handle the servo's peak load.
2. Ground: Connect the brown wire to the ground (GND) of your circuit.
3. Signal: Connect the orange wire to the PWM output pin of your microcontroller (e.g., Arduino).

Important Considerations

• Power Requirements: The MG996R can draw significant current, especially under load. Use a dedicated power source or a capacitor to stabilize the voltage.
• PWM Signal: The servo expects a PWM signal with a pulse width between 500µs (0°) and 2500µs (180°). A 1500µs pulse corresponds to the neutral position (90°).
• Avoid Overloading: Prolonged stalling or overloading can damage the motor or cause overheating.

Example: Using MG996R with Arduino UNO

Below is an example code to control the MG996R servo motor using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the MG996R

void setup() {
  myServo.attach(9); // Attach the servo signal pin to Arduino pin 9
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Best Practices

• Use a separate power supply for the servo to avoid voltage drops on the microcontroller.
• Add a decoupling capacitor (e.g., 1000µF) across the power supply to smooth out voltage fluctuations.
• Avoid sudden, large movements to reduce stress on the servo and extend its lifespan.

Troubleshooting and FAQs

Common Issues and Solutions

1. Servo Not Moving:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure the power supply meets the voltage and current requirements.

2. Servo Jitters or Vibrations:

   • Cause: Noise in the PWM signal or unstable power supply.
   • Solution: Use a decoupling capacitor and ensure the PWM signal is clean and within the specified range.

3. Overheating:

   • Cause: Prolonged stalling or excessive load.
   • Solution: Reduce the load on the servo or allow it to cool down periodically.

4. Limited Range of Motion:

   • Cause: Incorrect PWM pulse width or mechanical obstruction.
   • Solution: Verify the PWM signal and ensure there are no physical obstructions.

FAQs

Q: Can I power the MG996R directly from the Arduino?
A: It is not recommended. The MG996R can draw more current than the Arduino can supply, especially under load. Use an external power source.

Q: What is the maximum angle the MG996R can rotate?
A: The MG996R can rotate up to 180°, controlled by a PWM signal.

Q: Can I use the MG996R for continuous rotation?
A: No, the MG996R is designed for positional control, not continuous rotation. For continuous rotation, use a servo specifically designed for that purpose.

Q: How do I prevent the servo from overheating?
A: Avoid overloading the servo and ensure it is not stalled for extended periods. Use proper cooling if necessary.
