How to Use LCD 20X4: Examples, Pinouts, and Specs

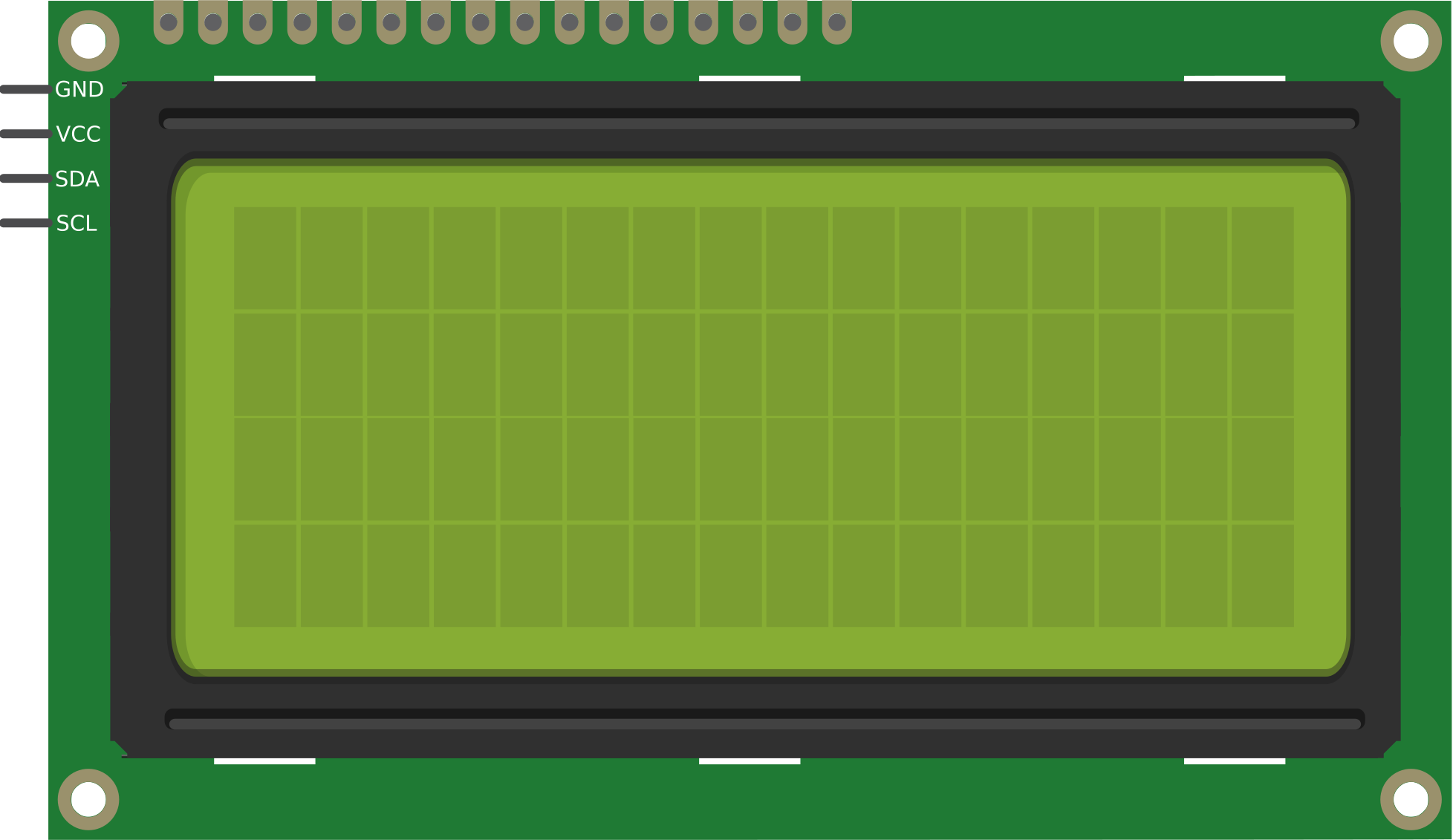

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

The LCD 20x4 is a Liquid Crystal Display capable of displaying 20 characters per line across 4 lines. It is widely used in embedded systems and microcontroller projects for presenting textual information such as sensor readings, system status, or user instructions. This display is based on the HD44780 controller, which is compatible with most microcontrollers, including Arduino, Raspberry Pi, and other development boards.

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO I2C 20x4 LCD Display Project
Image of sample: A project utilizing LCD 20X4 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD 20X4 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of sample: A project utilizing LCD 20X4 in a practical application
Arduino UNO I2C 20x4 LCD Display Project
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd display: A project utilizing LCD 20X4 in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor data in IoT projects
  • User interfaces for embedded systems
  • Menu-driven applications
  • Real-time system monitoring
  • Educational and prototyping purposes

Technical Specifications

The LCD 20x4 is a versatile display module with the following key specifications:

Parameter Value
Display Type 20x4 Character LCD
Controller HD44780 or compatible
Operating Voltage 4.7V to 5.3V
Backlight Voltage 4.2V to 4.6V
Current Consumption 1mA (without backlight), ~120mA (with backlight)
Character Size 5x8 dot matrix per character
Interface Type Parallel (4-bit or 8-bit mode)
Operating Temperature -20°C to 70°C
Dimensions 98mm x 60mm x 12mm

Pin Configuration and Descriptions

The LCD 20x4 module typically has 16 pins. Below is the pinout and description:

Pin Name Description
1 VSS Ground (0V)
2 VDD Power supply (4.7V to 5.3V)
3 VO Contrast adjustment (connect to a potentiometer)
4 RS Register Select (0: Command mode, 1: Data mode)
5 RW Read/Write (0: Write, 1: Read)
6 E Enable signal (starts data read/write)
7-14 D0-D7 Data pins (used for 4-bit or 8-bit communication)
15 A (LED+) Backlight anode (connect to 5V via a resistor)
16 K (LED-) Backlight cathode (connect to ground)

Usage Instructions

How to Use the LCD 20x4 in a Circuit

  1. Power Supply: Connect the VSS pin to ground and the VDD pin to a 5V power source.
  2. Contrast Adjustment: Connect the VO pin to the wiper of a 10kΩ potentiometer. Connect one end of the potentiometer to ground and the other to 5V. Adjust the potentiometer to set the display contrast.
  3. Data Communication: Use either 4-bit or 8-bit mode for communication:
    • In 4-bit mode, connect only D4-D7 to the microcontroller.
    • In 8-bit mode, connect all data pins (D0-D7).
  4. Control Pins: Connect the RS, RW, and E pins to the microcontroller. For most applications, RW is tied to ground (write mode).
  5. Backlight: Connect the A (LED+) pin to 5V through a 220Ω resistor and the K (LED-) pin to ground.

Arduino UNO Example Code

Below is an example of how to use the LCD 20x4 with an Arduino UNO in 4-bit mode. This example uses the LiquidCrystal library.

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(20, 4);

  // Print a message to the LCD
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 Demo");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3 Example");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4 Example");
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

  • Contrast Adjustment: Ensure the contrast is properly set using a potentiometer; otherwise, the text may not be visible.
  • Backlight Resistor: Always use a resistor (e.g., 220Ω) in series with the backlight to prevent damage.
  • Noise Reduction: Use decoupling capacitors (e.g., 0.1µF) near the power pins to reduce noise.
  • Initialization: Ensure the LCD is properly initialized in your code before sending data.
  • Pin Connections: Double-check all connections to avoid short circuits or incorrect data transmission.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display on the Screen

    • Check the power supply connections (VSS and VDD).
    • Adjust the contrast using the potentiometer connected to VO.
    • Verify that the backlight is connected properly.
  2. Garbled or No Text

    • Ensure the data pins (D4-D7 or D0-D7) are correctly connected.
    • Verify that the RS, RW, and E pins are properly connected and controlled in the code.
    • Check the initialization code for errors.
  3. Backlight Not Working

    • Confirm that the backlight pins (A and K) are connected correctly.
    • Use a suitable resistor (e.g., 220Ω) to limit current to the backlight.
  4. Text Not Aligned or Missing

    • Ensure the lcd.setCursor() function is used correctly in the code.
    • Verify that the correct number of columns and rows (20x4) is specified in the lcd.begin() function.

FAQs

Q: Can I use the LCD 20x4 with a 3.3V microcontroller?
A: The LCD 20x4 is designed for 5V operation. To use it with a 3.3V microcontroller, you will need a level shifter or voltage divider for the data and control lines.

Q: How do I clear the display?
A: Use the lcd.clear() function in your code to clear all text from the display.

Q: Can I use the LCD 20x4 in 8-bit mode?
A: Yes, the LCD 20x4 supports both 4-bit and 8-bit modes. However, 4-bit mode is more commonly used as it requires fewer pins.

Q: Why is the text flickering?
A: Flickering may occur if the lcd.print() function is called repeatedly in the loop() without clearing or updating the display properly. Use lcd.setCursor() to update specific parts of the display.

By following this documentation, you can effectively integrate the LCD 20x4 into your projects and troubleshoot common issues.
