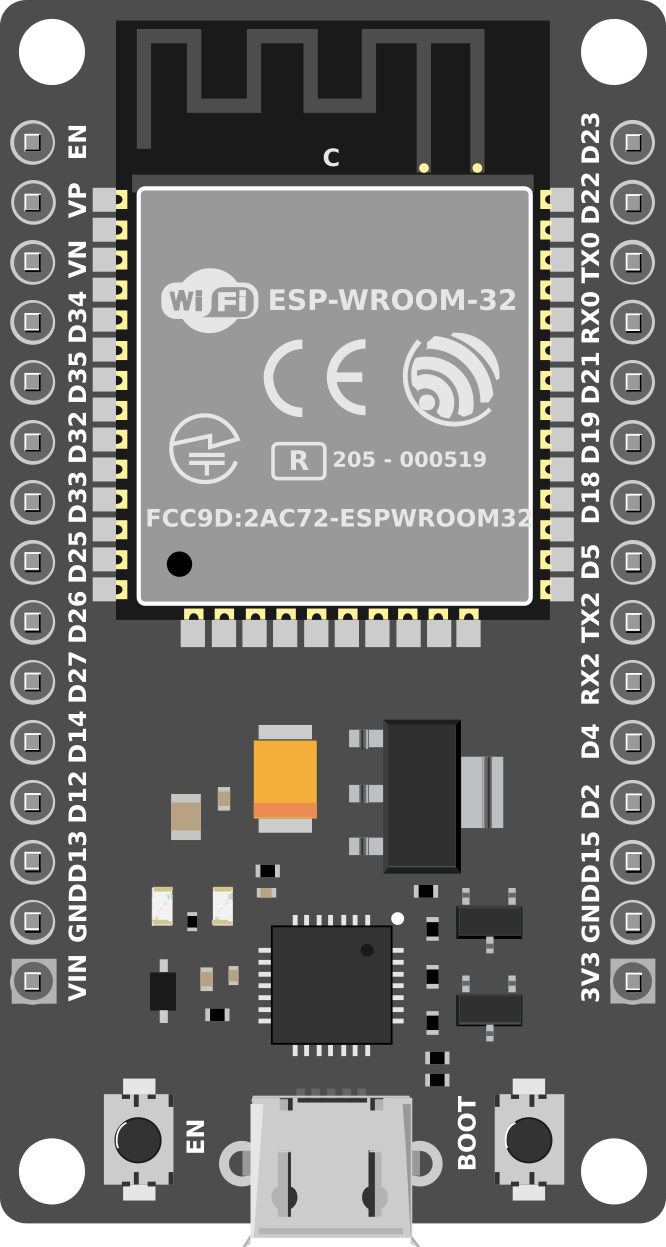

Image of ESP32
Cirkit Designer LogoDesign with ESP32 in Cirkit Designer

Introduction

The ESP32 is a powerful, low-cost microcontroller with integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications and embedded systems. Developed by Espressif Systems, the ESP32 is widely used in smart home devices, wearable electronics, industrial automation, and more. Its dual-core processor, extensive GPIO options, and support for multiple communication protocols make it a versatile and efficient solution for a wide range of projects.

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
Image of date time and temperature display : A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing ESP32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of date time and temperature display : A project utilizing ESP32 in a practical application
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing ESP32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • IoT devices (e.g., smart home automation, sensors, and actuators)
  • Wireless communication hubs
  • Wearable electronics
  • Robotics and drones
  • Industrial control systems
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it a standout microcontroller for both hobbyists and professionals. Below are its key technical specifications:

Key Features:

  • Processor: Dual-core Xtensa® 32-bit LX6 CPU, up to 240 MHz
  • Memory: 520 KB SRAM, 448 KB ROM, and external flash support
  • Wireless Connectivity:
    • Wi-Fi: 802.11 b/g/n (2.4 GHz)
    • Bluetooth: v4.2 BR/EDR and BLE
  • GPIO Pins: 34 programmable GPIOs
  • Operating Voltage: 3.3V
  • Power Consumption: Ultra-low power consumption with multiple power modes
  • Interfaces: SPI, I2C, UART, ADC, DAC, PWM, and more
  • ADC Resolution: 12-bit
  • DAC Resolution: 8-bit
  • Temperature Range: -40°C to +125°C

Pin Configuration:

The ESP32 has a variety of pins for different functionalities. Below is a summary of its pin configuration:

Pin Name Function Description
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during startup.
GPIO1 (TXD0) UART TX Default UART transmit pin.
GPIO3 (RXD0) UART RX Default UART receive pin.
GPIO12-15 Input/Output, ADC, PWM, etc. General-purpose pins with ADC, PWM, and other functionalities.
GPIO34-39 Input Only Analog input pins, suitable for ADC applications.
EN Enable Active-high pin to enable or reset the chip.
3V3 Power Supply 3.3V power input.
GND Ground Ground connection.

Note: Not all GPIO pins support all functions. Refer to the ESP32 datasheet for detailed pin multiplexing information.

Usage Instructions

The ESP32 is easy to integrate into a variety of projects. Below are the steps and best practices for using the ESP32 in a circuit:

Basic Setup:

  1. Power Supply: Ensure the ESP32 is powered with a stable 3.3V supply. Avoid exceeding this voltage to prevent damage.
  2. Boot Mode: Connect GPIO0 to GND during startup to enter bootloader mode for programming.
  3. Programming: Use a USB-to-Serial adapter or a development board (e.g., ESP32 DevKit) to upload code via the Arduino IDE or Espressif's ESP-IDF.

Connecting to an Arduino UNO:

The ESP32 can communicate with an Arduino UNO via UART or I2C. Below is an example of using the ESP32 with the Arduino IDE to blink an LED:

// Example: Blink an LED using ESP32
// This code blinks an LED connected to GPIO2 of the ESP32.

#define LED_PIN 2  // Define the GPIO pin where the LED is connected

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set the LED pin as an output
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

Best Practices:

  • Use level shifters when interfacing the ESP32 with 5V logic devices.
  • Avoid using GPIO6-GPIO11 for general purposes, as they are connected to the internal flash memory.
  • Use decoupling capacitors near the power pins to ensure stable operation.
  • For Wi-Fi applications, ensure proper antenna placement to avoid signal interference.

Troubleshooting and FAQs

Common Issues:

  1. ESP32 Not Detected by Computer:

    • Ensure the correct USB driver is installed for your USB-to-Serial adapter.
    • Check the USB cable for data transfer capability (some cables are power-only).
  2. Code Upload Fails:

    • Verify that GPIO0 is connected to GND during bootloader mode.
    • Check the selected COM port and board type in the Arduino IDE.
  3. Wi-Fi Connection Issues:

    • Ensure the correct SSID and password are used in your code.
    • Check for interference from other devices or weak signal strength.
  4. Overheating:

    • Verify that the ESP32 is not drawing excessive current.
    • Use a proper heat sink or ensure adequate ventilation.

FAQs:

Q: Can the ESP32 operate on 5V?
A: No, the ESP32 operates at 3.3V. However, many development boards include a voltage regulator to accept 5V input.

Q: How do I reset the ESP32?
A: Press the EN (Enable) button on the development board to reset the ESP32.

Q: Can I use the ESP32 for battery-powered projects?
A: Yes, the ESP32 supports ultra-low power modes, making it suitable for battery-powered applications.

Q: Is the ESP32 compatible with Arduino libraries?
A: Yes, the ESP32 is supported by the Arduino IDE and is compatible with many Arduino libraries.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
