How to Use ESP8266 LoLin NodeMCU V3: Examples, Pinouts, and Specs

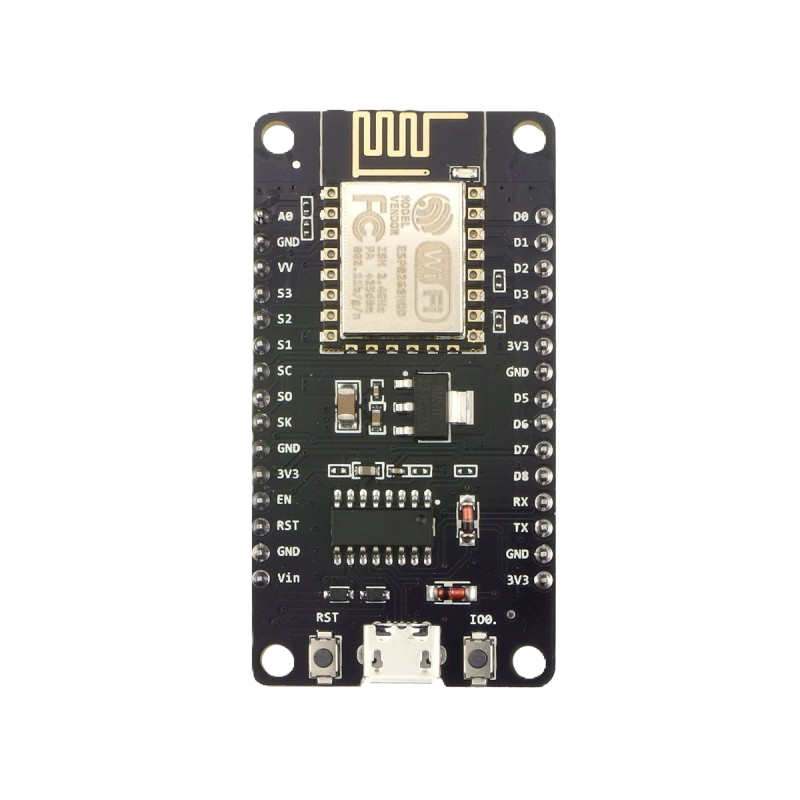

The ESP8266 LoLin NodeMCU V3 is a low-cost Wi-Fi microcontroller board based on the ESP8266 chip. It features a built-in USB interface for easy programming and a variety of GPIO pins for connecting sensors, actuators, and other devices. This board is widely used in IoT (Internet of Things) applications due to its affordability, compact size, and robust wireless capabilities.

• Home automation systems
• IoT devices and smart appliances
• Wireless sensor networks
• Remote data logging and monitoring
• Prototyping Wi-Fi-enabled projects

• Microcontroller: ESP8266
• Operating Voltage: 3.3V
• Input Voltage (via USB): 5V
• Flash Memory: 4MB
• Wi-Fi Standard: 802.11 b/g/n
• GPIO Pins: 11 (including ADC)
• ADC Resolution: 10-bit
• Clock Speed: 80 MHz (can be overclocked to 160 MHz)
• USB Interface: CH340G USB-to-Serial converter
• Dimensions: 58mm x 31mm x 13mm

The ESP8266 LoLin NodeMCU V3 has a total of 30 pins. Below is the pinout description:

1. Powering the Board:

   • Connect the board to your computer via a micro-USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin and GND for external power.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP8266 board package via the Board Manager.
   • Select "NodeMCU 1.0 (ESP-12E Module)" as the board type.
   • Connect the board to your computer and select the appropriate COM port.
   • Write your code and upload it to the board.

3. Connecting Sensors and Actuators:

   • Use the GPIO pins (D0-D8) for digital input/output or PWM.
   • Use the A0 pin for analog input (ensure the input voltage does not exceed 1V).
   • Connect external components to the 3V3 and GND pins for power.

• Voltage Levels: The GPIO pins operate at 3.3V. Avoid applying 5V directly to the pins to prevent damage.
• ADC Input: The A0 pin accepts a maximum of 1V. Use a voltage divider if your sensor outputs higher voltages.
• Wi-Fi Antenna: Ensure the onboard antenna is not obstructed for optimal Wi-Fi performance.
• Power Supply: Use a stable power source to avoid unexpected resets or instability.

The following example demonstrates how to connect the ESP8266 LoLin NodeMCU V3 to a Wi-Fi network and control an LED connected to GPIO pin D1.

#include <ESP8266WiFi.h> // Include the ESP8266 Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = D1; // GPIO pin where the LED is connected

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
  Serial.begin(115200);    // Start the serial communication
  delay(10);

  // Connect to Wi-Fi
  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. The board is not detected by the computer:

   • Ensure the correct USB drivers (CH340G) are installed on your computer.
   • Try using a different USB cable or port.

2. Upload errors in Arduino IDE:

   • Check that the correct board and COM port are selected in the Arduino IDE.
   • Press and hold the "Flash" button on the board while uploading the code.

3. Wi-Fi connection issues:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and not using unsupported security protocols.

4. Unstable operation or frequent resets:

   • Use a stable power source with sufficient current (at least 500mA).
   • Avoid overloading the GPIO pins with high-current devices.

• Q: Can I use 5V sensors with the ESP8266 LoLin NodeMCU V3?
  A: Yes, but you need a level shifter or voltage divider to step down the signal to 3.3V.

• Q: How do I reset the board to factory settings?
  A: Press and hold the "RST" button on the board to reset it.

• Q: Can I use the board without Wi-Fi?
  A: Yes, the ESP8266 can function as a standalone microcontroller without using Wi-Fi.

• Q: What is the maximum range of the Wi-Fi module?
  A: The range depends on environmental factors but is typically around 30-50 meters indoors.
