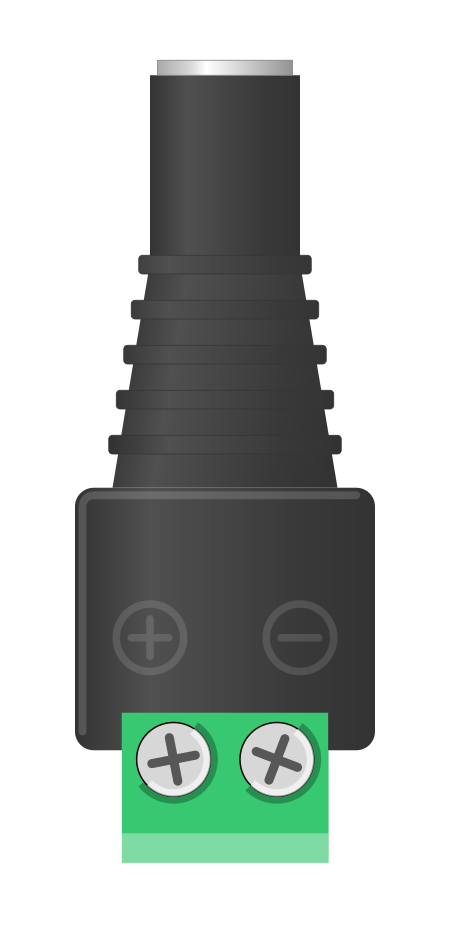

How to Use Barrel Jack: Examples, Pinouts, and Specs

A barrel jack is a type of electrical connector commonly used for power supply connections in electronic devices. It features a cylindrical shape that allows for easy insertion and secure connection of a power adapter. Barrel jacks are widely used in consumer electronics, development boards, and DIY projects due to their simplicity and reliability. They are designed to handle low to moderate power levels and are available in various sizes to accommodate different voltage and current requirements.

• Powering development boards like Arduino, Raspberry Pi (via adapters), and other microcontrollers.
• Providing DC power to consumer electronics such as routers, modems, and portable devices.
• DIY electronics projects requiring a reliable and detachable power connection.
• Prototyping circuits that need a standard DC power input.

• Voltage Rating: Typically 5V to 24V DC (varies by model).
• Current Rating: Commonly 1A to 5A (check specific model for exact rating).
• Connector Type: Cylindrical, with an inner pin (positive) and outer sleeve (negative).
• Outer Diameter (OD): Common sizes include 5.5mm, 3.5mm, and 2.1mm.
• Inner Diameter (ID): Typically 2.1mm or 2.5mm.
• Polarity: Center pin is usually positive (+), and the outer sleeve is negative (-).
• Mounting Style: Panel mount or PCB mount.

The barrel jack typically has three pins for connection:

Note: Not all barrel jacks include a switch pin. Check the datasheet of your specific model.

1. Determine the Voltage and Current Requirements:

   • Ensure the barrel jack matches the voltage and current ratings of your circuit.
   • Verify the polarity of the power adapter to avoid damage to your components.

2. Connect the Pins:

   • Solder the outer sleeve pin to the ground (GND) of your circuit.
   • Solder the inner pin to the positive voltage input (VCC) of your circuit.
   • If using the switch pin, connect it to the desired circuit path for power switching.

3. Mount the Barrel Jack:

   • For panel-mount jacks, secure the connector to the enclosure using the provided nut.
   • For PCB-mount jacks, solder the pins to the PCB pads.

4. Test the Connection:

   • Use a multimeter to verify the voltage and polarity at the output before powering your circuit.

• Polarity Check: Always confirm the polarity of the power adapter before connecting it to the barrel jack.
• Current Rating: Ensure the barrel jack can handle the maximum current required by your circuit.
• Secure Mounting: For panel-mount jacks, ensure the connector is firmly secured to prevent accidental disconnection.
• Avoid Overheating: Do not exceed the voltage or current ratings of the barrel jack to prevent overheating or damage.
• Use with Arduino UNO: The Arduino UNO typically uses a 5.5mm OD / 2.1mm ID barrel jack for power input. Ensure your power adapter provides 7-12V DC for optimal operation.

// Example code to blink an LED on an Arduino UNO powered via a barrel jack
// Ensure the power adapter provides 7-12V DC to the Arduino's barrel jack.

int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Power to the Circuit:

   • Cause: Incorrect polarity or loose connection.
   • Solution: Verify the polarity of the power adapter and ensure all connections are secure.

2. Overheating Barrel Jack:

   • Cause: Exceeding the voltage or current rating.
   • Solution: Use a power adapter within the specified voltage and current range.

3. Intermittent Power Loss:

   • Cause: Loose or damaged connector.
   • Solution: Inspect the barrel jack and power adapter for wear or damage. Replace if necessary.

4. Switch Pin Not Working:

   • Cause: Incorrect wiring or unsupported feature.
   • Solution: Verify the wiring and check if the barrel jack model includes a switch pin.

• Q: Can I use a barrel jack for AC power?
  A: No, barrel jacks are designed for DC power only. Using AC power can damage your circuit.

• Q: How do I identify the polarity of my power adapter?
  A: Look for the polarity symbol on the adapter. A diagram with a "+" in the center indicates the center pin is positive.

• Q: What size barrel jack does the Arduino UNO use?
  A: The Arduino UNO uses a 5.5mm OD / 2.1mm ID barrel jack.

• Q: Can I use a higher voltage adapter with my barrel jack?
  A: No, always use an adapter within the voltage range specified for your circuit to avoid damage.

By following this documentation, you can effectively use a barrel jack in your electronic projects while ensuring safety and reliability.
