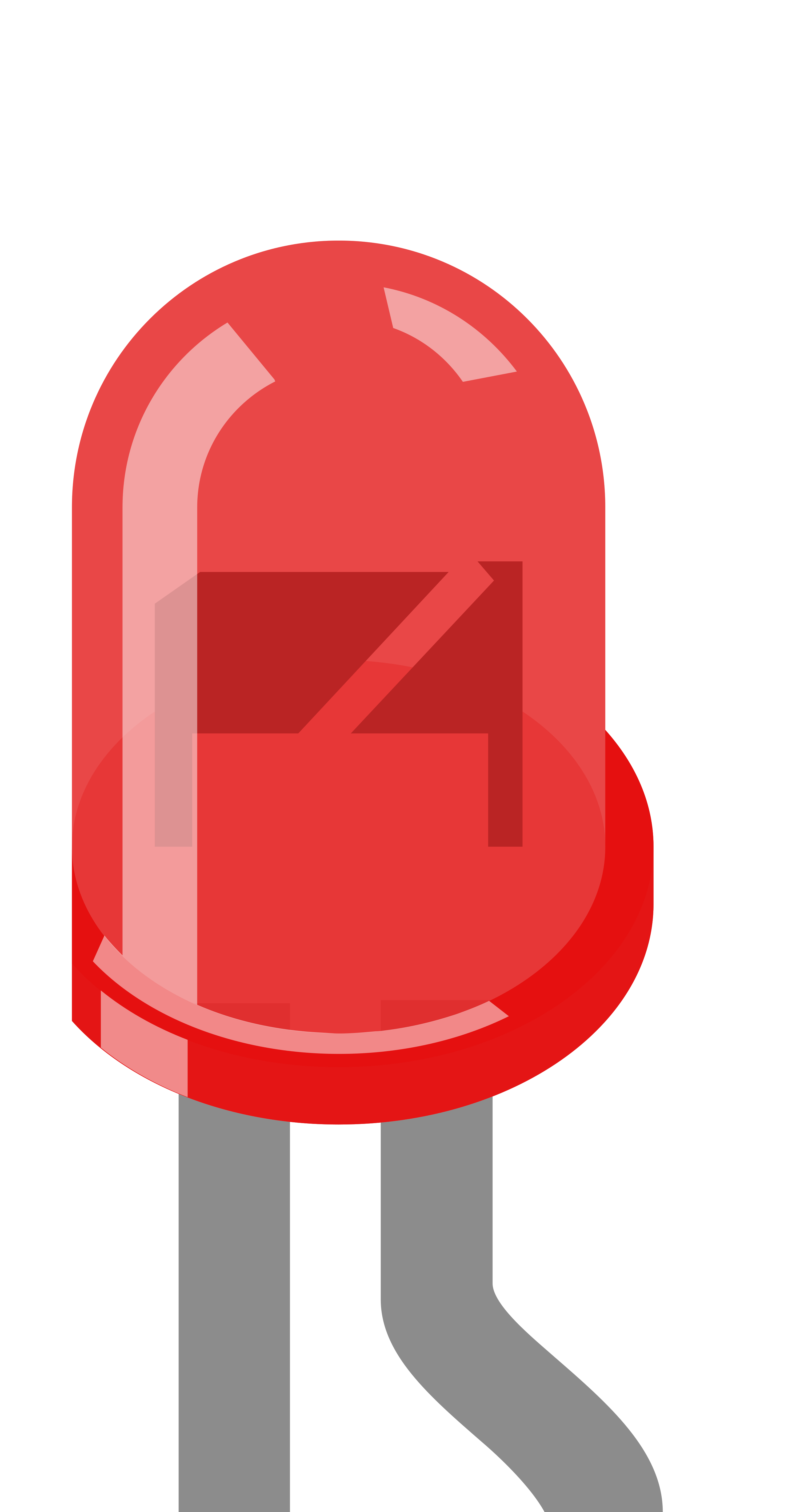

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. This particular LED emits red light and features two pins for easy integration into electronic circuits. The longer pin is the anode (positive terminal), while the shorter pin is the cathode (negative terminal), simplifying proper orientation during installation.
Explore Projects Built with LED: Two Pin (red) - Long Pins
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.

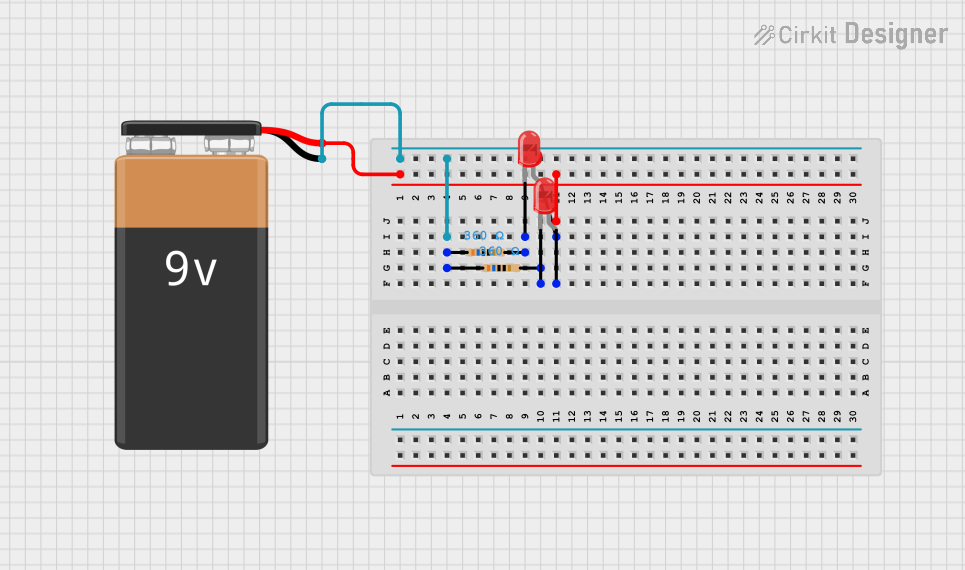

This circuit consists of a 9V battery powering two red LEDs, each in series with a 360 Ohm resistor. The LEDs are connected in parallel, with each LED-resistor pair forming a separate branch.
The circuit features multiple red LEDs with individual current-limiting resistors, connected in parallel to a microcontroller for independent control. It is likely used for visual indicators or displays, with the capability to control the state and brightness of each LED.
Below are the key technical details for the Two Pin Red LED:
Parameter
Value
Forward Voltage (Vf)
1.8V to 2.2V
Forward Current (If)
20mA (typical)
Maximum Current (Imax)
30mA
Wavelength
620nm to 630nm (red light)
Viewing Angle
20° to 30°
Operating Temperature
-40°C to +85°C
Pin Length
Anode: ~25mm, Cathode: ~20mm
Pin Configuration and Descriptions
Pin
Name
Description
Long Pin
Anode (+)
Connect to the positive terminal of the power source.
Short Pin
Cathode (-)
Connect to the negative terminal or ground.
Usage Instructions
How to Use the Component in a Circuit
Identify the Pins: The longer pin is the anode (+), and the shorter pin is the cathode (-).
Connect to Power Source:
Connect the anode to the positive terminal of the power source.
Connect the cathode to the negative terminal or ground.
Use a Current-Limiting Resistor: To prevent damage to the LED, always use a resistor in series with the LED. Calculate the resistor value using Ohm's Law:
[
R = \frac{V_{supply} - V_f}{I_f}
]
Where:
(V_{supply}) is the supply voltage.
(V_f) is the forward voltage of the LED (1.8V to 2.2V).
(I_f) is the forward current (20mA or 0.02A).
For example, if (V_{supply} = 5V):
[
R = \frac{5V - 2V}{0.02A} = 150\Omega
]
Test the Circuit: Once connected, the LED should emit red light when powered.
Important Considerations and Best Practices
Polarity Matters: Ensure the anode and cathode are connected correctly. Reversing the polarity may damage the LED.
Avoid Overcurrent: Always use a current-limiting resistor to prevent excessive current from flowing through the LED.
Heat Management: While LEDs generate minimal heat, ensure proper ventilation in high-power applications.
Series or Parallel Connections: For multiple LEDs, consider whether to connect them in series or parallel, depending on your circuit design.
Example: Connecting to an Arduino UNO
Below is an example of how to connect the red LED to an Arduino UNO and make it blink:
Circuit Setup
Connect the anode (long pin) of the LED to a 220Ω resistor.
Connect the other end of the resistor to digital pin 13 on the Arduino.
Connect the cathode (short pin) of the LED to the Arduino's GND pin.
Arduino Code
// This code makes the red LED blink on and off every second.
void setup() {
pinMode(13, OUTPUT); // Set digital pin 13 as an output pin
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
LED Does Not Light Up
Cause: Incorrect polarity.
Solution: Ensure the anode (long pin) is connected to the positive terminal and the cathode (short pin) to the negative terminal.
Cause: No current-limiting resistor or incorrect resistor value.
Solution: Use a resistor with the correct value (e.g., 150Ω to 220Ω for a 5V supply).
LED is Dim
Cause: Insufficient current.
Solution: Check the resistor value and ensure it allows enough current (20mA typical).
LED Burns Out
Cause: Excessive current.
Solution: Always use a current-limiting resistor to protect the LED.
LED Flickers
Cause: Unstable power supply.
Solution: Use a stable power source or add a capacitor to smooth out voltage fluctuations.
FAQs
Q: Can I connect the LED directly to a 3.3V or 5V power source without a resistor?
A: No, doing so may damage the LED due to excessive current. Always use a current-limiting resistor.
Q: Can I use this LED with a 12V power supply?
A: Yes, but you must calculate and use an appropriate resistor to limit the current.
Q: How do I know if the LED is damaged?
A: If the LED does not light up even when connected correctly with a proper resistor, it may be damaged.
Q: Can I use this LED for PWM (Pulse Width Modulation) applications?
A: Yes, this LED is suitable for PWM applications, such as dimming or creating light patterns.
