How to Use 3.2 TFT SPI 240x320 V1.0: Examples, Pinouts, and Specs

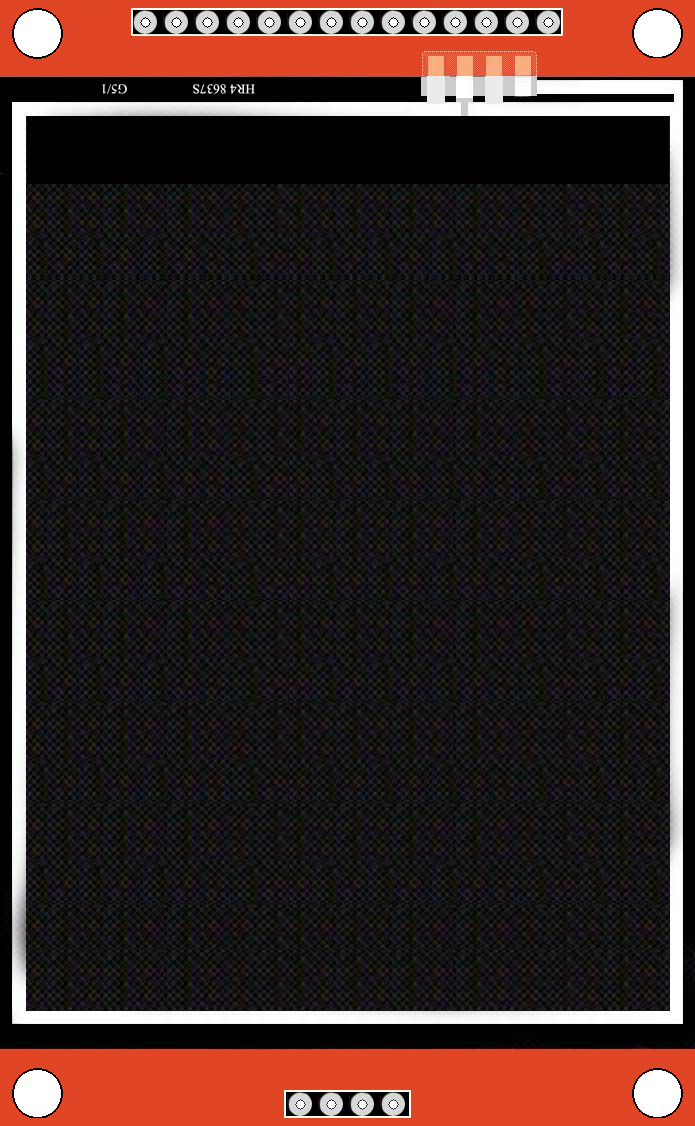

The 3.2 TFT SPI 240x320 V1.0 is a 3.2-inch thin-film transistor (TFT) display module with a resolution of 240x320 pixels. It uses the SPI (Serial Peripheral Interface) protocol for communication, making it an excellent choice for microcontroller-based projects. This display is capable of rendering vibrant colors and clear graphics, making it ideal for applications requiring visual output, such as user interfaces, data visualization, and gaming.

• Embedded systems requiring graphical user interfaces (GUIs)
• IoT devices with visual feedback
• DIY projects like weather stations, clocks, and dashboards
• Educational tools for learning about SPI communication and display control
• Portable gaming consoles and multimedia devices

Below are the key technical details of the 3.2 TFT SPI 240x320 V1.0 display module:

The 3.2 TFT SPI 240x320 V1.0 module typically has the following pinout:

Note: Some modules may include additional pins like MISO (Master In Slave Out) or SD card-related pins. Refer to the specific datasheet for your module.

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
2. SPI Connections: Connect the CS, RESET, DC, MOSI, and SCK pins to the corresponding SPI pins on your microcontroller.
3. Backlight: Connect the LED pin to 3.3V for constant backlight or to a PWM pin for adjustable brightness.
4. Initialization: Use a compatible library (e.g., Adafruit GFX and Adafruit ILI9341 for Arduino) to initialize and control the display.

• Voltage Levels: Ensure all logic signals are at 3.3V. If using a 5V microcontroller (e.g., Arduino UNO), use level shifters to avoid damaging the display.
• SPI Speed: Configure the SPI clock speed appropriately. A typical value is 4 MHz, but the display may support higher speeds depending on the setup.
• Reset Pin: Always connect the RESET pin to the microcontroller or pull it high with a resistor to ensure proper initialization.
• Library Support: Use well-documented libraries like Adafruit ILI9341 for easier integration and faster development.

Below is an example of how to use the 3.2 TFT SPI 240x320 V1.0 with an Arduino UNO:

#include <Adafruit_GFX.h>      // Core graphics library
#include <Adafruit_ILI9341.h>  // Library for ILI9341-based displays

// Define SPI pins for the display
#define TFT_CS   10  // Chip Select pin
#define TFT_DC   9   // Data/Command pin
#define TFT_RST  8   // Reset pin

// Create an instance of the display
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize the display
  tft.begin();

  // Set rotation (0-3 for different orientations)
  tft.setRotation(1);

  // Fill the screen with a solid color
  tft.fillScreen(ILI9341_BLUE);

  // Display some text
  tft.setTextColor(ILI9341_WHITE);
  tft.setTextSize(2);
  tft.setCursor(10, 10);
  tft.println("Hello, TFT!");
}

void loop() {
  // Add your code here to update the display
}

Note: Ensure the Adafruit_GFX and Adafruit_ILI9341 libraries are installed in your Arduino IDE.

1. Display Not Turning On

   • Cause: Incorrect power supply or loose connections.
   • Solution: Verify that VCC is connected to 3.3V and all connections are secure.

2. No Output on the Screen

   • Cause: Incorrect SPI wiring or initialization code.
   • Solution: Double-check the SPI connections (CS, DC, MOSI, SCK) and ensure the correct pins are defined in the code.

3. Flickering or Unstable Display

   • Cause: SPI clock speed too high or poor power supply.
   • Solution: Reduce the SPI clock speed and ensure a stable 3.3V power source.

4. Backlight Not Working

   • Cause: LED pin not connected or insufficient voltage.
   • Solution: Connect the LED pin to 3.3V or a PWM pin for brightness control.

Q: Can I use this display with a 5V microcontroller?
A: Yes, but you must use level shifters to convert 5V logic signals to 3.3V to avoid damaging the display.

Q: What is the maximum SPI clock speed supported?
A: The maximum SPI clock speed depends on the specific module and wiring quality. A typical safe value is 4 MHz, but some setups may support up to 10 MHz.

Q: Can I use this display with platforms other than Arduino?
A: Yes, the display is compatible with any platform that supports SPI communication, such as Raspberry Pi, ESP32, and STM32.

Q: How do I display images on the screen?
A: Use libraries like Adafruit ILI9341 to load and render bitmap images stored on an SD card or in the microcontroller's memory.

By following this documentation, you can effectively integrate and use the 3.2 TFT SPI 240x320 V1.0 display in your projects.
