How to Use LCD I2C: Examples, Pinouts, and Specs

Introduction

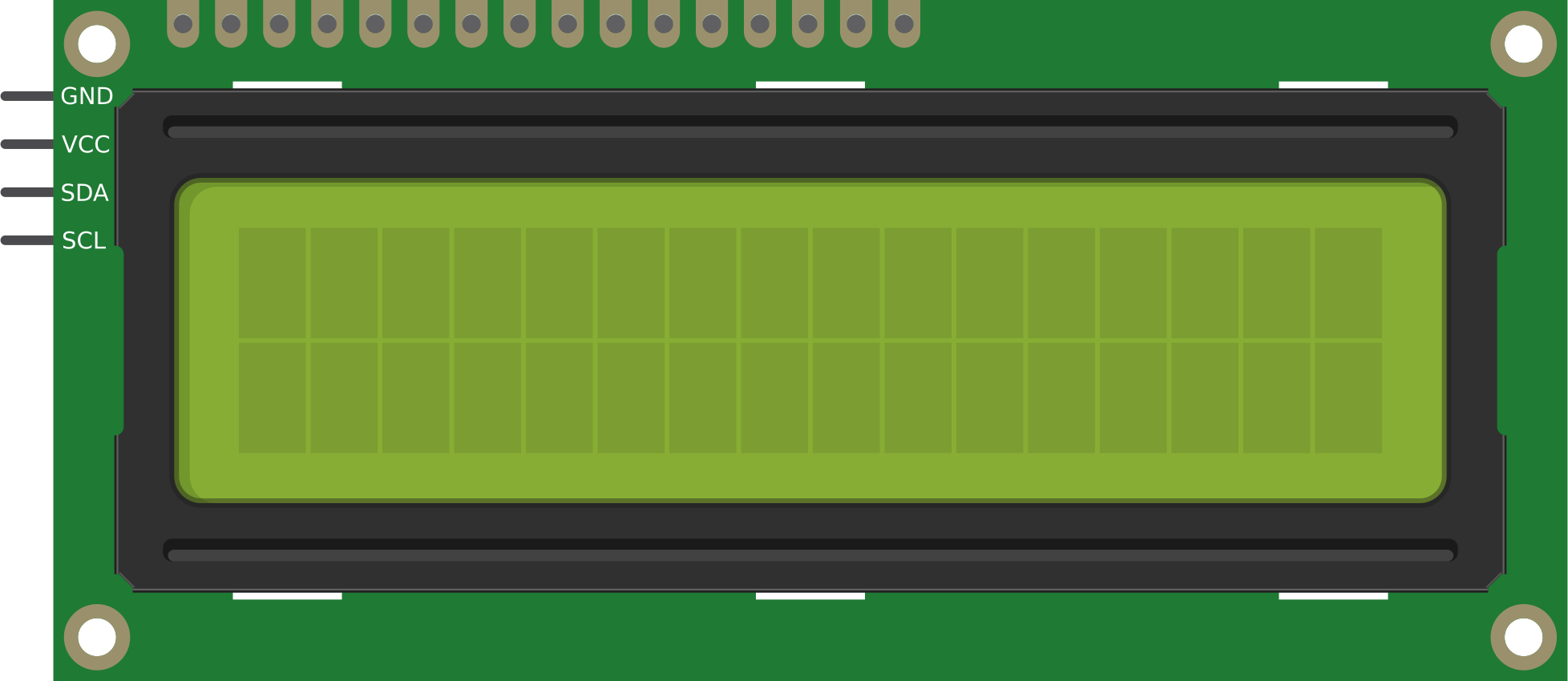

The LCD I2C is a Liquid Crystal Display module that integrates an I2C (Inter-Integrated Circuit) interface, simplifying communication with microcontrollers. Unlike traditional LCDs that require multiple pins for data and control, the I2C interface reduces the required connections to just two data lines: SDA (data) and SCL (clock). This makes it ideal for projects with limited GPIO pins or where simplicity is a priority.

Explore Projects Built with LCD I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

I2C LCD Display Module with Power Supply Interface

This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.

Open Project in Cirkit Designer

ESP32 and I2C LCD Display for Data Visualization

This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.

Open Project in Cirkit Designer

A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display

This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.

Open Project in Cirkit Designer

ESP32-Controlled I2C LCD Display

This circuit connects an ESP32 microcontroller to an I2C LCD 16x2 display. The ESP32 powers the LCD and communicates with it via the I2C protocol using its SDA and SCL lines connected to the corresponding pins on the LCD. The embedded code on the ESP32 is programmed to display messages on the LCD screen in a loop, which can be used for user interface or status display purposes.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Displaying text, numbers, or custom characters in embedded systems
• User interfaces for DIY electronics projects
• Real-time data display in IoT devices
• Educational projects and prototyping with microcontrollers like Arduino or Raspberry Pi

Technical Specifications

Key Technical Details

• Display Type: 16x2 or 20x4 character LCD (varies by model)
• Interface: I2C (2-wire communication)
• Operating Voltage: 5V DC
• Backlight: LED with adjustable brightness
• Contrast Adjustment: Potentiometer on the I2C backpack
• I2C Address: Typically 0x27 or 0x3F (configurable via jumpers)
• Power Consumption: ~20mA (with backlight on)

Pin Configuration and Descriptions

The LCD I2C module has four main pins for connection:

Usage Instructions

How to Use the LCD I2C in a Circuit

1. Connect the Pins:

   • Connect the VCC pin to the 5V pin on your microcontroller.
   • Connect the GND pin to the ground (GND) pin on your microcontroller.
   • Connect the SDA pin to the SDA pin on your microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the SCL pin on your microcontroller (e.g., A5 on Arduino UNO).

2. Install the Required Library:

   • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install it.

3. Write and Upload Code:

   • Use the example code below to initialize and display text on the LCD.

Example Code for Arduino UNO

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with I2C address 0x27 and a 16x2 display size
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight
  lcd.setCursor(0, 0); // Set cursor to the first row, first column
  lcd.print("Hello, World!"); // Print text on the first row
  lcd.setCursor(0, 1); // Set cursor to the second row, first column
  lcd.print("LCD I2C Test"); // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

• I2C Address: Ensure the correct I2C address is used in your code. If the LCD does not respond, use an I2C scanner sketch to detect the address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunction.
• Contrast Adjustment: If the text is not visible, adjust the contrast potentiometer on the I2C backpack.
• Pull-Up Resistors: Some microcontrollers may require external pull-up resistors on the SDA and SCL lines if not already included.

Troubleshooting and FAQs

Common Issues and Solutions

1. LCD Not Displaying Anything:

   • Verify the wiring connections (VCC, GND, SDA, SCL).
   • Check the I2C address in the code. Use an I2C scanner sketch to confirm the address.
   • Adjust the contrast potentiometer on the I2C backpack.

2. Flickering or Unstable Display:

   • Ensure a stable 5V power supply.
   • Check for loose connections or faulty jumper wires.

3. Backlight Not Turning On:

   • Confirm that the lcd.backlight() function is called in the code.
   • Check the solder joints on the I2C backpack.

4. Text Not Aligned or Cut Off:

   • Ensure the correct display size (e.g., 16x2 or 20x4) is specified in the LiquidCrystal_I2C initialization.

FAQs

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and it will print the detected address in the Serial Monitor.

Q: Can I use the LCD I2C with a 3.3V microcontroller?
A: Yes, but ensure the I2C backpack supports 3.3V logic levels. Otherwise, use a logic level shifter.

Q: Can I connect multiple I2C devices to the same SDA and SCL lines?
A: Yes, as long as each device has a unique I2C address. Use jumpers or solder pads on the I2C backpack to change the LCD's address if needed.

Q: How do I display custom characters on the LCD?
A: Use the createChar() function in the LiquidCrystal_I2C library to define and display custom characters.

By following this documentation, you can effectively integrate and troubleshoot the LCD I2C module in your projects.
