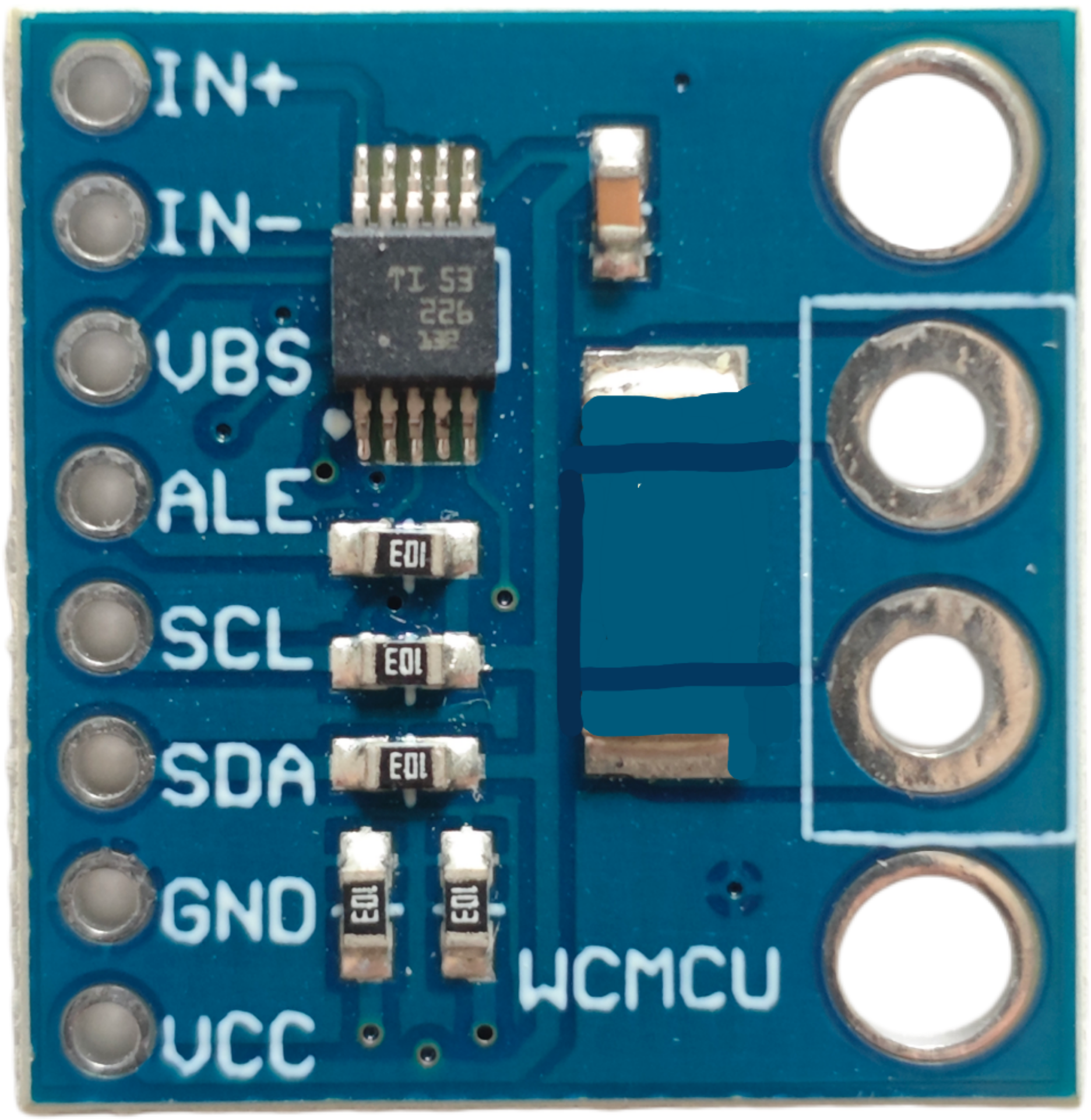

How to Use INA226 (đã gỡ điện trở shunt): Examples, Pinouts, and Specs

The INA226 is a high-side current shunt monitor designed to measure the voltage across a shunt resistor to determine the current flowing through it. It integrates a precision ADC (Analog-to-Digital Converter) and communicates via an I2C interface, making it highly versatile for power monitoring and management applications. The INA226 supports a wide supply voltage range and provides accurate measurements of both current and bus voltage, enabling real-time power calculations.

• Power monitoring in servers, telecom equipment, and industrial systems
• Battery management systems (BMS)
• Solar inverters and energy storage systems
• DC-DC converter efficiency monitoring
• General-purpose current and voltage sensing in embedded systems

1. Power Supply: Connect the VCC pin to a 2.7V to 5.5V power source and the GND pin to ground.
2. Shunt Resistor: Connect a precision shunt resistor between the V+ and V- pins. The value of the resistor determines the measurable current range.
3. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C lines of your microcontroller. Use pull-up resistors (typically 4.7 kΩ) on both lines.
4. Address Configuration: Set the I2C address by connecting the ADDR pin to GND, VCC, or leaving it floating, as per the datasheet.
5. Alert Pin (Optional): Use the ALERT pin to monitor programmable thresholds for current, voltage, or power.

• Shunt Resistor Selection: Choose a resistor with low tolerance (e.g., 0.1% or better) to ensure accurate current measurements.
• Voltage Range: Ensure the bus voltage does not exceed 36V to avoid damaging the device.
• I2C Pull-Up Resistors: Properly size the pull-up resistors for the I2C lines based on the bus capacitance and speed.
• PCB Layout: Minimize noise by keeping the traces between the shunt resistor and the INA226 as short as possible.

Below is an example of how to interface the INA226 with an Arduino UNO to measure current and voltage:

#include <Wire.h>

// INA226 I2C address (default: 0x40)
#define INA226_ADDRESS 0x40

// INA226 register addresses
#define REG_CONFIG 0x00
#define REG_SHUNT_VOLTAGE 0x01
#define REG_BUS_VOLTAGE 0x02

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication for debugging

  // Configure the INA226 (default configuration)
  Wire.beginTransmission(INA226_ADDRESS);
  Wire.write(REG_CONFIG); // Point to the configuration register
  Wire.write(0x45);       // MSB of configuration (example value)
  Wire.write(0x27);       // LSB of configuration (example value)
  Wire.endTransmission();
}

void loop() {
  // Read bus voltage
  Wire.beginTransmission(INA226_ADDRESS);
  Wire.write(REG_BUS_VOLTAGE); // Point to the bus voltage register
  Wire.endTransmission();
  Wire.requestFrom(INA226_ADDRESS, 2); // Request 2 bytes
  uint16_t busVoltage = (Wire.read() << 8) | Wire.read();

  // Read shunt voltage
  Wire.beginTransmission(INA226_ADDRESS);
  Wire.write(REG_SHUNT_VOLTAGE); // Point to the shunt voltage register
  Wire.endTransmission();
  Wire.requestFrom(INA226_ADDRESS, 2); // Request 2 bytes
  uint16_t shuntVoltage = (Wire.read() << 8) | Wire.read();

  // Convert readings to meaningful values
  float busVoltage_V = busVoltage * 1.25 / 1000; // Convert to volts
  float shuntVoltage_mV = shuntVoltage * 2.5 / 1000; // Convert to millivolts

  // Print results
  Serial.print("Bus Voltage: ");
  Serial.print(busVoltage_V);
  Serial.println(" V");

  Serial.print("Shunt Voltage: ");
  Serial.print(shuntVoltage_mV);
  Serial.println(" mV");

  delay(1000); // Wait 1 second before the next reading
}

1. No I2C Communication:

   • Ensure the SDA and SCL lines are connected correctly.
   • Verify that pull-up resistors are present on the I2C lines.
   • Check the I2C address configuration (ADDR pin).

2. Incorrect Current or Voltage Readings:

   • Verify the shunt resistor value and its connections.
   • Ensure the bus voltage does not exceed the specified range.
   • Check for noise or interference in the shunt resistor traces.

3. Alert Pin Not Functioning:

   • Confirm that the alert thresholds are configured correctly in the INA226 registers.
   • Ensure the ALERT pin is connected to the microcontroller or monitoring circuit.

• Use an oscilloscope or logic analyzer to monitor the I2C communication.
• Double-check the wiring and connections against the datasheet.
• Test the INA226 with a known current and voltage source to validate its accuracy.

By following this documentation, you can effectively integrate the INA226 into your project for precise current, voltage, and power monitoring.
