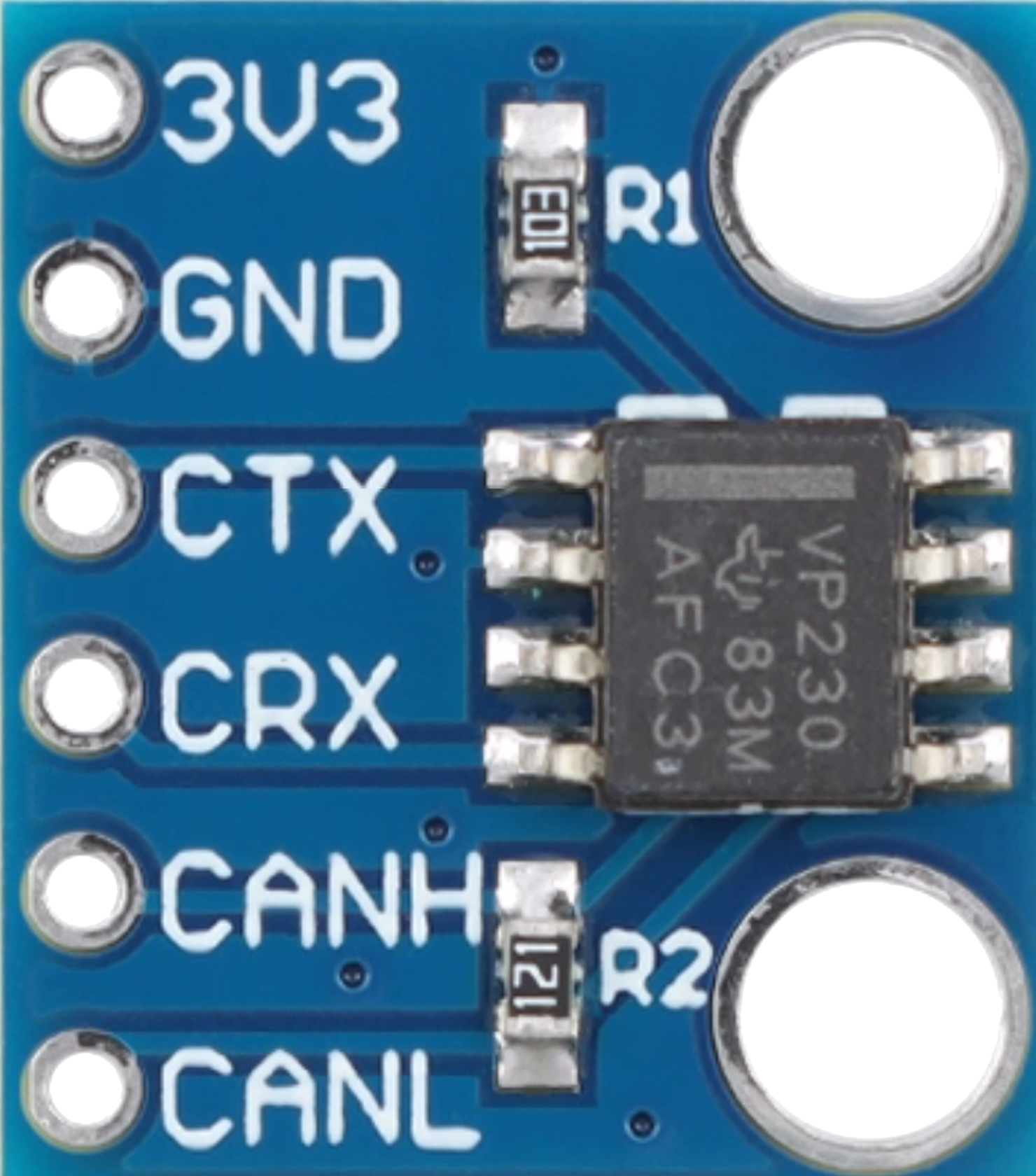

Image of SN65HVD230 CAN
Cirkit Designer LogoDesign with SN65HVD230 CAN in Cirkit Designer

Introduction

The SN65HVD230 is a high-speed CAN (Controller Area Network) transceiver designed to facilitate reliable communication between microcontrollers and CAN networks. Manufactured by Texas Instruments, this device supports data rates of up to 1 Mbps and is widely used in automotive, industrial, and embedded systems. Its robust design ensures high noise immunity and low power consumption, making it ideal for applications requiring efficient and reliable data transmission.
