How to Use esp8266: Examples, Pinouts, and Specs

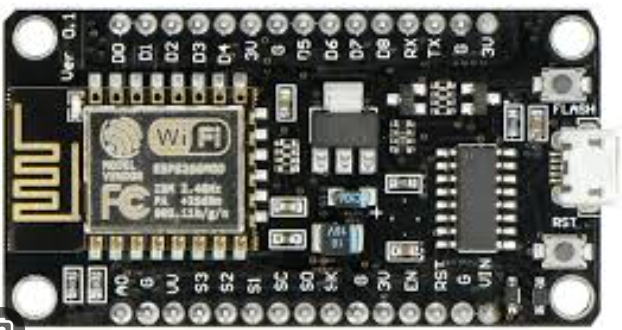

Image of esp8266
Cirkit Designer LogoDesign with esp8266 in Cirkit Designer

Introduction

The ESP8266 is a low-cost Wi-Fi microchip with a full TCP/IP stack and microcontroller capability. It is widely used in Internet of Things (IoT) applications due to its affordability, compact size, and versatility. The ESP8266 can operate as both a standalone microcontroller or as a Wi-Fi module for other microcontrollers, making it a popular choice for hobbyists and professionals alike.

Explore Projects Built with esp8266

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU Controlled Relay and Touch Sensor Interface with RGB LED Feedback
Image of NodeMcu: A project utilizing esp8266 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module and four TTP233 touch sensors, as well as a WS2812 RGB LED strip. The NodeMCU's GPIO pins control the relay channels and receive input signals from the touch sensors, while one of its pins drives the data input of the LED strip. The circuit is designed to control power loads via the relays and provide user input through touch sensors, with visual feedback or status indication through the RGB LED strip.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Relay Module with ESP8266 and MCP23017
Image of smart home: A project utilizing esp8266 in a practical application
This circuit is a WiFi-enabled relay control system using an ESP8266-01 module and an MCP23017 I/O expander. The ESP8266 communicates with the MCP23017 via I2C to control an 8-channel relay module based on the state of 8 rocker switches, allowing for remote and manual control of connected devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU
Image of Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU: A project utilizing esp8266 in a practical application
This circuit uses an ESP8266 NodeMCU to control a servo motor via Wi-Fi. The NodeMCU connects to a Wi-Fi network and listens for commands to adjust the servo motor's position, which is connected to pin D8. The servo motor is powered by the 3.3V and GND pins of the NodeMCU.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Smart Relay with IR and Temperature Sensing
Image of Home automation: A project utilizing esp8266 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module, a DHT11 temperature and humidity sensor, a VS1838B infrared receiver, and two pushbuttons. The ESP8266 controls the relay channels via its digital pins D0, D1, and D2, reads temperature and humidity data from the DHT11 sensor connected to pin D3, receives IR signals through the VS1838B connected to pin D5, and monitors the state of the pushbuttons connected to pins D6 and D7. The entire circuit is powered by a series connection of two 18650 Li-ion batteries, with common ground and power distribution to all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp8266

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of NodeMcu: A project utilizing esp8266 in a practical application
ESP8266 NodeMCU Controlled Relay and Touch Sensor Interface with RGB LED Feedback
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module and four TTP233 touch sensors, as well as a WS2812 RGB LED strip. The NodeMCU's GPIO pins control the relay channels and receive input signals from the touch sensors, while one of its pins drives the data input of the LED strip. The circuit is designed to control power loads via the relays and provide user input through touch sensors, with visual feedback or status indication through the RGB LED strip.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of smart home: A project utilizing esp8266 in a practical application
Wi-Fi Controlled Relay Module with ESP8266 and MCP23017
This circuit is a WiFi-enabled relay control system using an ESP8266-01 module and an MCP23017 I/O expander. The ESP8266 communicates with the MCP23017 via I2C to control an 8-channel relay module based on the state of 8 rocker switches, allowing for remote and manual control of connected devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU: A project utilizing esp8266 in a practical application
Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU
This circuit uses an ESP8266 NodeMCU to control a servo motor via Wi-Fi. The NodeMCU connects to a Wi-Fi network and listens for commands to adjust the servo motor's position, which is connected to pin D8. The servo motor is powered by the 3.3V and GND pins of the NodeMCU.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Home automation: A project utilizing esp8266 in a practical application
ESP8266 NodeMCU Controlled Smart Relay with IR and Temperature Sensing
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module, a DHT11 temperature and humidity sensor, a VS1838B infrared receiver, and two pushbuttons. The ESP8266 controls the relay channels via its digital pins D0, D1, and D2, reads temperature and humidity data from the DHT11 sensor connected to pin D3, receives IR signals through the VS1838B connected to pin D5, and monitors the state of the pushbuttons connected to pins D6 and D7. The entire circuit is powered by a series connection of two 18650 Li-ion batteries, with common ground and power distribution to all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation systems
  • Wireless sensor networks
  • Smart appliances
  • IoT prototyping and development
  • Remote data logging and monitoring
  • Wi-Fi-enabled robotics

Technical Specifications

The ESP8266 is available in various module forms, with the ESP-01 being one of the most common. Below are the key technical specifications:

General Specifications

  • Microcontroller: 32-bit Tensilica L106 running at 80 MHz (can be overclocked to 160 MHz)
  • Operating Voltage: 3.0V to 3.6V
  • Wi-Fi Standards: 802.11 b/g/n
  • Flash Memory: 512 KB to 4 MB (depending on the module)
  • GPIO Pins: Up to 17 (varies by module)
  • Communication Protocols: UART, SPI, I2C, PWM, ADC
  • Power Consumption:
    • Deep Sleep: ~10 µA
    • Idle: ~70 mA
    • Active: ~200 mA (transmitting)

Pin Configuration (ESP-01 Module)

The ESP-01 module has 8 pins. Below is the pinout and description:

Pin Name Description
1 GND Ground connection
2 TX UART Transmit pin (used for serial communication)
3 GPIO2 General-purpose I/O pin
4 CH_PD Chip enable (must be pulled high for the module to function)
5 GPIO0 General-purpose I/O pin (used for boot mode selection during programming)
6 RESET Reset pin (active low)
7 RX UART Receive pin (used for serial communication)
8 VCC Power supply (3.3V)

Usage Instructions

How to Use the ESP8266 in a Circuit

  1. Power Supply: Ensure the ESP8266 is powered with a stable 3.3V source. Do not exceed 3.6V, as this may damage the module.
  2. Connections:
    • Connect the GND pin to the ground of your circuit.
    • Connect the VCC pin to a 3.3V power source.
    • Use a voltage divider or level shifter if interfacing with 5V logic devices.
  3. Programming:
    • To program the ESP8266, connect it to a USB-to-serial adapter.
    • Pull the GPIO0 pin low (connect to GND) to enter programming mode.
    • Use software like the Arduino IDE or ESP8266-specific tools to upload code.

Important Considerations and Best Practices

  • Use a capacitor (e.g., 10 µF) across the VCC and GND pins to stabilize the power supply.
  • Avoid directly connecting the ESP8266 to 5V logic without a level shifter.
  • Ensure proper heat dissipation if the module is used in high-power applications.
  • Use an external antenna or modules with an integrated antenna for better Wi-Fi range.

Example: Connecting ESP8266 to Arduino UNO

Below is an example of how to use the ESP8266 with an Arduino UNO to send data to a web server.

Circuit Connections

  • ESP8266 VCC → 3.3V (from external regulator or Arduino 3.3V pin)
  • ESP8266 GND → GND
  • ESP8266 TX → Arduino RX (via voltage divider: 1kΩ and 2kΩ resistors)
  • ESP8266 RX → Arduino TX
  • ESP8266 CH_PD → 3.3V

Arduino Code

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial esp8266(2, 3); // RX = Pin 2, TX = Pin 3

void setup() {
  Serial.begin(9600); // Start serial communication with PC
  esp8266.begin(9600); // Start serial communication with ESP8266

  // Send AT command to test communication
  Serial.println("Sending AT command to ESP8266...");
  esp8266.println("AT");
}

void loop() {
  // Check if ESP8266 has sent any data
  if (esp8266.available()) {
    String response = esp8266.readString();
    Serial.println("ESP8266 Response: " + response);
  }

  // Check if user has sent data from the Serial Monitor
  if (Serial.available()) {
    String command = Serial.readString();
    esp8266.println(command); // Send command to ESP8266
  }
}

Notes:

  • Ensure the ESP8266 baud rate matches the one set in the code (9600 in this case).
  • Use a voltage divider on the TX pin of the Arduino to avoid damaging the ESP8266.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP8266 Not Responding to AT Commands:

    • Ensure the CH_PD pin is connected to 3.3V.
    • Verify the baud rate of the ESP8266 and match it in your code.
    • Check the power supply for stability.
  2. Wi-Fi Connection Fails:

    • Double-check the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  3. Module Overheating:

    • Use a proper heat sink or ensure adequate ventilation.
    • Check for excessive current draw due to incorrect wiring.
  4. Programming Mode Not Entering:

    • Ensure the GPIO0 pin is pulled low during power-up.
    • Verify the USB-to-serial adapter is functioning correctly.

FAQs

  • Can the ESP8266 operate on 5V? No, the ESP8266 operates on 3.3V. Use a voltage regulator or level shifter for 5V systems.

  • What is the maximum Wi-Fi range of the ESP8266? The range depends on the antenna and environment but typically reaches up to 100 meters in open space.

  • Can the ESP8266 be used without an external microcontroller? Yes, the ESP8266 has a built-in microcontroller and can run standalone programs.

  • How do I reset the ESP8266? Pull the RESET pin low momentarily to reset the module.

By following this documentation, you can effectively integrate the ESP8266 into your projects and troubleshoot common issues.
