How to Use 24 NeoPixel Ring: Examples, Pinouts, and Specs

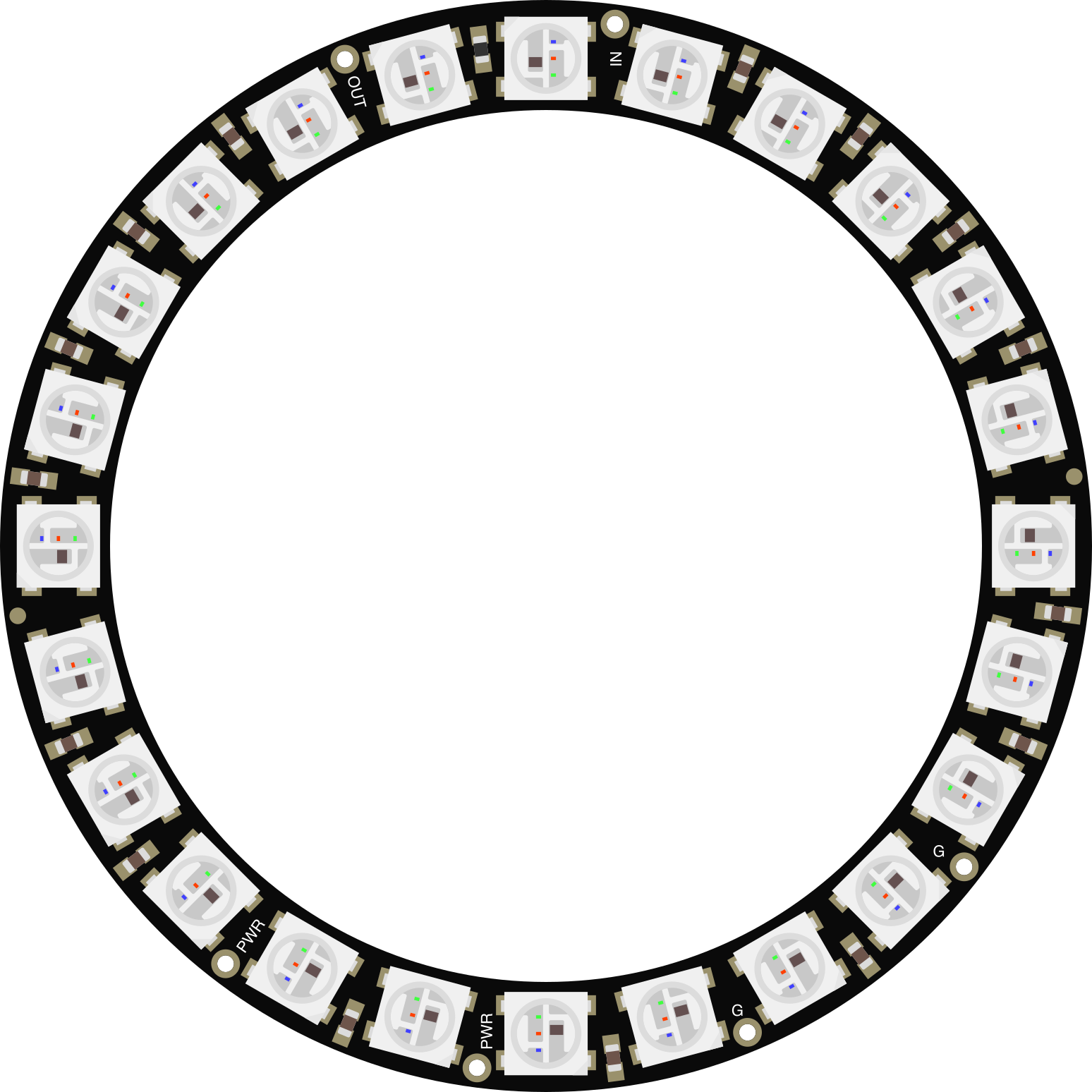

The 24 NeoPixel Ring (Manufacturer Part ID: 1586) by Adafruit is a circular array of 24 individually addressable RGB LEDs. Each LED in the ring can display a wide range of colors and brightness levels, making it ideal for creating dynamic lighting effects, animations, and visual displays. The NeoPixel Ring is based on WS2812B LEDs, which integrate RGB LEDs and a driver chip into a single package, allowing for precise control over each LED.

• Decorative lighting for art installations and home decor
• Wearable electronics and cosplay
• Interactive displays and signage
• Robotics and drones for visual feedback
• Educational projects and prototyping with microcontrollers like Arduino

Below are the key technical details of the 24 NeoPixel Ring:

The 24 NeoPixel Ring has three main pins for operation:

Note: The NeoPixel Ring has a "DO" (Data Out) pin, which can be used to daisy-chain multiple rings or other NeoPixel devices.

1. Power Supply: Connect the 5V pin of the NeoPixel Ring to a 5V power source. Ensure the power supply can provide sufficient current for the number of LEDs you plan to use.
2. Ground: Connect the GND pin to the ground of your power supply and microcontroller.
3. Data Input: Connect the DIN pin to a digital output pin on your microcontroller (e.g., Arduino UNO). Use a resistor (330-470Ω) in series with the data line to protect the LEDs.
4. Capacitor: Place a 1000µF capacitor (6.3V or higher) across the 5V and GND pins to stabilize the power supply.

Below is an example of how to control the 24 NeoPixel Ring using an Arduino UNO and the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the NeoPixel Ring
#define PIN 6

// Define the number of LEDs in the ring
#define NUM_LEDS 24

// Create a NeoPixel object
Adafruit_NeoPixel ring = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  ring.begin(); // Initialize the NeoPixel library
  ring.show();  // Turn off all LEDs initially
}

void loop() {
  // Example: Cycle through colors on the ring
  for (int i = 0; i < NUM_LEDS; i++) {
    ring.setPixelColor(i, ring.Color(255, 0, 0)); // Set LED to red
    ring.show(); // Update the ring to display the color
    delay(100);  // Wait 100ms before moving to the next LED
  }
}

• Power Supply: Use a regulated 5V power supply capable of providing at least 1.5A for full brightness operation.
• Data Line Protection: Always use a resistor (330-470Ω) in series with the data line to prevent voltage spikes.
• Capacitor: Add a 1000µF capacitor across the power supply to prevent flickering or instability.
• Heat Management: Avoid running all LEDs at full brightness for extended periods to prevent overheating.

1. LEDs not lighting up:

   • Check the power supply voltage and ensure it is within the 4.5V-5.5V range.
   • Verify that the GND pin is connected to the ground of the microcontroller.
   • Ensure the data pin is correctly connected to the microcontroller's digital output pin.

2. Flickering or unstable colors:

   • Add a 1000µF capacitor across the 5V and GND pins to stabilize the power supply.
   • Use a resistor (330-470Ω) in series with the data line to reduce noise.

3. Incorrect colors or no response:

   • Verify that the correct data pin is defined in your code.
   • Ensure the NeoPixel library is installed and properly included in your Arduino sketch.

4. Daisy-chaining issues:

   • Ensure the DO pin of the first ring is connected to the DIN pin of the next ring.
   • Use a short and stable connection between rings to avoid signal degradation.

Q: Can I power the NeoPixel Ring directly from an Arduino UNO?
A: While the Arduino UNO can provide 5V, it is not recommended to power the NeoPixel Ring directly from the Arduino's 5V pin, especially if all LEDs are used at high brightness. Use an external 5V power supply for reliable operation.

Q: How many NeoPixel Rings can I daisy-chain?
A: Theoretically, you can daisy-chain many NeoPixel Rings, but the microcontroller's memory and processing speed will limit the number of LEDs you can control. For an Arduino UNO, controlling up to 500 LEDs is feasible.

Q: Can I cut the NeoPixel Ring into smaller sections?
A: No, the 24 NeoPixel Ring is designed as a single unit and cannot be cut into smaller sections without damaging the circuit.

Q: Is the NeoPixel Ring waterproof?
A: No, the NeoPixel Ring is not waterproof. If you need to use it outdoors, consider enclosing it in a waterproof housing.

By following this documentation, you can effectively integrate the 24 NeoPixel Ring into your projects and create stunning lighting effects!
