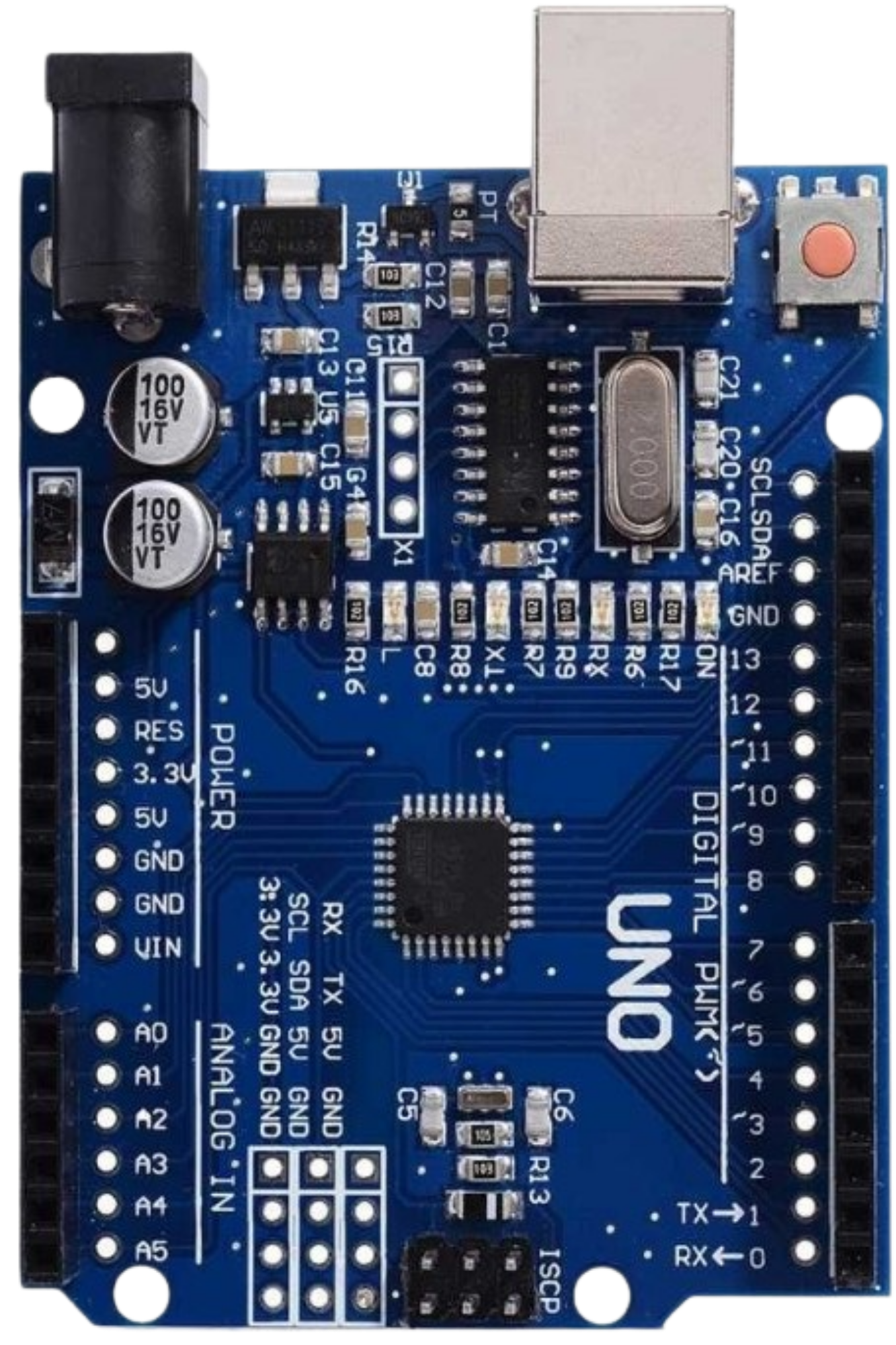

Image of Arduino Uno R3
Cirkit Designer LogoDesign with Arduino Uno R3 in Cirkit Designer

Introduction

The Arduino Uno R3, manufactured by Arduino, is a microcontroller board based on the ATmega328P microcontroller. It is one of the most popular and versatile development boards in the Arduino ecosystem, designed for prototyping and building interactive electronic projects. The board features 14 digital input/output pins, 6 analog inputs, a USB connection for programming, and a power jack for external power supply. Its simplicity and extensive community support make it an excellent choice for both beginners and experienced developers.
