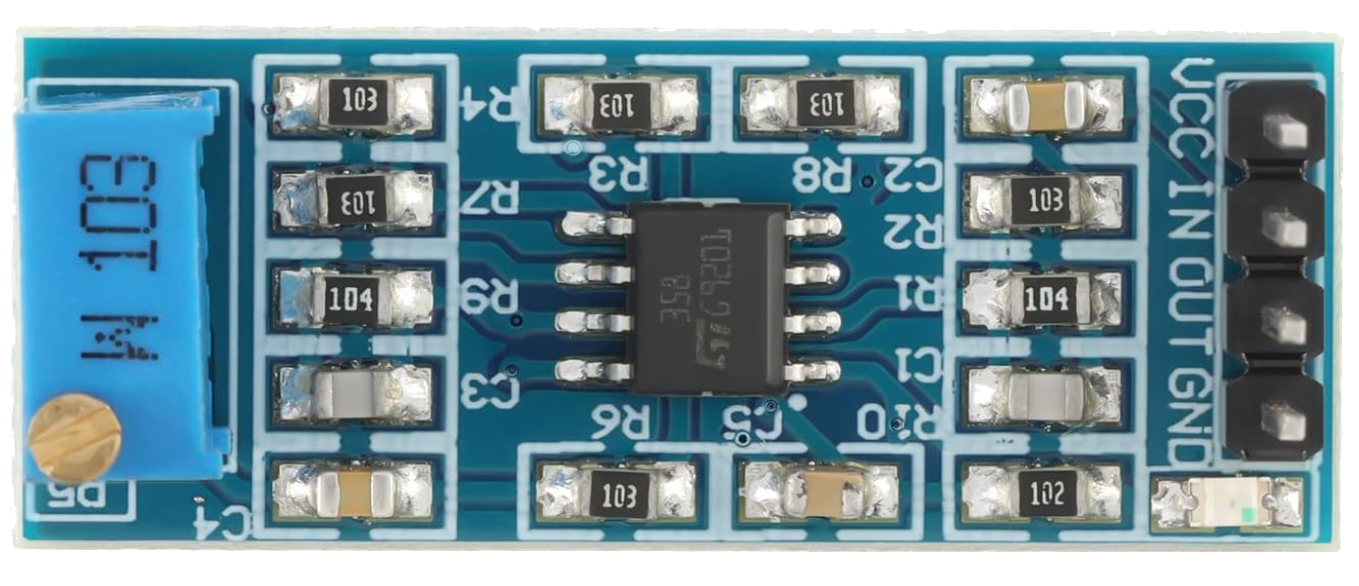

Image of LM388 with Gain
Cirkit Designer LogoDesign with LM388 with Gain in Cirkit Designer

Introduction

The LM388 is a high-performance operational amplifier designed for precision applications. It features a high gain bandwidth product and low noise characteristics, making it ideal for signal amplification in various electronic circuits. This component is widely used in audio amplifiers, instrumentation, and active filters due to its ability to provide stable and accurate signal amplification.

Explore Projects Built with LM388 with Gain

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
Image of Load Cell Circuit: A project utilizing LM388 with Gain in a practical application
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
741 Op-Amp Signal Amplification Circuit with Oscilloscope Monitoring
Image of Lab 2: Non-Inverting Op-Amp Schematic: A project utilizing LM388 with Gain in a practical application
This circuit is a non-inverting amplifier using a 741 operational amplifier. It amplifies the signal from a function generator, with the input and amplified output signals monitored by a mixed signal oscilloscope. The power supply provides the necessary voltage for the op-amp, and resistors set the gain of the amplifier.
Cirkit Designer LogoOpen Project in Cirkit Designer
LM386 Amplifier Circuit with 3.5mm Audio Input and Loudspeaker Output
Image of DIY Speaker: A project utilizing LM388 with Gain in a practical application
This circuit is an audio amplification system. It uses an LM386 audio amplifier module to amplify the audio signal from a 3.5mm audio jack input and drives a loudspeaker. The system is powered by a 9V battery, with the audio input connected to the left channel of the audio jack.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Weighing System with ESP8266 and HX711 - Battery Powered and Wi-Fi Enabled
Image of gggg: A project utilizing LM388 with Gain in a practical application
This circuit is a multi-sensor data acquisition system powered by a 18650 battery and managed by an ESP8266 microcontroller. It includes a load sensor interfaced with an HX711 module for weight measurement, an IR sensor, an ADXL345 accelerometer, a VL53L0X distance sensor, and a Neo 6M GPS module for location tracking. The system is designed for wireless data transmission and is supported by a TP4056 module for battery charging.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LM388 with Gain

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Load Cell Circuit: A project utilizing LM388 with Gain in a practical application
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lab 2: Non-Inverting Op-Amp Schematic: A project utilizing LM388 with Gain in a practical application
741 Op-Amp Signal Amplification Circuit with Oscilloscope Monitoring
This circuit is a non-inverting amplifier using a 741 operational amplifier. It amplifies the signal from a function generator, with the input and amplified output signals monitored by a mixed signal oscilloscope. The power supply provides the necessary voltage for the op-amp, and resistors set the gain of the amplifier.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DIY Speaker: A project utilizing LM388 with Gain in a practical application
LM386 Amplifier Circuit with 3.5mm Audio Input and Loudspeaker Output
This circuit is an audio amplification system. It uses an LM386 audio amplifier module to amplify the audio signal from a 3.5mm audio jack input and drives a loudspeaker. The system is powered by a 9V battery, with the audio input connected to the left channel of the audio jack.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gggg: A project utilizing LM388 with Gain in a practical application
Smart Weighing System with ESP8266 and HX711 - Battery Powered and Wi-Fi Enabled
This circuit is a multi-sensor data acquisition system powered by a 18650 battery and managed by an ESP8266 microcontroller. It includes a load sensor interfaced with an HX711 module for weight measurement, an IR sensor, an ADXL345 accelerometer, a VL53L0X distance sensor, and a Neo 6M GPS module for location tracking. The system is designed for wireless data transmission and is supported by a TP4056 module for battery charging.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Audio signal amplification
  • Active filters (low-pass, high-pass, band-pass)
  • Instrumentation amplifiers
  • Voltage followers (buffer circuits)
  • Precision signal processing in measurement systems

Technical Specifications

Below are the key technical details of the LM388 operational amplifier:

Parameter Value
Supply Voltage Range ±3V to ±18V
Input Offset Voltage 2 mV (typical)
Input Bias Current 50 nA (typical)
Gain Bandwidth Product 1 MHz
Slew Rate 0.5 V/µs
Output Voltage Swing ±13V (with ±15V supply)
Input Impedance 2 MΩ
Output Impedance 75 Ω
Operating Temperature Range 0°C to 70°C
Package Types DIP-8, SOIC-8

Pin Configuration and Descriptions

The LM388 is typically available in an 8-pin DIP or SOIC package. Below is the pinout and description:

Pin Number Pin Name Description
1 Offset Null Used for offset voltage adjustment (connect to pin 5 via a potentiometer).
2 Inverting Input Inverting input terminal of the op-amp.
3 Non-Inverting Input Non-inverting input terminal of the op-amp.
4 V- (Negative Supply) Negative power supply terminal.
5 Offset Null Used for offset voltage adjustment (connect to pin 1 via a potentiometer).
6 Output Output terminal of the op-amp.
7 V+ (Positive Supply) Positive power supply terminal.
8 NC (No Connection) Not connected internally.

Usage Instructions

How to Use the LM388 in a Circuit

  1. Power Supply: Connect the LM388 to a dual power supply (e.g., ±15V) or a single supply (e.g., 0V and +12V) depending on your application.
  2. Input Connections:
    • For inverting amplifier configurations, connect the input signal to the inverting input (pin 2) through a resistor.
    • For non-inverting configurations, connect the input signal to the non-inverting input (pin 3).
  3. Feedback Network: Use resistors or other components to create a feedback loop between the output (pin 6) and the inverting input (pin 2). This determines the gain of the amplifier.
  4. Offset Adjustment: If precise offset voltage adjustment is required, connect a 10kΩ potentiometer between pins 1 and 5, with the wiper connected to the negative supply (pin 4).
  5. Output Load: Connect the load to the output (pin 6). Ensure the load impedance is within the recommended range to avoid distortion or instability.

Important Considerations and Best Practices

  • Bypass Capacitors: Place decoupling capacitors (e.g., 0.1 µF ceramic and 10 µF electrolytic) close to the power supply pins (pins 4 and 7) to reduce noise and improve stability.
  • Gain Stability: Ensure the feedback network is designed to maintain stability, especially at high gains.
  • Thermal Management: Operate the LM388 within its specified temperature range to avoid thermal drift or damage.
  • Input Protection: Avoid applying voltages beyond the supply voltage range to the input pins to prevent damage.

Example: Connecting LM388 to an Arduino UNO

The LM388 can be used to amplify an analog signal before feeding it into the Arduino's ADC (Analog-to-Digital Converter). Below is an example circuit and Arduino code:

Circuit Description

  • Connect the LM388 in a non-inverting amplifier configuration.
  • The input signal is connected to pin 3 (non-inverting input).
  • A feedback resistor (Rf) and a resistor to ground (R1) are connected to set the gain:
    Gain = 1 + (Rf / R1).
  • The output (pin 6) is connected to an Arduino analog input pin (e.g., A0).

Arduino Code

// LM388 Amplifier Example with Arduino UNO
// Reads an amplified analog signal and prints the value to the Serial Monitor.

const int analogPin = A0; // Analog pin connected to LM388 output

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(analogPin); // Read the amplified signal
  float voltage = sensorValue * (5.0 / 1023.0); // Convert ADC value to voltage
  Serial.print("Amplified Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");
  delay(500); // Wait for 500 ms before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Check the power supply connections (pins 4 and 7).
    • Verify that the input signal is within the acceptable range.
    • Ensure the feedback network is properly connected.
  2. Distorted Output:

    • Verify that the load impedance is not too low.
    • Check for proper decoupling capacitors near the power supply pins.
    • Ensure the gain is not set too high, which could cause instability.
  3. High Noise Levels:

    • Use shielded cables for input signals.
    • Add bypass capacitors to reduce power supply noise.
  4. Offset Voltage Issues:

    • Adjust the offset null pins (pins 1 and 5) using a potentiometer.

FAQs

Q1: Can the LM388 operate with a single power supply?
A1: Yes, the LM388 can operate with a single supply. However, you may need to bias the input signal to a mid-supply voltage to ensure proper operation.

Q2: What is the maximum gain I can achieve with the LM388?
A2: Theoretically, the gain can be very high, but practical limitations such as stability and bandwidth must be considered. For most applications, gains up to 100 are common.

Q3: Can I use the LM388 for audio amplification?
A3: Yes, the LM388 is suitable for audio amplification due to its low noise and high gain bandwidth product.

Q4: How do I calculate the gain for a non-inverting amplifier configuration?
A4: The gain is calculated as:
Gain = 1 + (Rf / R1),
where Rf is the feedback resistor and R1 is the resistor connected to ground.

By following this documentation, you can effectively use the LM388 operational amplifier in your projects.
