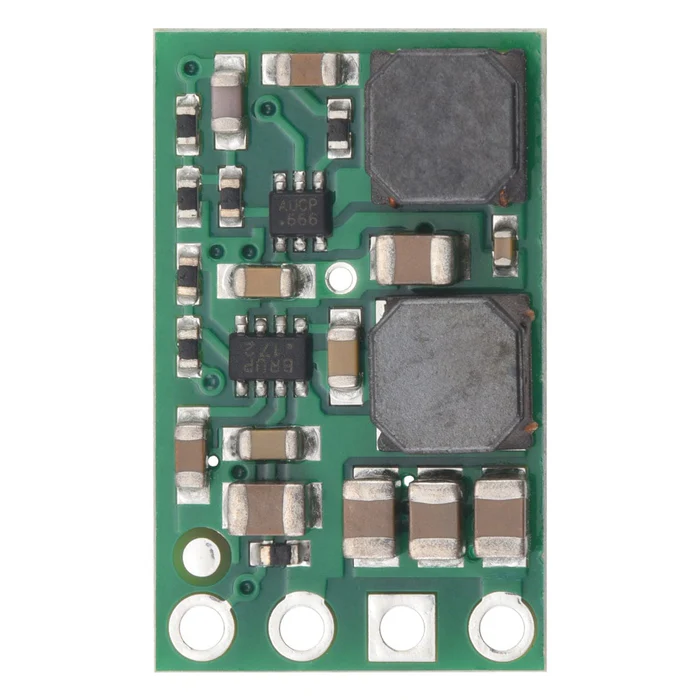

Image of Pololu 5V 1.5A regulator
Cirkit Designer LogoDesign with Pololu 5V 1.5A regulator in Cirkit Designer

Introduction

The Pololu 5V 1.5A regulator (part ID: S8V9F5) is a compact and efficient step-down (buck) voltage regulator designed to convert higher input voltages into a stable 5V output. It is capable of supplying up to 1.5A of continuous current, making it ideal for powering microcontrollers, sensors, and other electronic devices that require a reliable 5V power source. Its small form factor and high efficiency make it suitable for space-constrained and battery-powered applications.

Explore Projects Built with Pololu 5V 1.5A regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi Pico W Controlled Bipolar Stepper Motor Driver
Image of stepper motor: A project utilizing Pololu 5V 1.5A regulator in a practical application
This circuit is designed to control a bipolar stepper motor using a Raspberry Pi Pico W microcontroller and an A988 stepper motor driver. The 7805 voltage regulator takes input from a 12V power supply to provide a stable 5V output for the Raspberry Pi Pico W and the logic side of the A988 driver. Capacitors are used for voltage smoothing on the input and output of the voltage regulator, and the A988 driver's VMOT pin is directly connected to the 12V supply for motor power.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V to 5V Power Supply with LED Indicator and Push Switch
Image of Power Supply LVCO: A project utilizing Pololu 5V 1.5A regulator in a practical application
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control Circuit with Potentiometer and Transistors
Image of STROBE LIGHTS: A project utilizing Pololu 5V 1.5A regulator in a practical application
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered USB Charger with LED Indicator and DC Motor
Image of Copy of Hand Crank mobile charger : A project utilizing Pololu 5V 1.5A regulator in a practical application
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Pololu 5V 1.5A regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of stepper motor: A project utilizing Pololu 5V 1.5A regulator in a practical application
Raspberry Pi Pico W Controlled Bipolar Stepper Motor Driver
This circuit is designed to control a bipolar stepper motor using a Raspberry Pi Pico W microcontroller and an A988 stepper motor driver. The 7805 voltage regulator takes input from a 12V power supply to provide a stable 5V output for the Raspberry Pi Pico W and the logic side of the A988 driver. Capacitors are used for voltage smoothing on the input and output of the voltage regulator, and the A988 driver's VMOT pin is directly connected to the 12V supply for motor power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Supply LVCO: A project utilizing Pololu 5V 1.5A regulator in a practical application
12V to 5V Power Supply with LED Indicator and Push Switch
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of STROBE LIGHTS: A project utilizing Pololu 5V 1.5A regulator in a practical application
Battery-Powered LED Control Circuit with Potentiometer and Transistors
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Hand Crank mobile charger : A project utilizing Pololu 5V 1.5A regulator in a practical application
Battery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi, ESP32)
  • Supplying 5V to sensors, modules, and communication devices
  • Battery-powered systems requiring efficient voltage regulation
  • Robotics and embedded systems

Technical Specifications

The following table outlines the key technical details of the Pololu 5V 1.5A regulator:

Parameter Value
Input Voltage Range 5.5V to 36V
Output Voltage 5V ± 4%
Maximum Output Current 1.5A
Efficiency Up to 90% (depending on load)
Quiescent Current ~2mA
Operating Temperature -40°C to +85°C
Dimensions 0.6" × 0.4" × 0.1" (15 × 10 × 3 mm)
Weight 0.5g

Pin Configuration and Descriptions

The Pololu 5V 1.5A regulator has three pins for easy integration into circuits. The pinout is as follows:

Pin Name Description
1 VIN Input voltage (5.5V to 36V). Connect to power source.
2 GND Ground. Connect to the ground of the circuit.
3 VOUT Regulated 5V output. Connect to the load.

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage (VIN):
    Attach the VIN pin to a power source that provides a voltage between 5.5V and 36V. Ensure the input voltage is within this range to avoid damaging the regulator.

  2. Connect the Ground (GND):
    Connect the GND pin to the ground of your circuit. This is essential for proper operation.

  3. Connect the Output Voltage (VOUT):
    Attach the VOUT pin to the device or circuit that requires a 5V power supply. Ensure the load does not exceed 1.5A.

  4. Add Capacitors (Optional):
    For improved stability, you can add a capacitor (e.g., 10 µF) across the VIN and GND pins and another across the VOUT and GND pins.

Important Considerations and Best Practices

  • Heat Dissipation: While the regulator is efficient, it may generate heat under high loads. Ensure adequate ventilation or heat sinking if operating near the maximum current.
  • Input Voltage Range: Do not exceed the 36V input limit, as this can permanently damage the regulator.
  • Load Current: Ensure the connected load does not draw more than 1.5A to prevent overheating or shutdown.
  • Polarity Protection: The regulator does not have built-in reverse polarity protection. Double-check connections before powering the circuit.

Example: Using with an Arduino UNO

The Pololu 5V 1.5A regulator can be used to power an Arduino UNO from a higher voltage source, such as a 12V battery. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect the 12V battery's positive terminal to the VIN pin of the regulator.
  • Connect the battery's negative terminal to the GND pin of the regulator.
  • Connect the VOUT pin of the regulator to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the regulator to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the Pololu 5V regulator

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is below 5.5V or connections are incorrect.
    • Solution: Verify that the input voltage is within the 5.5V to 36V range and check all connections.
  2. Overheating:

    • Cause: Load current exceeds 1.5A or insufficient ventilation.
    • Solution: Reduce the load current or improve heat dissipation by adding a heatsink or increasing airflow.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input or output capacitors.
    • Solution: Add a 10 µF capacitor across VIN and GND, and another across VOUT and GND.
  4. Regulator Not Powering the Load:

    • Cause: Reverse polarity or damaged regulator.
    • Solution: Check polarity of connections and replace the regulator if necessary.

FAQs

Q: Can I use this regulator to power a Raspberry Pi?
A: The Pololu 5V 1.5A regulator can power a Raspberry Pi Zero or similar low-power models. However, for higher-power models like the Raspberry Pi 4, ensure the current draw does not exceed 1.5A.

Q: Is the regulator protected against short circuits?
A: Yes, the Pololu 5V 1.5A regulator has built-in short-circuit protection, but it is still recommended to avoid intentional short circuits.

Q: Can I use this regulator with a 24V power supply?
A: Yes, the regulator supports input voltages up to 36V, so a 24V power supply is within the acceptable range.

Q: Does the regulator support negative input voltages?
A: No, the regulator does not support negative input voltages. Ensure the input voltage is positive and within the specified range.
