How to Use ESP32 Huzzah Breakout: Examples, Pinouts, and Specs

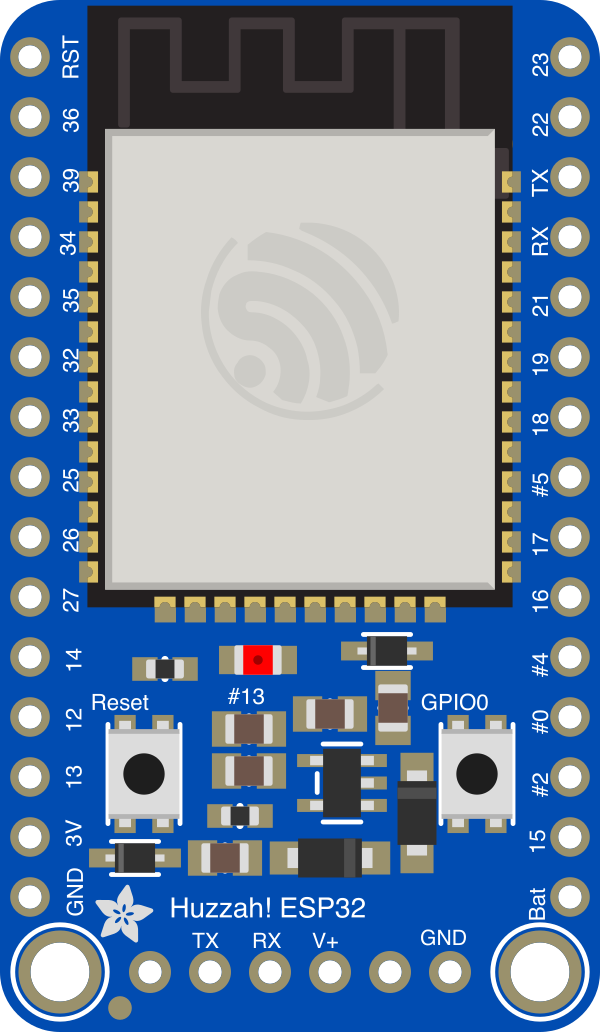

The ESP32 Huzzah Breakout (Adafruit Part ID: 4172) is a versatile microcontroller board designed by Adafruit. It features the powerful ESP32 chip, which integrates Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) projects, wireless communication, and rapid prototyping. The board is compact, easy to use, and compatible with a wide range of development environments, including Arduino IDE, MicroPython, and ESP-IDF.

• IoT devices and smart home automation
• Wireless sensor networks
• Bluetooth-enabled devices
• Prototyping and development of connected systems
• Data logging and remote monitoring

The ESP32 Huzzah Breakout is built around the ESP32-WROOM-32 module, offering robust performance and connectivity. Below are the key technical details:

The ESP32 Huzzah Breakout features a simple pinout for easy integration into your projects. Below is the pin configuration:

The ESP32 Huzzah Breakout is designed for ease of use in a variety of applications. Below are the steps to get started and important considerations:

1. Powering the Board:

   • Connect the board to your computer via a micro-USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin and connect GND to your circuit's ground.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board support package.
   • Select "Adafruit ESP32 Feather" as the board type in the Arduino IDE.
   • Connect the board to your computer and upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure that the peripherals operate at 3.3V logic levels to avoid damaging the board.

• Voltage Levels: The ESP32 operates at 3.3V. Avoid applying 5V directly to GPIO pins.
• Power Supply: Use a stable power source to ensure reliable operation, especially when using Wi-Fi or Bluetooth.
• Pin Multiplexing: Many pins on the ESP32 are multiplexed, meaning they can serve multiple functions. Refer to the ESP32 datasheet to configure pins correctly.
• Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid interference.

Below is an example of how to use the ESP32 Huzzah Breakout to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000); // Wait for serial monitor to initialize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  // Wait until the ESP32 connects to Wi-Fi
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

1. Board Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for the ESP32.

2. Wi-Fi Connection Fails:

   • Double-check the SSID and password.
   • Ensure the Wi-Fi network is within range and operational.

3. Code Upload Fails:

   • Verify that the correct board and COM port are selected in the Arduino IDE.
   • Press and hold the "BOOT" button on the board while uploading the code.

4. Unstable Operation:

   • Use a stable power source, especially when using Wi-Fi or Bluetooth.
   • Avoid using GPIO pins that are reserved for specific functions (e.g., GPIO0, GPIO2).

• Reset the Board: Press the "RESET" button to restart the ESP32 if it becomes unresponsive.
• Check Pin Connections: Ensure all connections are secure and correct.
• Consult Documentation: Refer to the Adafruit ESP32 Huzzah Breakout guide for additional details and examples.

By following this documentation, you can effectively integrate the ESP32 Huzzah Breakout into your projects and take full advantage of its powerful features.
