Introduction

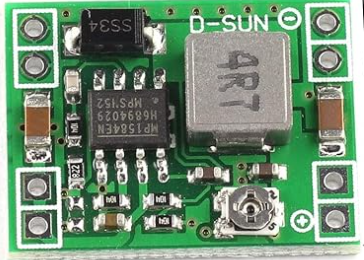

The Mini 3A Buck Converter (DZS MP0184) is a compact, high-efficiency DC-DC step-down voltage regulator. It is designed to convert a higher input voltage to a stable, lower output voltage while maintaining excellent efficiency, making it ideal for battery-powered devices, embedded systems, and other low-power applications. Its small size and robust design make it a popular choice for hobbyists, engineers, and developers working on space-constrained projects.
Common Applications and Use Cases
- Powering microcontrollers (e.g., Arduino, Raspberry Pi) from higher voltage sources
- Battery-powered devices requiring efficient voltage regulation
- LED drivers and lighting systems
- Robotics and IoT devices
- Portable electronics and DIY projects
Technical Specifications
The following table outlines the key technical details of the Mini 3A Buck Converter:
Pin Configuration and Descriptions
The Mini 3A Buck Converter has the following pinout:
Usage Instructions
How to Use the Mini 3A Buck Converter in a Circuit
Connect the Input Voltage (VIN):
- Attach the positive terminal of your power source to the VIN pin.
- Connect the negative terminal of your power source to the GND pin.
Set the Output Voltage (VOUT):
- Use the onboard potentiometer to adjust the output voltage.
- Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
- Use a multimeter to measure the output voltage at the VOUT pin while adjusting.
Connect the Load:
- Attach the positive terminal of your load to the VOUT pin.
- Connect the negative terminal of your load to the GND pin.
Verify Connections:
- Double-check all connections to ensure proper polarity and secure wiring.
Important Considerations and Best Practices
- Input Voltage Range: Ensure the input voltage is within the specified range (4.5V to 28V). Exceeding this range may damage the converter.
- Heat Dissipation: At higher currents (close to 3A), the converter may generate heat. Consider adding a heatsink or ensuring proper ventilation.
- Output Voltage Adjustment: Always measure the output voltage with a multimeter before connecting sensitive devices.
- Capacitor Requirements: For stable operation, ensure that input and output capacitors are connected as per the datasheet recommendations.
Example: Using the Mini 3A Buck Converter with an Arduino UNO
To power an Arduino UNO from a 12V source using the Mini 3A Buck Converter:
- Set the output voltage of the converter to 5V using the potentiometer.
- Connect the VIN pin of the converter to the 12V power source.
- Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
- Connect the GND pin of the converter to the GND pin of the Arduino UNO.
Here is an example Arduino sketch to blink an LED while powered by the Mini 3A Buck Converter:
// Blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Mini 3A Buck Converter is set to 5V output
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output pin
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Voltage:
- Cause: Incorrect wiring or insufficient input voltage.
- Solution: Verify that the input voltage is within the specified range and that all connections are secure.
Output Voltage Fluctuations:
- Cause: Insufficient input or output capacitors.
- Solution: Add capacitors as recommended in the datasheet (e.g., 10µF ceramic capacitors on input and output).
Overheating:
- Cause: High current draw or poor ventilation.
- Solution: Reduce the load current or add a heatsink to the converter.
Cannot Adjust Output Voltage:
- Cause: Faulty potentiometer or incorrect adjustment.
- Solution: Check the potentiometer for damage and ensure proper adjustment using a multimeter.
FAQs
Q: Can the Mini 3A Buck Converter be used with lithium-ion batteries?
A: Yes, it is suitable for lithium-ion batteries as long as the input voltage is within the 4.5V to 28V range.
Q: What is the maximum power output of the converter?
A: The maximum power output is approximately 60W (20V at 3A), but ensure proper heat dissipation at high power levels.
Q: Can I use this converter to power a Raspberry Pi?
A: Yes, set the output voltage to 5V and ensure the current draw does not exceed 3A.
Q: Is the converter protected against reverse polarity?
A: No, the Mini 3A Buck Converter does not have built-in reverse polarity protection. Always double-check your connections.
