How to Use servo aux: Examples, Pinouts, and Specs

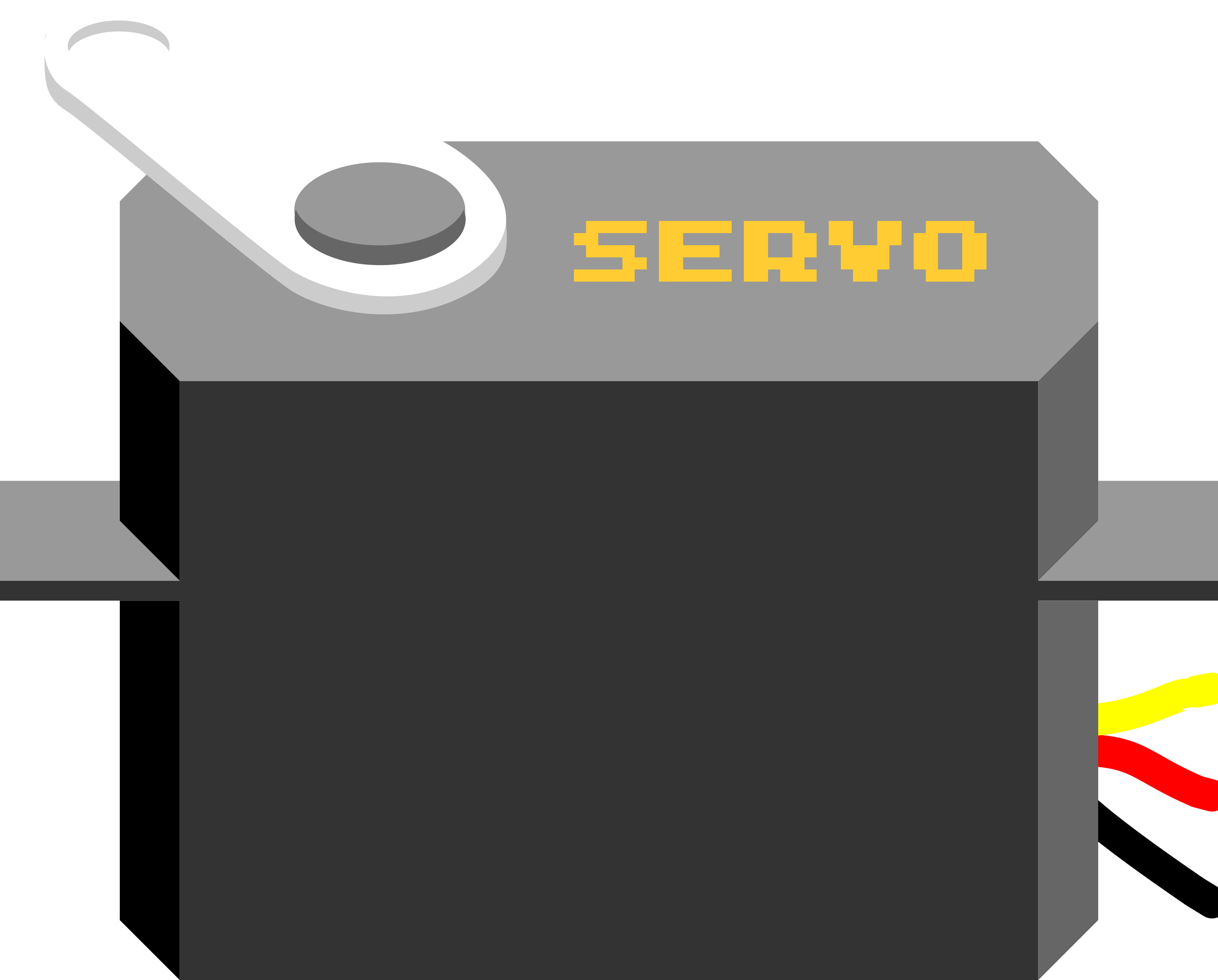

The Servo AUX is a versatile auxiliary servo motor designed and manufactured by Servo. It is widely used in robotics, automation, and remote-controlled systems due to its precision and ease of use. The Servo AUX is ideal for applications requiring controlled angular motion, such as robotic arms, pan-tilt mechanisms, and model vehicles.

This component is compatible with microcontrollers like Arduino, Raspberry Pi, and other control systems, making it a popular choice for hobbyists and professionals alike.

The Servo AUX is designed to deliver reliable performance under various operating conditions. Below are its key technical details:

• Manufacturer: Servo
• Part ID: Servo AUX
• Operating Voltage: 4.8V to 6.0V
• Operating Current: 100mA to 500mA (depending on load)
• Stall Current: ~1.5A at 6.0V
• Torque: 2.5 kg·cm at 4.8V, 3.0 kg·cm at 6.0V
• Operating Angle: 0° to 180°
• Signal Type: PWM (Pulse Width Modulation)
• PWM Frequency: 50 Hz
• Control Pulse Width: 500 µs (0°) to 2500 µs (180°)
• Connector Type: 3-pin female header (Signal, VCC, GND)
• Weight: 45g
• Dimensions: 40mm x 20mm x 40mm

The Servo AUX has a standard 3-pin connector. Below is the pin configuration:

1. Power Supply: Connect the VCC pin to a 5V or 6V power source and the GND pin to the ground of your circuit. Ensure the power supply can handle the current requirements of the servo.
2. Signal Input: Connect the Signal pin to a PWM-capable pin on your microcontroller (e.g., Arduino).
3. PWM Signal: Generate a PWM signal with a frequency of 50 Hz. The pulse width determines the servo's position:
   • 500 µs corresponds to 0°.
   • 1500 µs corresponds to 90° (center position).
   • 2500 µs corresponds to 180°.

• Power Supply: Use a separate power supply for the servo if it draws too much current, as this can cause voltage drops and affect other components in the circuit.
• Signal Stability: Ensure the PWM signal is stable to avoid jittery movements.
• Mechanical Limits: Do not force the servo beyond its physical limits (0° to 180°) to prevent damage.
• Heat Management: Avoid prolonged stall conditions, as this can cause overheating.

Below is an example of how to control the Servo AUX using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Note: Replace pin 9 with the PWM-capable pin you are using on your Arduino.

1. Servo Not Moving:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure the power supply meets the voltage and current requirements.

2. Jittery Movements:

   • Cause: Unstable PWM signal or electrical noise.
   • Solution: Use a decoupling capacitor near the servo's power pins and ensure the PWM signal is stable.

3. Overheating:

   • Cause: Prolonged stall condition or excessive load.
   • Solution: Reduce the load on the servo and avoid stalling it for extended periods.

4. Limited Range of Motion:

   • Cause: Incorrect PWM pulse width or mechanical obstruction.
   • Solution: Verify the PWM pulse width and ensure there are no physical obstructions.

• Can I use the Servo AUX with a 3.3V microcontroller?

  • Yes, but you must use a level shifter to convert the 3.3V signal to 5V for reliable operation.

• What is the maximum load the Servo AUX can handle?

  • The maximum torque is 3.0 kg·cm at 6.0V. Ensure the load does not exceed this limit.

• Can I rotate the servo beyond 180°?

  • No, the Servo AUX is designed for a range of 0° to 180°. For continuous rotation, consider using a continuous rotation servo.

• How do I power multiple servos in a project?

  • Use a dedicated power supply for the servos, and ensure it can handle the combined current draw of all servos.

By following this documentation, you can effectively integrate the Servo AUX into your projects and troubleshoot common issues.
