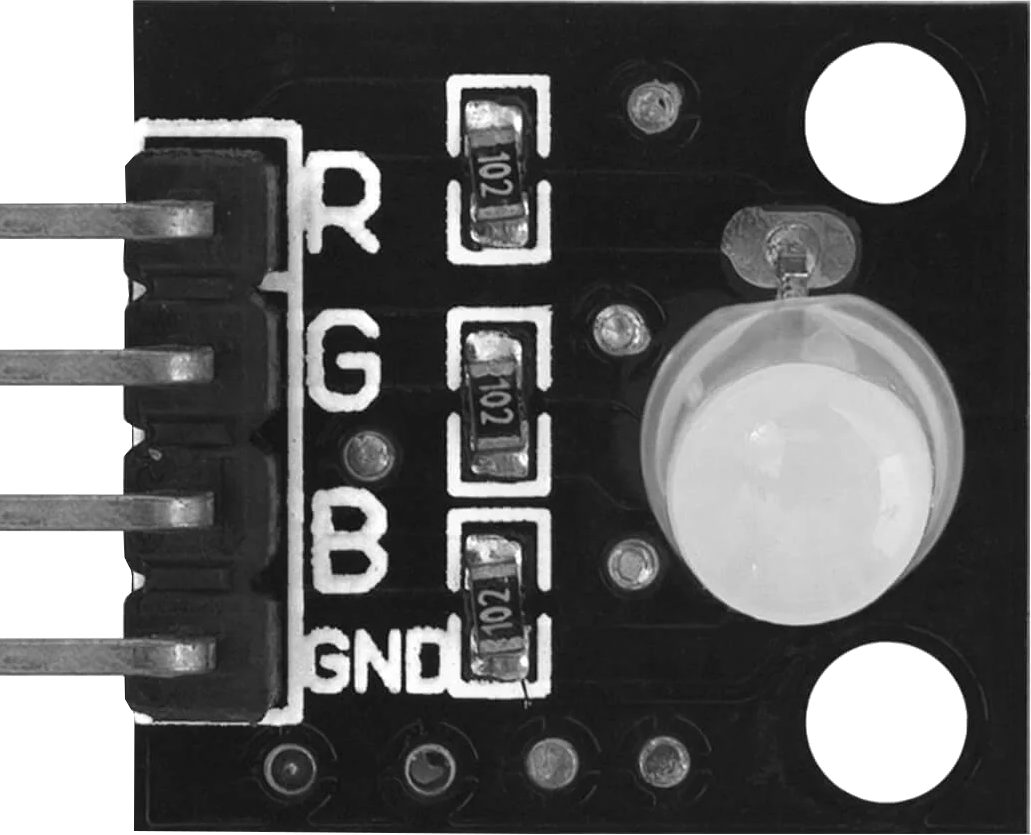

Image of Led module RGB
Cirkit Designer LogoDesign with Led module RGB in Cirkit Designer

Introduction

The AZDelivery KY-016 RGB LED module is a versatile light-emitting diode (LED) component capable of producing a wide range of colors by mixing red, green, and blue light. This module is ideal for applications requiring dynamic lighting effects, such as displays, decorative lighting, and status indicators. Its compact design and ease of use make it a popular choice for hobbyists, students, and professionals working on Arduino or other microcontroller-based projects.

Explore Projects Built with Led module RGB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Wi-Fi Controlled RGB LED and Octocoupler with Light Sensor using Wemos D1 Mini
Image of On Air Light Control: A project utilizing Led module RGB in a practical application
This circuit uses a Wemos D1 Mini microcontroller to control an RGB LED and an Octocoupler. The RGB LED displays different colors based on the state of the digital pins, while the Octocoupler is used for external control. A Photocell (LDR) connected to an analog pin adjusts the LED brightness based on ambient light levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered RGB LED Control with Pushbuttons
Image of EXP-12 E: A project utilizing Led module RGB in a practical application
This circuit consists of an RGB LED controlled by three pushbuttons, each corresponding to one of the LED's color channels (Red, Green, and Blue). The pushbuttons are powered by a MAHIR 1.mini power source, allowing the user to manually toggle each color channel of the RGB LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Enabled RGB and Red LED Controller with Light Sensing
Image of OnAirV0: A project utilizing Led module RGB in a practical application
This circuit features a Wemos D1 Mini microcontroller that likely controls an RGB LED and a red indicator LED, reads from a photocell (LDR), and interfaces with an octocoupler for electrical isolation. The circuit is USB-powered and is designed for light sensing and LED control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Interactive RGB LED Control Circuit with Pushbuttons
Image of rgb circuit: A project utilizing Led module RGB in a practical application
This circuit features a 9V battery connected to a voltage regulator, which likely steps down the voltage to a lower level suitable for driving an RGB LED. Three pushbuttons are connected to the output of the voltage regulator, each controlling one color channel (red, green, and blue) of the RGB LED. A resistor is connected in series with the common cathode of the RGB LED to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Led module RGB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of On Air Light Control: A project utilizing Led module RGB in a practical application
Wi-Fi Controlled RGB LED and Octocoupler with Light Sensor using Wemos D1 Mini
This circuit uses a Wemos D1 Mini microcontroller to control an RGB LED and an Octocoupler. The RGB LED displays different colors based on the state of the digital pins, while the Octocoupler is used for external control. A Photocell (LDR) connected to an analog pin adjusts the LED brightness based on ambient light levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP-12 E: A project utilizing Led module RGB in a practical application
Battery-Powered RGB LED Control with Pushbuttons
This circuit consists of an RGB LED controlled by three pushbuttons, each corresponding to one of the LED's color channels (Red, Green, and Blue). The pushbuttons are powered by a MAHIR 1.mini power source, allowing the user to manually toggle each color channel of the RGB LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OnAirV0: A project utilizing Led module RGB in a practical application
Wi-Fi Enabled RGB and Red LED Controller with Light Sensing
This circuit features a Wemos D1 Mini microcontroller that likely controls an RGB LED and a red indicator LED, reads from a photocell (LDR), and interfaces with an octocoupler for electrical isolation. The circuit is USB-powered and is designed for light sensing and LED control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rgb circuit: A project utilizing Led module RGB in a practical application
Interactive RGB LED Control Circuit with Pushbuttons
This circuit features a 9V battery connected to a voltage regulator, which likely steps down the voltage to a lower level suitable for driving an RGB LED. Three pushbuttons are connected to the output of the voltage regulator, each controlling one color channel (red, green, and blue) of the RGB LED. A resistor is connected in series with the common cathode of the RGB LED to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Manufacturer: AZDelivery
  • Part ID: KY-016
  • Operating Voltage: 3.3V to 5V
  • Current Consumption: ~20mA per color channel
  • LED Type: Common cathode RGB LED
  • Dimensions: 18mm x 15mm x 8mm
  • Color Control: PWM (Pulse Width Modulation)
  • Lifespan: ~50,000 hours

Pin Configuration and Descriptions

The KY-016 module has four pins, as described in the table below:

Pin Name Description
1 R (Red) Controls the red LED channel. Connect to a PWM-capable pin on the microcontroller.
2 G (Green) Controls the green LED channel. Connect to a PWM-capable pin on the microcontroller.
3 B (Blue) Controls the blue LED channel. Connect to a PWM-capable pin on the microcontroller.
4 GND (Ground) Common cathode pin. Connect to the ground of the power supply or microcontroller.

Usage Instructions

How to Use the KY-016 in a Circuit

  1. Wiring the Module:

    • Connect the GND pin of the module to the ground of your power supply or microcontroller.
    • Connect the R, G, and B pins to PWM-capable pins on your microcontroller (e.g., Arduino UNO pins 9, 10, and 11).
    • Optionally, use current-limiting resistors (220Ω to 330Ω) between the RGB pins and the microcontroller to protect the LEDs.
  2. Power Requirements:

    • The module operates at 3.3V to 5V, making it compatible with most microcontrollers.
    • Ensure the total current draw does not exceed the microcontroller's pin current limits.
  3. Controlling Colors:

    • Use PWM signals to adjust the brightness of each color channel (Red, Green, Blue).
    • By varying the duty cycle of each PWM signal, you can mix colors to produce a wide spectrum.

Example Code for Arduino UNO

The following code demonstrates how to control the KY-016 RGB LED module using an Arduino UNO:

// Define the pins connected to the RGB channels
const int redPin = 9;   // PWM pin for Red
const int greenPin = 10; // PWM pin for Green
const int bluePin = 11;  // PWM pin for Blue

void setup() {
  // Set RGB pins as output
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  // Example: Cycle through Red, Green, and Blue colors
  setColor(255, 0, 0);  // Red
  delay(1000);          // Wait 1 second
  setColor(0, 255, 0);  // Green
  delay(1000);          // Wait 1 second
  setColor(0, 0, 255);  // Blue
  delay(1000);          // Wait 1 second
}

// Function to set RGB color
void setColor(int redValue, int greenValue, int blueValue) {
  analogWrite(redPin, redValue);   // Set Red brightness
  analogWrite(greenPin, greenValue); // Set Green brightness
  analogWrite(bluePin, blueValue);  // Set Blue brightness
}

Important Considerations and Best Practices

  • Current Limiting: Always use appropriate resistors to limit current through the LEDs and prevent damage.
  • PWM Frequency: Ensure the PWM frequency is high enough to avoid visible flickering.
  • Heat Management: Prolonged use at high brightness may generate heat. Ensure adequate ventilation.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The LED does not light up:

    • Verify all connections, especially the GND pin.
    • Check if the microcontroller pins are configured as outputs.
    • Ensure the power supply voltage is within the specified range (3.3V to 5V).
  2. Incorrect or no color mixing:

    • Confirm that the PWM pins are correctly connected to the R, G, and B pins.
    • Check the PWM signal values in your code.
  3. Flickering or unstable colors:

    • Increase the PWM frequency to reduce visible flickering.
    • Ensure the power supply is stable and not overloaded.
  4. The LED is dim:

    • Verify the PWM duty cycle values. Higher values result in brighter colors.
    • Check for excessive resistance in the circuit.

FAQs

  • Can I use the KY-016 with a 3.3V microcontroller?
    Yes, the module is compatible with both 3.3V and 5V systems.

  • Do I need external resistors?
    While the module may work without resistors, it is recommended to use 220Ω to 330Ω resistors to protect the LEDs.

  • Can I control the module without PWM?
    Yes, but you will only be able to turn the LEDs fully on or off, limiting the color options.

By following this documentation, you can effectively integrate the AZDelivery KY-016 RGB LED module into your projects and create stunning lighting effects.
