How to Use MAX30102: Examples, Pinouts, and Specs

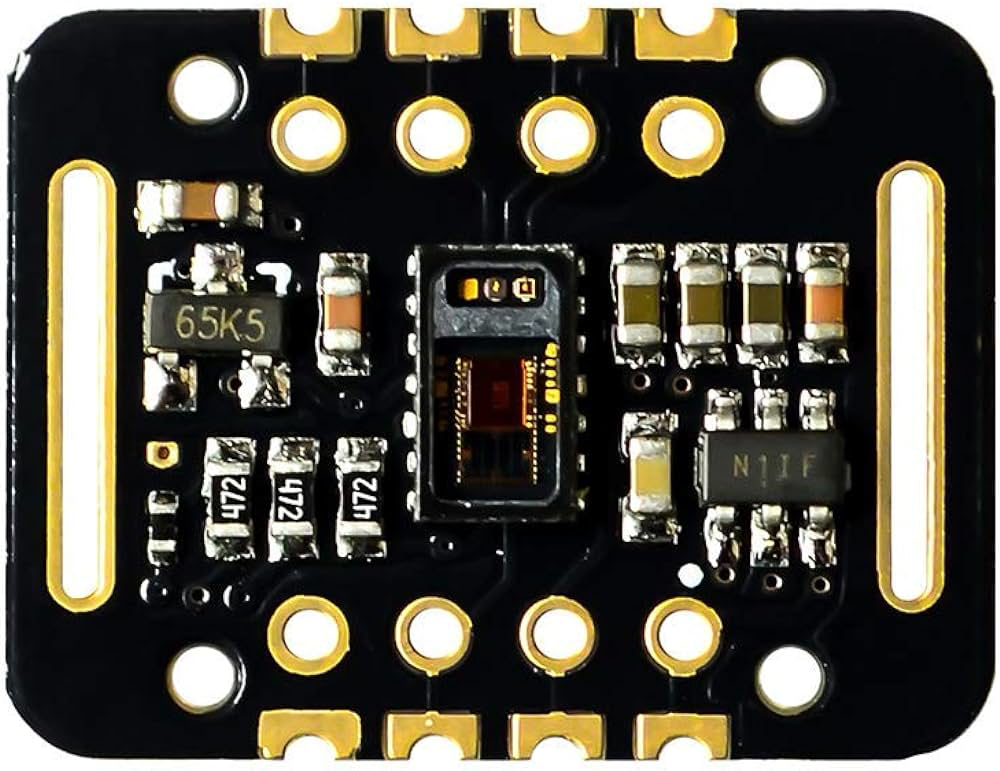

The MAX30102 is a pulse oximeter and heart-rate sensor module designed for non-invasive health monitoring. It uses photoplethysmography (PPG) technology to measure blood oxygen saturation (SpO2) and heart rate. The module integrates an LED driver, photodetector, and ambient light rejection circuitry, ensuring accurate and reliable measurements even in challenging lighting conditions.

• Wearable health monitoring devices (e.g., fitness trackers, smartwatches)
• Medical devices for SpO2 and heart rate monitoring
• Research and development in biomedical engineering
• IoT-based health monitoring systems
• Educational projects and prototyping

The MAX30102 is a compact and highly integrated sensor module. Below are its key technical details:

• Operating Voltage: 1.8V (core) and 3.3V (LED driver)
• Current Consumption: 600 µA (typical, during active measurement)
• Communication Interface: I²C (Inter-Integrated Circuit)
• Measurement Parameters: Heart rate and SpO2
• LED Wavelengths: Red (660 nm) and Infrared (880 nm)
• Sampling Rate: Programmable (up to 1000 samples per second)
• Operating Temperature Range: -40°C to +85°C
• Package: 14-pin optical module

The MAX30102 module has the following pinout:

The MAX30102 is straightforward to use in a circuit, especially with microcontrollers like the Arduino UNO. Below are the steps to integrate and use the sensor:

1. Connect the GND pin of the MAX30102 to the ground (GND) of the Arduino.
2. Connect the VIN pin to the 3.3V power supply pin of the Arduino.
3. Connect the SDA pin to the Arduino's A4 pin (I²C data line).
4. Connect the SCL pin to the Arduino's A5 pin (I²C clock line).
5. Optionally, connect the INT pin to a digital input pin on the Arduino for interrupt-based operation.

Below is an example Arduino sketch to read data from the MAX30102 using the Adafruit MAX30102 library:

#include <Wire.h>
#include "Adafruit_MAX30102.h"

// Create an instance of the MAX30102 sensor
Adafruit_MAX30102 max30102;

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial);    // Wait for the serial monitor to open

  Serial.println("Initializing MAX30102...");

  // Initialize the MAX30102 sensor
  if (!max30102.begin()) {
    Serial.println("MAX30102 not detected. Check connections.");
    while (1); // Halt execution if the sensor is not found
  }

  Serial.println("MAX30102 initialized successfully.");
}

void loop() {
  // Variables to store sensor readings
  int redValue, irValue;

  // Read red and IR values from the sensor
  if (max30102.check() == true) {
    redValue = max30102.getRed();
    irValue = max30102.getIR();

    // Print the readings to the serial monitor
    Serial.print("Red: ");
    Serial.print(redValue);
    Serial.print(" | IR: ");
    Serial.println(irValue);
  } else {
    Serial.println("No data available from MAX30102.");
  }

  delay(100); // Delay to avoid overwhelming the serial monitor
}

• Ensure the sensor is properly aligned with the skin for accurate readings.
• Avoid direct exposure to ambient light, as it may interfere with measurements.
• Use pull-up resistors (4.7kΩ recommended) on the SDA and SCL lines if not already included in the module.
• Keep the sampling rate and LED current settings within recommended limits to optimize power consumption and accuracy.

1. Sensor Not Detected

   • Ensure the I²C connections (SDA and SCL) are correct.
   • Verify that the sensor is powered with 3.3V on the VIN pin.
   • Check for loose or faulty wiring.

2. Inaccurate Readings

   • Ensure the sensor is in direct contact with the skin.
   • Minimize ambient light interference by covering the sensor during measurements.
   • Verify that the LED current settings are appropriate for the application.

3. No Data Output

   • Confirm that the interrupt pin (INT) is not required for your setup.
   • Check the I²C address of the sensor (default: 0x57) and ensure it matches the library configuration.

Q: Can the MAX30102 be powered with 5V?
A: No, the MAX30102 operates at 3.3V. Using 5V may damage the sensor.

Q: What is the maximum distance between the sensor and the microcontroller?
A: The I²C bus typically supports distances up to 1 meter. For longer distances, consider using I²C bus extenders.

Q: Can the MAX30102 measure SpO2 and heart rate simultaneously?
A: Yes, the MAX30102 can measure both parameters simultaneously, as it uses separate red and infrared LEDs for SpO2 and heart rate detection.

Q: Is the MAX30102 suitable for continuous monitoring?
A: Yes, the MAX30102 is designed for continuous monitoring applications, but ensure proper thermal management to avoid overheating.

By following this documentation, you can effectively integrate and use the MAX30102 in your projects for accurate health monitoring.
