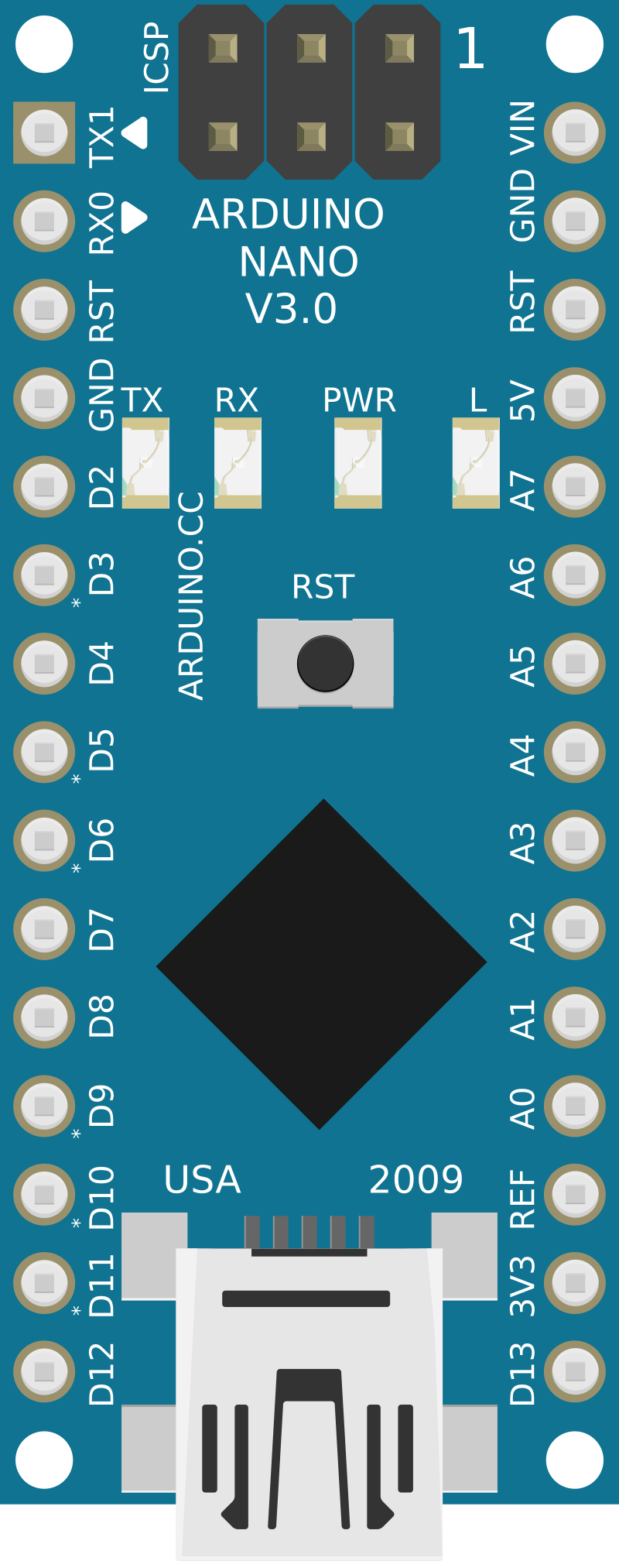

Image of Arduino Nano
Cirkit Designer LogoDesign with Arduino Nano in Cirkit Designer

Introduction

The Arduino Nano is a small, compact microcontroller board based on the ATmega328P. It is designed for easy integration into projects and prototyping, offering a versatile platform for both beginners and experienced developers. The Nano features digital and analog input/output pins, USB connectivity, and full compatibility with the Arduino IDE, making it an excellent choice for a wide range of applications.

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino Nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of OLED Display: A project utilizing Arduino Nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino Nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino Nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable electronics
  • Educational tools for learning embedded systems
  • Compact DIY electronics projects

Technical Specifications

The Arduino Nano is equipped with the following key technical features:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins. Below is the pin configuration:

Pin Type Description
VIN Power Input External power input (7-12V)
GND Ground Ground connection
5V Power Output Regulated 5V output
3.3V Power Output Regulated 3.3V output
A0-A7 Analog Input Analog input pins (10-bit resolution)
D0-D13 Digital I/O Digital input/output pins (D3, D5, D6, D9, D10, D11 support PWM)
RX (D0) Digital Input UART Receive (used for serial communication)
TX (D1) Digital Output UART Transmit (used for serial communication)
RST Reset Resets the microcontroller
ICSP Programming In-Circuit Serial Programming header for flashing firmware

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V) or the 5V pin (regulated 5V).
  2. Programming the Nano:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type in the IDE.
    • Choose the correct processor (ATmega328P or ATmega328P (Old Bootloader)) based on your Nano version.
    • Write your code in the IDE and upload it to the Nano via the USB connection.
  3. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals (e.g., from sensors).
    • Connect external modules (e.g., sensors, motors, displays) to the appropriate pins.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • Ensure proper grounding when connecting external components to avoid noise or erratic behavior.
  • When using the VIN pin, ensure the input voltage is within the recommended range (7-12V).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Nano is not recognized by the computer.

    • Solution: Ensure the correct USB driver is installed. For clones, install the CH340 driver if required.
  2. Problem: Code upload fails with an error.

    • Solution: Check that the correct board and processor are selected in the Arduino IDE. Ensure the correct COM port is selected.
  3. Problem: The Nano is not powering on.

    • Solution: Verify the power source. Check the USB cable or external power supply for faults.
  4. Problem: Analog readings are unstable.

    • Solution: Use proper decoupling capacitors near the analog input pins to reduce noise.

FAQs

  • Q: Can I power the Nano with a 3.7V LiPo battery?

    • A: Yes, but connect it to the 5V pin through a step-up converter to ensure proper operation.
  • Q: How do I reset the Nano?

    • A: Press the reset button on the board or momentarily connect the RST pin to GND.
  • Q: Can I use the Nano with a breadboard?

    • A: Yes, the Nano's pin layout is designed for breadboard compatibility.
  • Q: What is the difference between the Nano and the Uno?

    • A: The Nano is smaller and more compact, with the same core functionality as the Uno. It uses a Mini-B USB connector instead of a standard USB-B connector.
