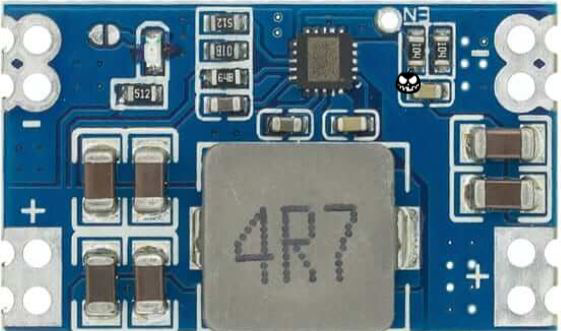

Image of Mạch Giảm Áp Mini560 5A Output 3.3V
Cirkit Designer LogoDesign with Mạch Giảm Áp Mini560 5A Output 3.3V in Cirkit Designer

Introduction

The Mạch Giảm Áp Mini560 5A Output 3.3V is a compact and efficient voltage regulator module designed to step down higher input voltages to a stable 3.3V output. With a maximum output current of 5A, this module is ideal for powering low-voltage devices such as microcontrollers, sensors, and communication modules. Its small size and high efficiency make it suitable for use in portable electronics, embedded systems, and DIY projects.

Explore Projects Built with Mạch Giảm Áp Mini560 5A Output 3.3V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-C3 Mini and MCP4725 DAC Controlled Analog Output Circuit
Image of pp: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
This circuit features an ESP32-C3 Mini microcontroller that interfaces with an Adafruit MCP4725 DAC via I2C for analog output, which is then fed into an OPA2333 operational amplifier. Power management is handled by a 5V step-down voltage regulator that receives power from a 2000mAh battery and supplies the ESP32-C3 and a 3.3V AMS1117 voltage regulator. Additionally, the circuit includes user input through buttons and electro pads, with debouncing provided by resistors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Powered Wi-Fi Controlled Robotic Car with OLED Display and Ultrasonic Sensor
Image of playbot: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
This circuit is a battery-powered system featuring an ESP32 microcontroller that controls an OLED display, a motor driver for two hobby motors, an ultrasonic sensor for distance measurement, and a DFPlayer Mini for audio output through a loudspeaker. The TP4056 module manages battery charging, and a step-up boost converter provides a stable 5V supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control with Pushbutton and Relay
Image of EXP.3 E: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
This circuit uses a pushbutton to control a 5V relay, which in turn powers a red LED. The MAHIR 1.mini module provides the necessary 3.7V power supply, and the relay switches the LED on and off based on the pushbutton input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Mạch Giảm Áp Mini560 5A Output 3.3V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of pp: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
ESP32-C3 Mini and MCP4725 DAC Controlled Analog Output Circuit
This circuit features an ESP32-C3 Mini microcontroller that interfaces with an Adafruit MCP4725 DAC via I2C for analog output, which is then fed into an OPA2333 operational amplifier. Power management is handled by a 5V step-down voltage regulator that receives power from a 2000mAh battery and supplies the ESP32-C3 and a 3.3V AMS1117 voltage regulator. Additionally, the circuit includes user input through buttons and electro pads, with debouncing provided by resistors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Breadboard: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of playbot: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
ESP32-Powered Wi-Fi Controlled Robotic Car with OLED Display and Ultrasonic Sensor
This circuit is a battery-powered system featuring an ESP32 microcontroller that controls an OLED display, a motor driver for two hobby motors, an ultrasonic sensor for distance measurement, and a DFPlayer Mini for audio output through a loudspeaker. The TP4056 module manages battery charging, and a step-up boost converter provides a stable 5V supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP.3 E: A project utilizing Mạch Giảm Áp Mini560 5A Output 3.3V in a practical application
Battery-Powered LED Control with Pushbutton and Relay
This circuit uses a pushbutton to control a 5V relay, which in turn powers a red LED. The MAHIR 1.mini module provides the necessary 3.7V power supply, and the relay switches the LED on and off based on the pushbutton input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering 3.3V microcontrollers (e.g., ESP8266, ESP32)
  • Supplying power to sensors and communication modules
  • Battery-powered devices and portable electronics
  • DIY electronics and prototyping projects

Technical Specifications

Below are the key technical details of the Mạch Giảm Áp Mini560:

Parameter Specification
Input Voltage Range 4.5V to 28V
Output Voltage 3.3V (fixed)
Maximum Output Current 5A
Efficiency Up to 96%
Switching Frequency 340 kHz
Operating Temperature -40°C to +85°C
Dimensions 22mm x 17mm x 4mm

Pin Configuration and Descriptions

The module has three main pins for input and output connections:

Pin Name Description
VIN Input voltage (4.5V to 28V)
GND Ground (common for input and output)
VOUT Regulated 3.3V output

Usage Instructions

How to Use the Component in a Circuit

  1. Connect Input Voltage:

    • Connect the positive terminal of your power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
    • Ensure the input voltage is within the range of 4.5V to 28V.
  2. Connect Output Load:

    • Connect the positive terminal of your load (e.g., microcontroller, sensor) to the VOUT pin.
    • Connect the ground terminal of your load to the GND pin.
  3. Verify Connections:

    • Double-check all connections to ensure proper polarity and avoid short circuits.
  4. Power On:

    • Turn on the power source and measure the output voltage to confirm it is 3.3V.

Important Considerations and Best Practices

  • Heat Dissipation: At high currents (close to 5A), the module may generate heat. Ensure proper ventilation or use a heatsink if necessary.
  • Input Voltage Range: Do not exceed the maximum input voltage of 28V to avoid damaging the module.
  • Load Current: Ensure the connected load does not draw more than 5A to prevent overheating or failure.
  • Capacitor Placement: For stable operation, consider adding input and output capacitors (e.g., 10µF to 100µF) close to the module.

Example: Using with Arduino UNO

The Mạch Giảm Áp Mini560 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 3.3V for auxiliary components. Below is an example code to read a sensor powered by the module:

// Example: Reading a sensor powered by Mạch Giảm Áp Mini560
// Ensure the sensor is connected to the 3.3V output of the module.

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify the input voltage is within the range of 4.5V to 28V and check all connections.
  2. Overheating:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink or fan.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input/output capacitors or unstable input voltage.
    • Solution: Add capacitors (e.g., 10µF to 100µF) near the input and output pins.
  4. Module Not Working:

    • Cause: Input voltage polarity reversed or module damaged.
    • Solution: Check polarity and replace the module if necessary.

FAQs

  • Q: Can this module output other voltages besides 3.3V?
    A: No, the output voltage is fixed at 3.3V.

  • Q: Can I use this module with a LiPo battery?
    A: Yes, as long as the battery voltage is within the input range (4.5V to 28V).

  • Q: Is this module suitable for powering a Raspberry Pi?
    A: No, the Raspberry Pi typically requires 5V, not 3.3V.

  • Q: Can I connect multiple loads to the output?
    A: Yes, as long as the total current does not exceed 5A.

This concludes the documentation for the Mạch Giảm Áp Mini560 5A Output 3.3V.
