Introduction

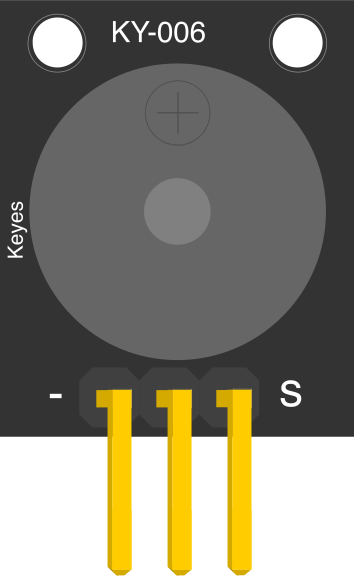

The Keyes KY-006 Passive Buzzer is an audio signaling device that requires an external audio signal to produce sound. Unlike an active buzzer, which generates sound with an internal oscillator, the passive buzzer relies on an external signal, such as a square wave, to vibrate its diaphragm and create sound waves. This makes it versatile for applications where precise control over sound frequency and duration is required.
