How to Use Arcade Button (pink): Examples, Pinouts, and Specs

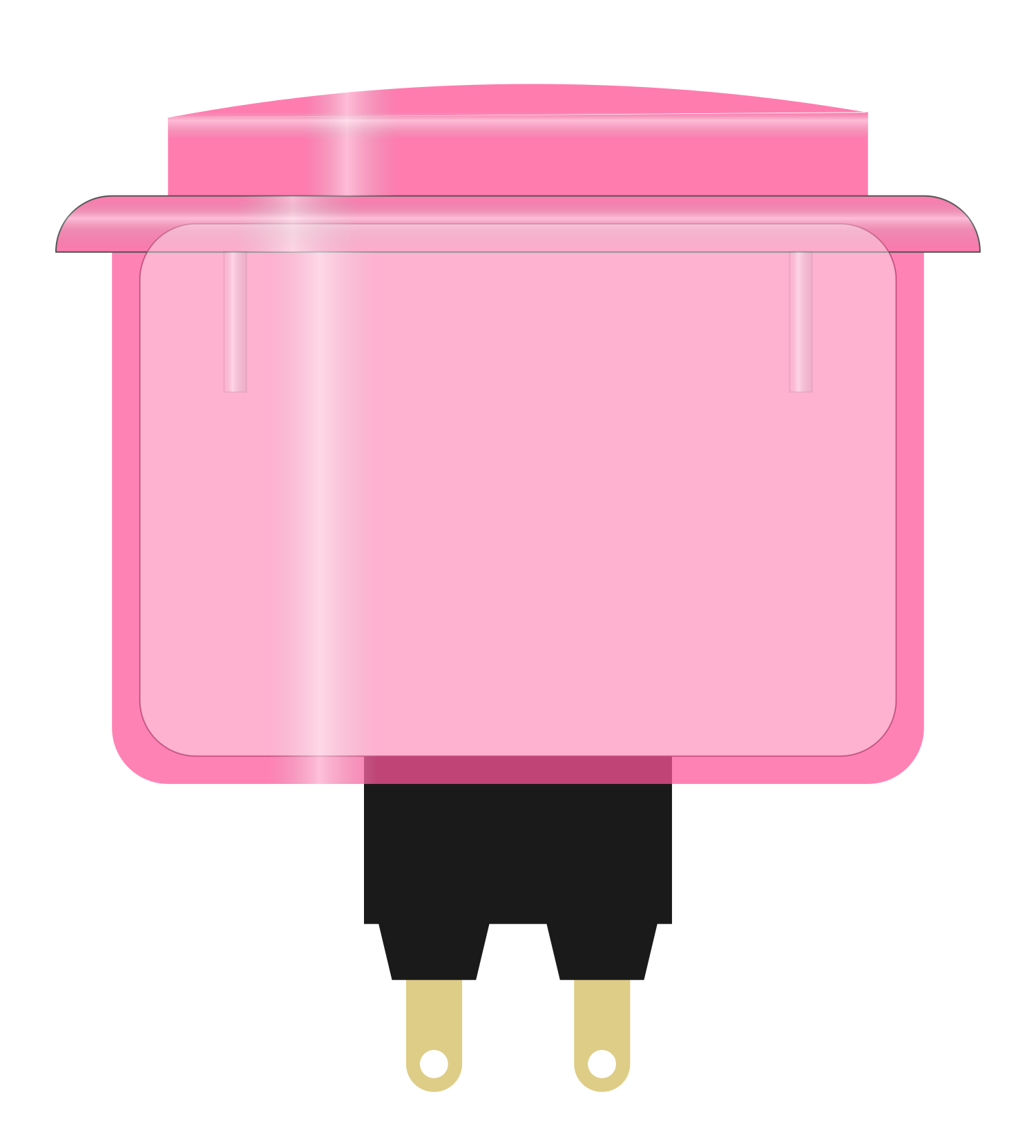

The Arcade Button (Pink) is a colorful push-button switch commonly used in arcade machines, gaming consoles, and DIY electronics projects. It is designed for easy activation with a tactile response, making it ideal for applications requiring quick and reliable input. The bright pink color enhances visibility and adds an aesthetic appeal to your project. This button is durable, easy to install, and compatible with a wide range of microcontrollers and circuits.

• Arcade gaming machines
• DIY gaming controllers
• Interactive displays and kiosks
• Custom electronics projects requiring user input

Below are the key technical details of the Arcade Button (Pink):

The Arcade Button typically has two terminals for connection:

1. Mounting the Button:

   • Drill a 28mm hole in your panel or enclosure.
   • Insert the button into the hole and secure it using the included mounting nut.

2. Wiring the Button:

   • Connect the COM terminal to the ground (GND) of your circuit.
   • Connect the NO terminal to the input pin of your microcontroller or circuit.

3. Using with a Microcontroller (e.g., Arduino UNO):

   • The button can be used as a digital input. When pressed, it completes the circuit and sends a signal to the microcontroller.

Below is an example of how to use the Arcade Button with an Arduino UNO:

// Define the pin connected to the Arcade Button
const int buttonPin = 2;  // Pin 2 is connected to the NO terminal of the button
const int ledPin = 13;    // Pin 13 is connected to an LED for feedback

// Variable to store the button state
int buttonState = 0;

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up resistor
  pinMode(ledPin, OUTPUT);         // Set LED pin as output
}

void loop() {
  // Read the state of the button
  buttonState = digitalRead(buttonPin);

  // If the button is pressed (LOW state due to pull-up resistor)
  if (buttonState == LOW) {
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

• Debouncing: Mechanical buttons like the Arcade Button may produce noise or multiple signals when pressed. Use software debouncing techniques or a capacitor to filter out unwanted signals.
• Voltage and Current Ratings: Ensure the button is not exposed to voltages or currents exceeding its rated values (12V DC, 1A max).
• Secure Connections: Use soldered connections or crimp connectors for reliable performance in high-vibration environments.

1. Button Not Responding:

   • Check the wiring connections to ensure the terminals are properly connected.
   • Verify that the microcontroller pin is configured correctly in the code.

2. Button Stuck or Hard to Press:

   • Inspect the button for physical obstructions or debris.
   • Ensure the button is mounted correctly without overtightening the nut.

3. Unstable or Multiple Signals When Pressed:

   • Implement software debouncing in your code.
   • Add a 0.1µF capacitor across the button terminals to reduce noise.

4. LED Not Turning On in Example Code:

   • Confirm that the LED is connected to the correct pin and oriented properly (long leg to VCC, short leg to GND).
   • Check the button wiring and ensure the pull-up resistor is enabled in the code.

Q: Can I use this button with a 5V circuit?
A: Yes, the Arcade Button is compatible with 5V circuits as long as the current does not exceed 1A.

Q: Is the button waterproof?
A: No, the Arcade Button is not waterproof. Avoid using it in environments with high moisture or water exposure.

Q: Can I use this button for AC applications?
A: No, the button is designed for DC circuits only. Using it with AC may damage the contacts or cause unsafe operation.

Q: How do I clean the button?
A: Use a soft, dry cloth to clean the button. Avoid using water or harsh chemicals.

By following this documentation, you can effectively integrate the Arcade Button (Pink) into your projects and troubleshoot any issues that arise.
